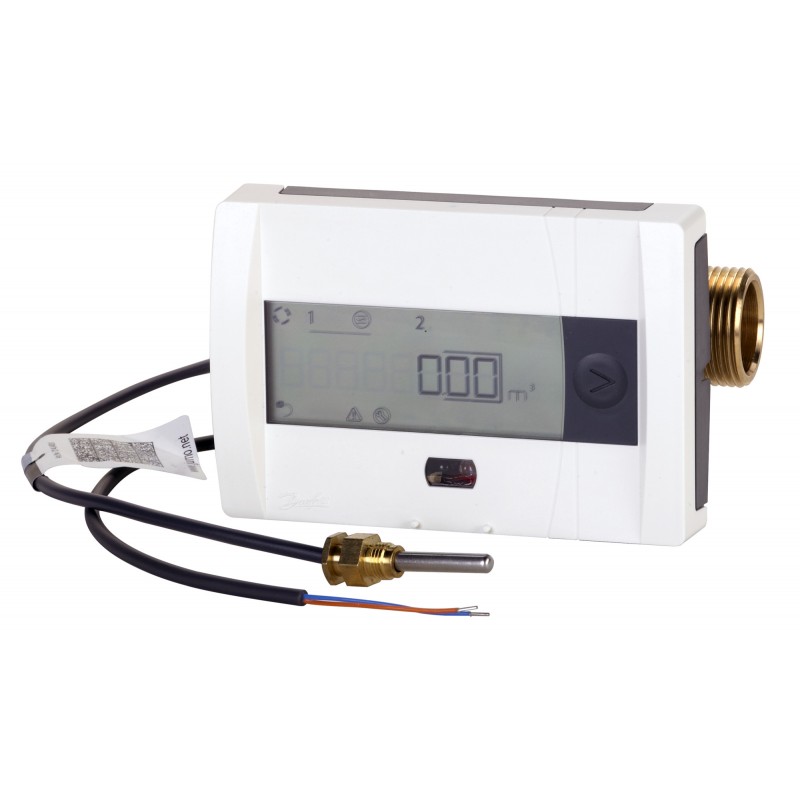

014U1306 DANFOSS HEATING DN32R, qp6.0,260, MBus, H, EU, кВтч
014U1306
DANFOSS HEATING
DN32R, qp6.0,260, MBus, H, EU, кВтч
Energy meters, SonoSelect 10, 32 mm, qp [m³/h]: 6.0, Heating and cooling, battery 2 x AA-cell, M-Bus, No interface module
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy meter for residential applications
Product details
| Gross weight | 1.817 Kg |
| Net weight | 1.73 Kg |
| Volume | 6.344 Liter |
| EAN | 5702425234903 |
| Gross weight | 1.817 Kg |
| Net weight | 1.73 Kg |
| Volume | 6.344 Liter |
| EAN | 5702425234903 |
| 1 Primary battery SUM weight Kg | 0.036 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 2 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 1.5 m |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 32 mm |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | M-Bus |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.012 m³/h |
| qi [m³/h] | 0.06 m³/h |
| qp [m³/h] | 6 m³/h |
| qs [m³/h] | 12 m³/h |
| qss [m³/h] | 12.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSelect 10 |
| Weight per battery | 18 g |
| 1 Primary battery SUM weight Kg | 0.036 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 2 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 1.5 m |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 32 mm |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | M-Bus |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.012 m³/h |
| qi [m³/h] | 0.06 m³/h |
| qp [m³/h] | 6 m³/h |
| qs [m³/h] | 12 m³/h |
| qss [m³/h] | 12.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSelect 10 |
| Weight per battery | 18 g |
Datasheet - PDF
