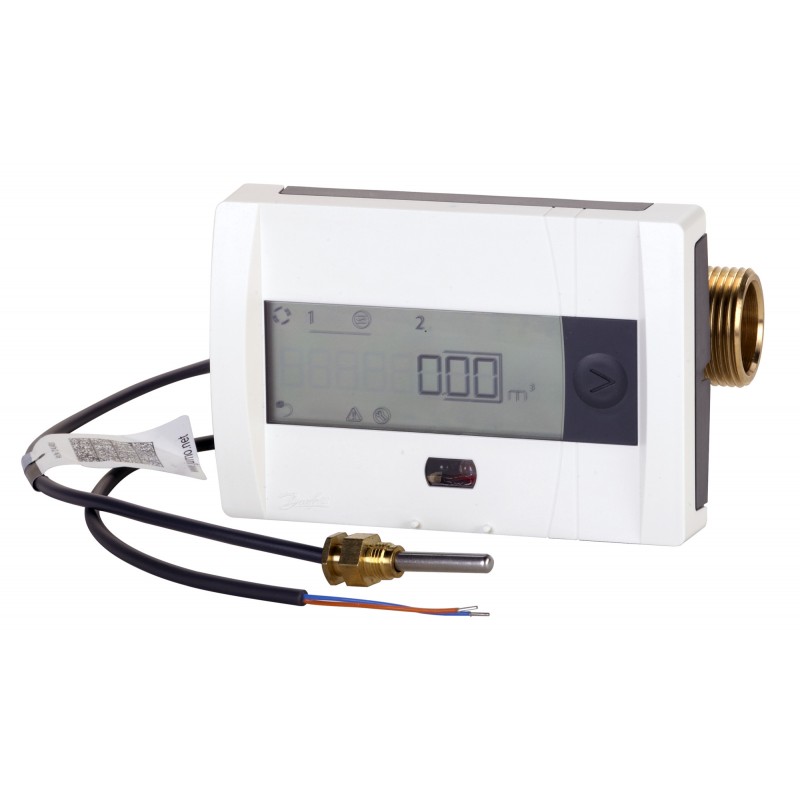

014U1300 DANFOSS HEATING DN15R, qp0.6,110, Mbus, H, EU, кВтч
014U1300
DANFOSS HEATING
DN15R, qp0.6,110, Mbus, H, EU, кВтч
Energy meters, SonoSelect 10, 15 mm, qp [m³/h]: 0.6, Heating and cooling, battery 2 x AA-cell, M-Bus, No interface module
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy meter for residential applications
Product details
| Gross weight | 0.992 Kg |
| Net weight | 0.752 Kg |
| Volume | 3.108 Liter |
| EAN | 5702425234514 |
| Gross weight | 0.992 Kg |
| Net weight | 0.752 Kg |
| Volume | 3.108 Liter |
| EAN | 5702425234514 |
| 1 Primary battery SUM weight Kg | 0.036 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 2 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 1.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 3/4 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 15 mm |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | M-Bus |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Kvs values [m³/h] | 3.46 m³/h |
| Length [mm] | 110 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.0012 m³/h |
| qi [m³/h] | 0.006 m³/h |
| qp [m³/h] | 0.6 m³/h |
| qs [m³/h] | 1.2 m³/h |
| qss [m³/h] | 1.32 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSelect 10 |
| Weight per battery | 18 g |
| 1 Primary battery SUM weight Kg | 0.036 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 2 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 1.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 3/4 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 15 mm |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | M-Bus |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Kvs values [m³/h] | 3.46 m³/h |
| Length [mm] | 110 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.0012 m³/h |
| qi [m³/h] | 0.006 m³/h |
| qp [m³/h] | 0.6 m³/h |
| qs [m³/h] | 1.2 m³/h |
| qss [m³/h] | 1.32 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSelect 10 |
| Weight per battery | 18 g |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
