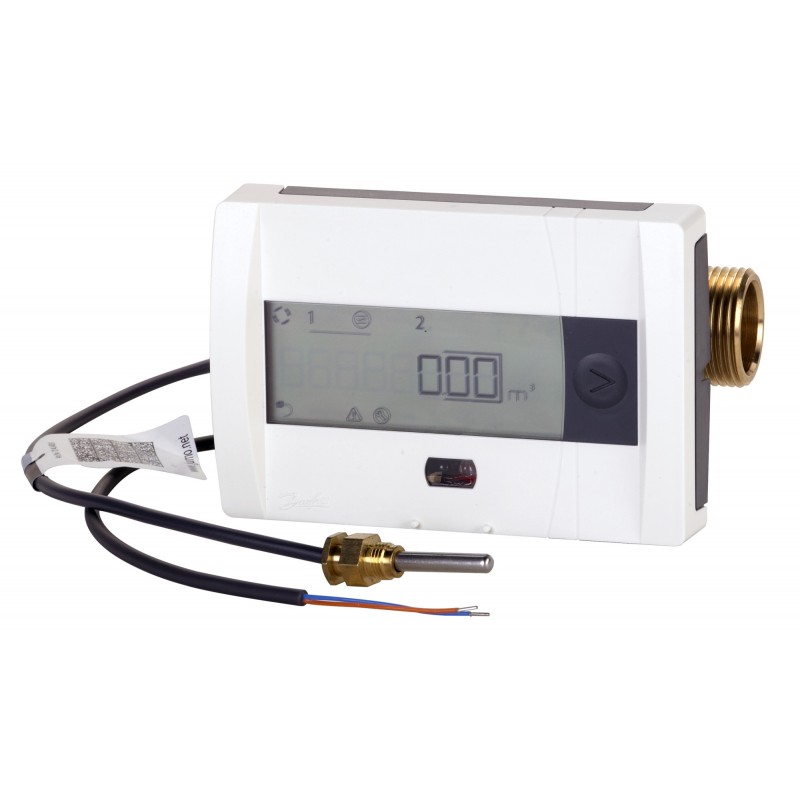

014U0264 DANFOSS HEATING DN25R, qp6.0,260, л, ЕС, кВтч
014U0264
DANFOSS HEATING
DN25R, qp6.0,260, л, ЕС, кВтч
Energy meters, SonoSafe 10, 25 mm, qp [m³/h]: 6.0, Heating, Battery 1 A-cell, No integrated communication, No interface module
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy meter for residential applications
Product details
| Gross weight | 1.734 Kg |
| Net weight | 1.403 Kg |
| Volume | 6.344 Liter |
| EAN | 5702425150302 |
| Gross weight | 1.734 Kg |
| Net weight | 1.403 Kg |
| Volume | 6.344 Liter |
| EAN | 5702425150302 |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 1 1/4 B |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 25 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.012 m³/h |
| qi [m³/h] | 0.06 m³/h |
| qp [m³/h] | 6 m³/h |
| qs [m³/h] | 12 m³/h |
| qss [m³/h] | 12.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 1 1/4 B |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 25 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.012 m³/h |
| qi [m³/h] | 0.06 m³/h |
| qp [m³/h] | 6 m³/h |
| qs [m³/h] | 12 m³/h |
| qss [m³/h] | 12.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
Datasheet - PDF
