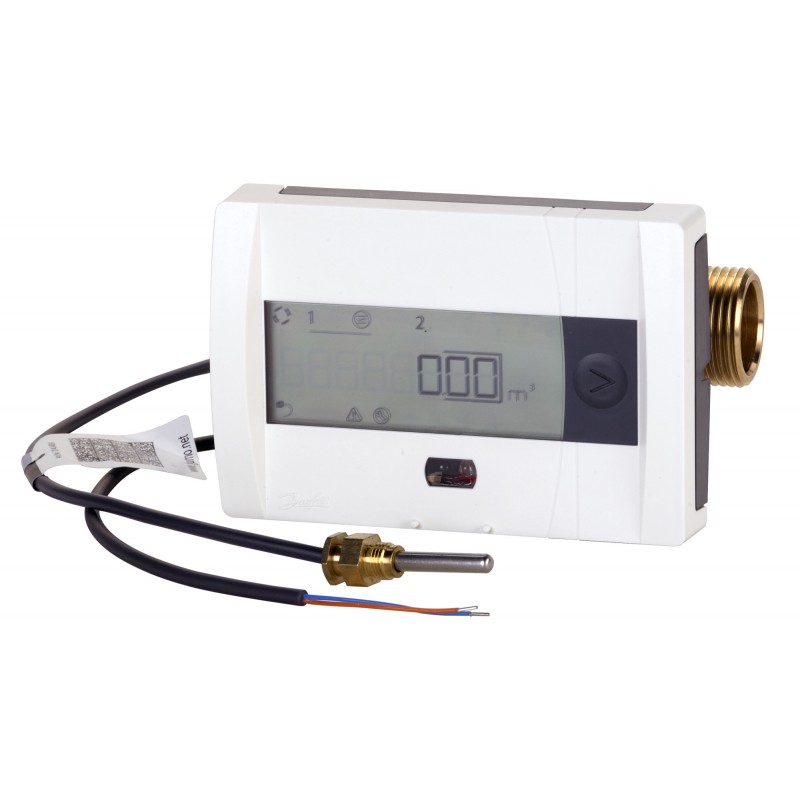

014U0237 DANFOSS HEATING DN15R, qp1.5,110, L, EU, кВтч, радио + PI
014U0237
DANFOSS HEATING
DN15R, qp1.5,110, L, EU, кВтч, радио + PI
Energy meters, SonoSafe 10, 15 mm, qp [m³/h]: 1.5, Heating, Battery 1 A-cell, No integrated communication, Radio OMS 868.95 MHz
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy meter for residential applications
Product details
| Gross weight | 0.938 Kg |
| Net weight | 0.733 Kg |
| Volume | 3.278 Liter |
| EAN | 5702425140051 |
| Gross weight | 0.938 Kg |
| Net weight | 0.733 Kg |
| Volume | 3.278 Liter |
| EAN | 5702425140051 |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| 2 Secondary battery SUM weight Kg | 0.01 |
| 2 Secondary battery weight Kg | 0.01 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 3/4 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 15 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | Radio OMS 868.95 MHz |
| IP protection class | IP65 |
| Length [mm] | 110 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.003 m³/h |
| qi [m³/h] | 0.015 m³/h |
| qp [m³/h] | 1.5 m³/h |
| qs [m³/h] | 3 m³/h |
| qss [m³/h] | 3.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Secondary battery Number of batteries | 1 |
| Secondary battery Type or name | 0,5 AA Lithium |
| Secondary battery Voltage | 3.6 V |
| Secondary battery Weight per battery | 10 g |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| 2 Secondary battery SUM weight Kg | 0.01 |
| 2 Secondary battery weight Kg | 0.01 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 3/4 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 15 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | Radio OMS 868.95 MHz |
| IP protection class | IP65 |
| Length [mm] | 110 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.003 m³/h |
| qi [m³/h] | 0.015 m³/h |
| qp [m³/h] | 1.5 m³/h |
| qs [m³/h] | 3 m³/h |
| qss [m³/h] | 3.3 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Secondary battery Number of batteries | 1 |
| Secondary battery Type or name | 0,5 AA Lithium |
| Secondary battery Voltage | 3.6 V |
| Secondary battery Weight per battery | 10 g |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
