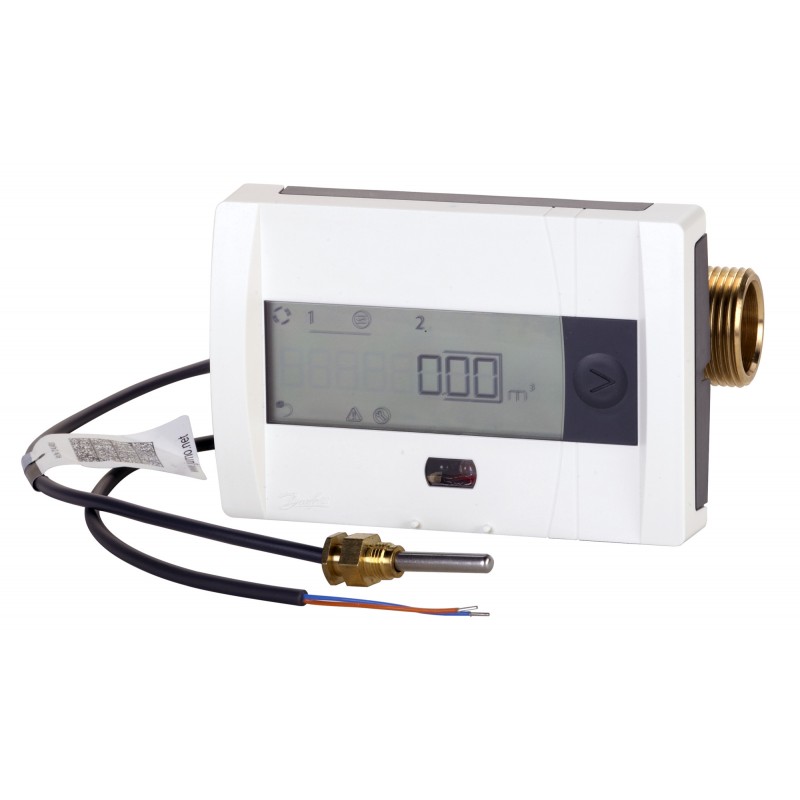

014U0021 DANFOSS HEATING DN25R, qp3,5,260, л, ЕС, кВтч
014U0021
DANFOSS HEATING
DN25R, qp3,5,260, л, ЕС, кВтч
Energy meters, SonoSafe 10, 25 mm, qp [m³/h]: 3.5, Heating, Battery 1 A-cell, No integrated communication, No interface module
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy meter for residential applications
Product details
| Gross weight | 1.744 Kg |
| Net weight | 1.398 Kg |
| Volume | 6.445 Liter |
| EAN | 5702425127342 |
| Gross weight | 1.744 Kg |
| Net weight | 1.398 Kg |
| Volume | 6.445 Liter |
| EAN | 5702425127342 |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable insulation material | PVC halogen free |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 25 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.007 m³/h |
| qi [m³/h] | 0.035 m³/h |
| qp [m³/h] | 3.5 m³/h |
| qs [m³/h] | 7 m³/h |
| qss [m³/h] | 7.7 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
| 1 Primary battery SUM weight Kg | 0.018 |
| 1 Primary battery weight Kg | 0.018 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 16 yr |
| Battery qty | 1 |
| Battery type or Name | AA Lithium |
| Cable insulation material | PVC halogen free |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 25 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | No integrated communication |
| Interface module slot 1 | No interface module |
| IP protection class | IP65 |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qc [m³/h] | 0.007 m³/h |
| qi [m³/h] | 0.035 m³/h |
| qp [m³/h] | 3.5 m³/h |
| qs [m³/h] | 7 m³/h |
| qss [m³/h] | 7.7 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c284e070-c802-4ced-837c-2aa2fcd3510f |
| SCIP dossier product name | Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder Ultrasonic Pathfinder |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 4 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Weight per battery | 18 g |
