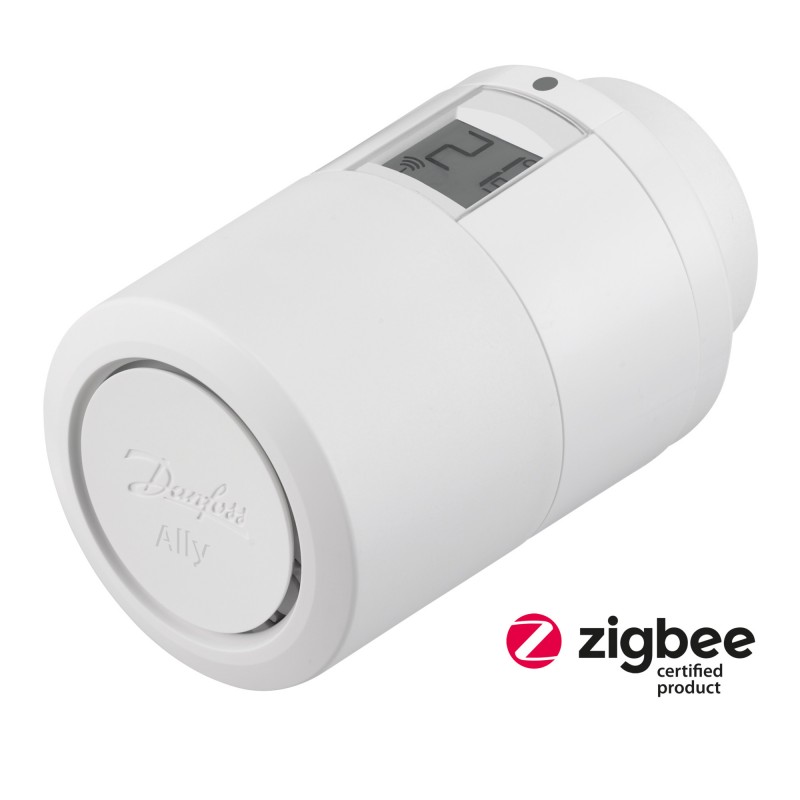

014G2420 DANFOSS HEATING Радиаторный термостат Danfoss Ally EU B2B
014G2420
DANFOSS HEATING
Радиаторный термостат Danfoss Ally EU B2B
Radiator thermostat, Danfoss Ally™, Adapter type: RA; M30, 2.4 GHz
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Electronic thermostatic radiator valve for the Danfoss Ally™ system
Product details
| Gross weight | 0.244 Kg |
| Net weight | 0.2 Kg |
| Volume | 0.487 Liter |
| EAN | 5702425245008 |
| Gross weight | 0.244 Kg |
| Net weight | 0.2 Kg |
| Volume | 0.487 Liter |
| EAN | 5702425245008 |
| 1 Primary battery SUM weight Kg | 0.046 |
| 1 Primary battery weight Kg | 0.023 |
| Actuator type | Electromechanical |
| Adapter type | RA M30 |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | UA.TR.089 CE |
| Approvals | CE EAC UKCA UA.TR.089 |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type or Name | Alkaline AA |
| Colour | RAL 9016 |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system |
| Display type | LCD with backlight |
| Heating control type | Radiator thermostat |
| In scope of WEEE and contain batteries | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | 30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product group | Radiator thermostat |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | No |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| Type | Danfoss Ally™ |
| Water temperature [°C] [Max] | 90 °C |
| Weight per battery | 23 g |
| Wireless standard | Zigbee |
| 1 Primary battery SUM weight Kg | 0.046 |
| 1 Primary battery weight Kg | 0.023 |
| Actuator type | Electromechanical |
| Adapter type | RA M30 |
| Ambient temperature [°C] [max] | 40 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Residential (pollution degree 2) |
| Approval | UA.TR.089 CE |
| Approvals | CE EAC UKCA UA.TR.089 |
| Ball pressure test temperature [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type or Name | Alkaline AA |
| Colour | RAL 9016 |
| Control | PID |
| Description | Electronic thermostatic radiator valve for the Danfoss Ally™ system |
| Display type | LCD with backlight |
| Heating control type | Radiator thermostat |
| In scope of WEEE and contain batteries | Yes |
| Low battery indicator | Yes |
| Noise level Heat dB(A) JIS C 9612 | 30 |
| Open-window function | Yes |
| Power consumption (standby) [mW] | 3 mW |
| Power consumption [W] | 1.2 W |
| Product group | Radiator thermostat |
| Product width [mm] | 55 mm |
| REACH Candidate List substances | No |
| Safety classification | Type 1 |
| SCIP dossier no. | a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c |
| SCIP dossier product name | Danfoss Ally eTRV - Electronic thermostatic radiator valve |
| Software class | A |
| Spindle movement | Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s) |
| Supply batteries | 2 x 1,5 V AA-Alkaline batteries |
| System integration | Danfoss Ally™ |
| Temperature measurement interval | 1 min |
| Temperature setting range [°C] [Max] | 35 °C |
| Temperature setting range [°C] [Min] | 5 °C |
| Thermostat IP Class | 20 |
| Transmission frequency [GHz] | 2.4 GHz |
| Type | Danfoss Ally™ |
| Water temperature [°C] [Max] | 90 °C |
| Weight per battery | 23 g |
| Wireless standard | Zigbee |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
