DANFOSS HEATING014G1001 DANFOSS HEATING Danfoss Eco

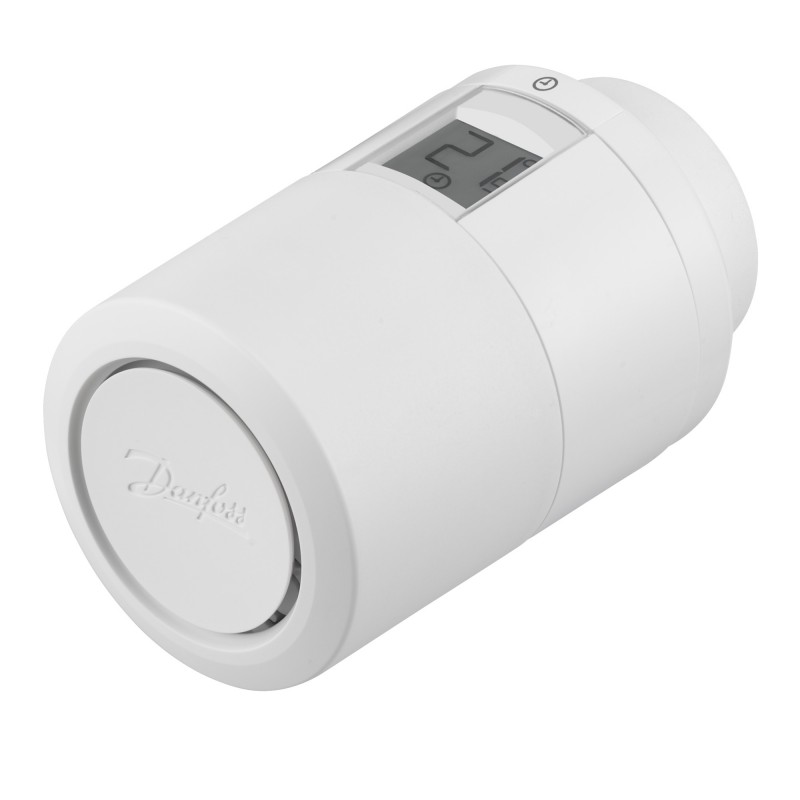

DANFOSS HEATING 014G1001 014G1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

014G1001 DANFOSS HEATING Danfoss Eco

Reference: 014G1001

Manufacturer: DANFOSS HEATING

Description:

Danfoss Eco
Radiator thermostat, Danfoss Eco™ Bluetooth, Adapter type: RA; M30

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 56,07 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Stand-alone electronic thermostatic radiator valve for non-public area installation., Bluetooth

Product details

Gross weight0.242 Kilogram
Net weight0.23 Kilogram
Volume0.498 Liter
EAN5702425143458
TypeDanfoss Eco™ Bluetooth
Product groupRadiator thermostat
Gross weight0.242 Kilogram
Net weight0.23 Kilogram
Volume0.498 Liter
EAN5702425143458
TypeDanfoss Eco™ Bluetooth
Product groupRadiator thermostat

1 Primary battery SUM weight Kg0.044
1 Primary battery weight Kg0.022
Actuator typeElectromechanical
Adapter typeM30
RA
Ambient temperature [°C] [max]40 °C
Ambient temperature [°C] [min]0 °C
ApplicationResidential (pollution degree 2)
ApprovalCE
Bluetooth
ERC
EAC
Battery lifetime [Years]2.5 yr
Battery qty2
Battery type or NameAlkaline AA (LR6/ZR6)
CE evaluatedYes
China RoHS complianceOut of scope
ColourRAL 9016
Contains batteriesYes
ControlPID
DescriptionStand-alone electronic thermostatic radiator valve for non-public area installation.
Display typeLCD with backlight
EEE category5 small equipment (any external dimension < 50 cm)
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
Heating control typeRadiator thermostat
In scope of WEEEYes
Low battery indicatorYes
Noise level Heat dB(A) JIS C 9612<30
Open-window functionYes
Power consumption (standby) [mW]3 mW
Power consumption [W]1.2 W
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Diboron trioxide (B2O3, CAS no. 1303-86-2)
Safety classificationType 1
SCIP dossier no.a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c
SCIP dossier product nameDanfoss Ally eTRV - Electronic thermostatic radiator valve
Software classA
Spindle movementLinear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)
Supply batteries2 x 1,5 V AA-Alkaline batteries
System integrationStand-alone
Temperature measurement interval1 min
Temperature setting range [°C] [Max]28 °C
Temperature setting range [°C] [Min]4 °C
ThermostatProgrammable electronic radiator valve controller
Thermostat IP Class20
Transmission frequency [GHz]2.4 GHz
Transmission power [mW] [Max]2.1 mW
Transport temperature [°C] [Max]65 °C
Transport temperature [°C] [Min]-20 °C
Water temperature [°C] [Max]90 °C
Weight per battery23 g
Wireless standardBluetooth
1 Primary battery SUM weight Kg0.044
1 Primary battery weight Kg0.022
Actuator typeElectromechanical
Adapter typeM30
RA
Ambient temperature [°C] [max]40 °C
Ambient temperature [°C] [min]0 °C
ApplicationResidential (pollution degree 2)
ApprovalCE
Bluetooth
ERC
EAC
Battery lifetime [Years]2.5 yr
Battery qty2
Battery type or NameAlkaline AA (LR6/ZR6)
CE evaluatedYes
China RoHS complianceOut of scope
ColourRAL 9016
Contains batteriesYes
ControlPID
DescriptionStand-alone electronic thermostatic radiator valve for non-public area installation.
Display typeLCD with backlight
EEE category5 small equipment (any external dimension < 50 cm)
EPD availableYes
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
Heating control typeRadiator thermostat
In scope of WEEEYes
Low battery indicatorYes
Noise level Heat dB(A) JIS C 9612<30
Open-window functionYes
Power consumption (standby) [mW]3 mW
Power consumption [W]1.2 W
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Diboron trioxide (B2O3, CAS no. 1303-86-2)
Safety classificationType 1
SCIP dossier no.a90f68b8-f3fb-4eb7-93b0-8738ffc7d80c
SCIP dossier product nameDanfoss Ally eTRV - Electronic thermostatic radiator valve
Software classA
Spindle movementLinear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)
Supply batteries2 x 1,5 V AA-Alkaline batteries
System integrationStand-alone
Temperature measurement interval1 min
Temperature setting range [°C] [Max]28 °C
Temperature setting range [°C] [Min]4 °C
ThermostatProgrammable electronic radiator valve controller
Thermostat IP Class20
Transmission frequency [GHz]2.4 GHz
Transmission power [mW] [Max]2.1 mW
Transport temperature [°C] [Max]65 °C
Transport temperature [°C] [Min]-20 °C
Water temperature [°C] [Max]90 °C
Weight per battery23 g
Wireless standardBluetooth
