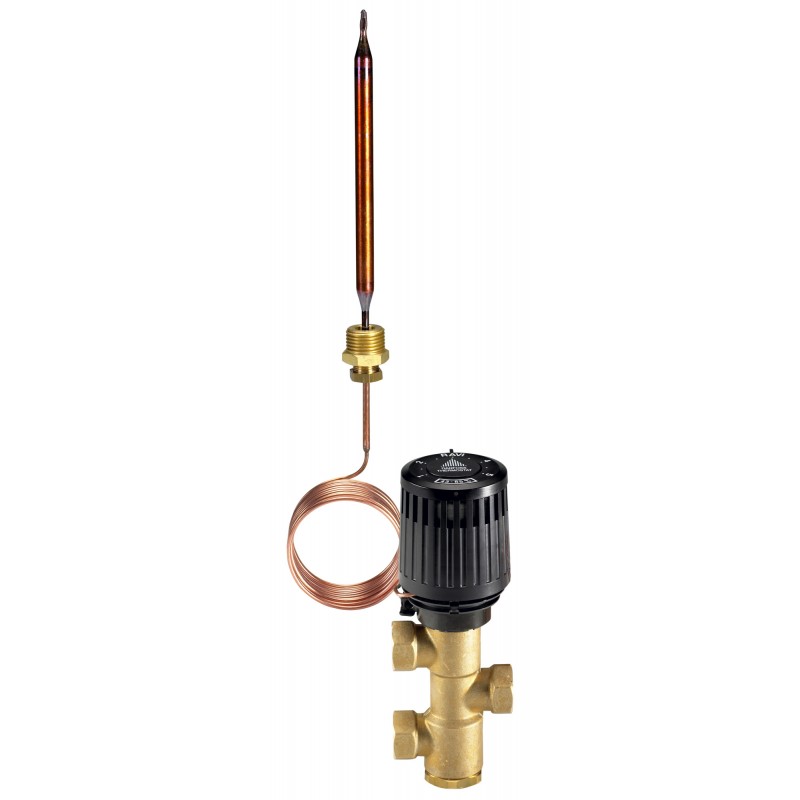

013U8087 DANFOSS HEATING РАВИ-КОВМ PN10 15/2 43-65/2м внутр.
013U8087
DANFOSS HEATING
РАВИ-КОВМ PN10 15/2 43-65/2м внутр.
RAVI-KOVM, 2.00 m³/h, 43 °C - 65 °C, 2.0 m, Internal thread
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲RAVI-KOVM PN10 15/2 43-65/2m int. thr
Product details
| Gross weight | 1.44 Kg |
| Net weight | 1.34 Kg |
| Volume | 2.02 Liter |
| EAN | 5702421500620 |
| Gross weight | 1.44 Kg |
| Net weight | 1.34 Kg |
| Volume | 2.02 Liter |
| EAN | 5702421500620 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN 14597:2005-12 TR838 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.5 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | RAVI-KOVM PN10 15/2 43-65/2m int. thr |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.8 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 120 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Temperature controllers |
| Rection time close [sec] | 3 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature sensor mounting | Colder |
| Temperature setting range [°C] [Max] | 65 °C |
| Temperature setting range [°C] [Min] | 43 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | RAVI-KOVM |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN 14597:2005-12 TR838 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.5 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | RAVI-KOVM PN10 15/2 43-65/2m int. thr |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.8 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 2 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 120 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Temperature controllers |
| Rection time close [sec] | 3 " |
| Rection time open [sec] | 3 " |
| Return limiter function | No |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature sensor mounting | Colder |
| Temperature setting range [°C] [Max] | 65 °C |
| Temperature setting range [°C] [Min] | 43 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | RAVI-KOVM |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
