DANFOSS HEATING013G7718 DANFOSS HEATING RA-DV 10, LEFT

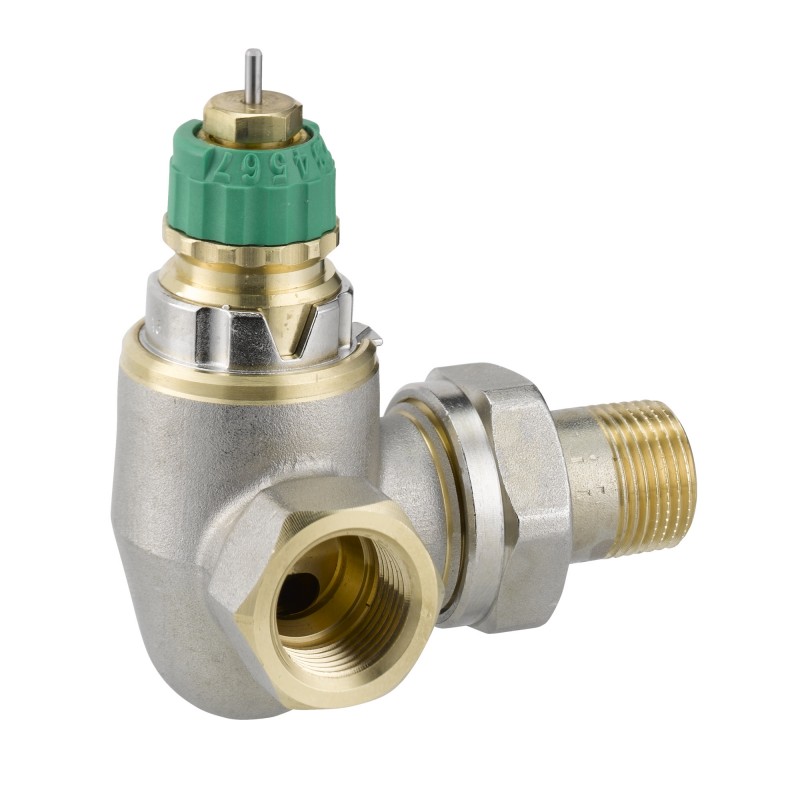

DANFOSS HEATING 013G7718 013G7718 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

013G7718 DANFOSS HEATING RA-DV 10, LEFT

Reference: 013G7718

Manufacturer: DANFOSS HEATING

Description:

RA-DV 10, LEFT
Radiator Valves, RA-DV, Dynamic (pressure independent), DN 10, Double angle left, Other permitted

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 44,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Dynamic valve, pressure independent

Product details

Gross weight0.278 Kilogram
Net weight0.265 Kilogram
Volume0.329 Liter
EAN5702425126949
TypeRA-DV
Product groupRadiator Valves
Gross weight0.278 Kilogram
Net weight0.265 Kilogram
Volume0.329 Liter
EAN5702425126949
TypeRA-DV
Product groupRadiator Valves

Application2-pipe system
BAC efficiency ISO 52120-1 and ISO 16484-4Class A
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inRp 3/8
Connection size outR 3/8
Connection typesInternal thread
Contains batteriesNo
DescriptionDynamic valve, pressure independent
DesignDouble angle left
Differential pressure range [bar] [Max]0.6 bar
Differential pressure range [bar] [Min]0.1 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow [l/h] [Max]135 L/h
Flow at setting 1 [l/h] [Max]10 L/h
Flow at setting 2 [l/h] [Max]15 L/h
Flow at setting 3 [l/h] [Max]20 L/h
Flow at setting 4 [l/h] [Max]35 L/h
Flow at setting 5 [l/h] [Max]50 L/h
Flow at setting 6 [l/h] [Max]80 L/h
Flow at setting 7 [l/h] [Max]100 L/h
Flow at setting N [l/h] [Max]135 L/h
Flow temperature [°C] [Max]95 °C
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.0d86001d-3a28-4ee4-8d0a-7c500968c9cc
SCIP dossier product nameRA-DV Dynamic radiator valve
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 10
Valve typeDynamic (pressure independent)
Working pressure [bar] [Max]10 bar
Application2-pipe system
BAC efficiency ISO 52120-1 and ISO 16484-4Class A
CE evaluatedOut of scope
China RoHS complianceOut of scope
Connection size inRp 3/8
Connection size outR 3/8
Connection typesInternal thread
Contains batteriesNo
DescriptionDynamic valve, pressure independent
DesignDouble angle left
Differential pressure range [bar] [Max]0.6 bar
Differential pressure range [bar] [Min]0.1 bar
Dimension standardOther permitted
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
FinishNickel plated
Flow [l/h] [Max]135 L/h
Flow at setting 1 [l/h] [Max]10 L/h
Flow at setting 2 [l/h] [Max]15 L/h
Flow at setting 3 [l/h] [Max]20 L/h
Flow at setting 4 [l/h] [Max]35 L/h
Flow at setting 5 [l/h] [Max]50 L/h
Flow at setting 6 [l/h] [Max]80 L/h
Flow at setting 7 [l/h] [Max]100 L/h
Flow at setting N [l/h] [Max]135 L/h
Flow temperature [°C] [Max]95 °C
Presettingyes
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.0d86001d-3a28-4ee4-8d0a-7c500968c9cc
SCIP dossier product nameRA-DV Dynamic radiator valve
Tailpiece typeStandard
Test pressure [bar]16 bar
UL evaluatedOut of scope
Valve sizeDN 10
Valve typeDynamic (pressure independent)
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
013G7718 013G7718 EN_013G7714.pdf
6 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
