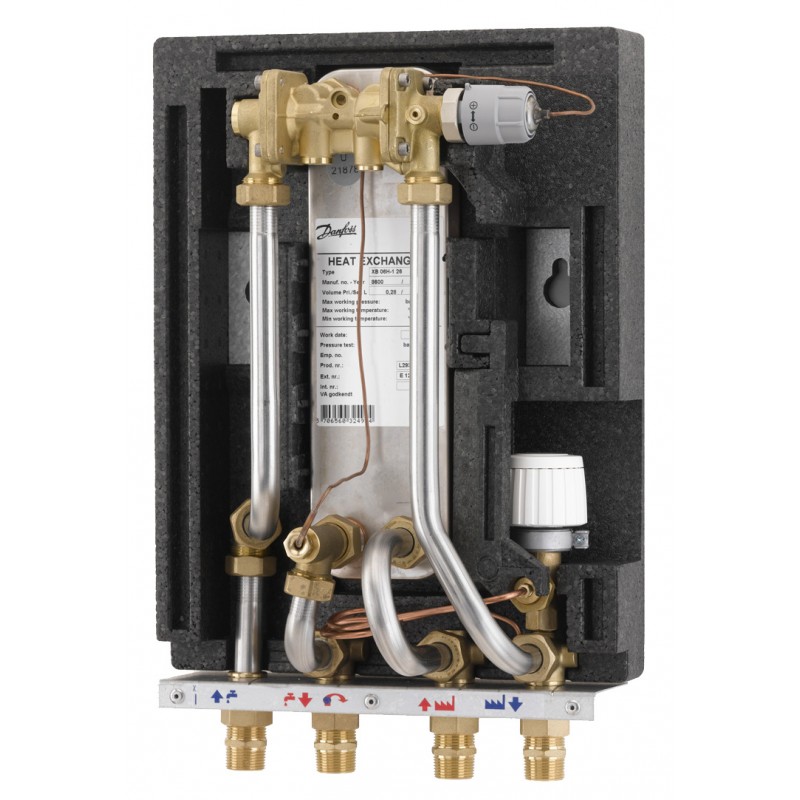

004U8243 DANFOSS HEATING Аква Люкс II Вандвармер H26 ISOL
004U8243
DANFOSS HEATING
Аква Люкс II Вандвармер H26 ISOL
Akva Lux II, fully insulated, 16 bar, 95 °C, DHW controller name: PTC2
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Akva Lux II type 1 (XB 06H-1-26), without cover
Product details
| Gross weight | 9.5 Kg |
| Net weight | 9 Kg |
| EAN | 5715162526835 |
| Gross weight | 9.5 Kg |
| Net weight | 9 Kg |
| EAN | 5715162526835 |
| Connection direction | Bottom |
| Cover material | White-lacquered steel |
| Cover option | Optional |
| DCW static pressure [bar] [Min] | 15 bar |
| Depth with cover [mm] | 210 mm |
| Depth without cover [mm] | 210 mm |
| Description | Akva Lux II type 1 (XB 06H-1-26), without cover |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/Thermost. |
| DHW controller name | PTC2 |
| DHW HEX type | XB06H-1 26 |
| DHW pipe size | Ø18 |
| Fitting piece | Energy meter return |
| HE connection type | G int. Thread |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating control type | Electronic |
| Height with cover [mm] | 410 mm |
| Height without cover [mm] | 410 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Insulation material | Pipe/cover insulation |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 570 mm |
| Package height [mm] | 370 mm |
| Package width [mm] | 570 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 16 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remarks | Insulated Flatstations |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Lux II, fully insulated |
| Width with cover [mm] | 310 mm |
| Width without cover [mm] | 310 mm |
| Connection direction | Bottom |
| Cover material | White-lacquered steel |
| Cover option | Optional |
| DCW static pressure [bar] [Min] | 15 bar |
| Depth with cover [mm] | 210 mm |
| Depth without cover [mm] | 210 mm |
| Description | Akva Lux II type 1 (XB 06H-1-26), without cover |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/Thermost. |
| DHW controller name | PTC2 |
| DHW HEX type | XB06H-1 26 |
| DHW pipe size | Ø18 |
| Fitting piece | Energy meter return |
| HE connection type | G int. Thread |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating control type | Electronic |
| Height with cover [mm] | 410 mm |
| Height without cover [mm] | 410 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Insulation material | Pipe/cover insulation |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 570 mm |
| Package height [mm] | 370 mm |
| Package width [mm] | 570 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 16 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remarks | Insulated Flatstations |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Lux II, fully insulated |
| Width with cover [mm] | 310 mm |
| Width without cover [mm] | 310 mm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
