004H4675 DANFOSS HEATING ХВ37Л-1-60 2StS 16 S1 7G1 L20
004H4675
DANFOSS HEATING
ХВ37Л-1-60_2StS_16_S1_7G1_L20
ХБ37Л-1-60_2StS_16_A_2G1x20mm

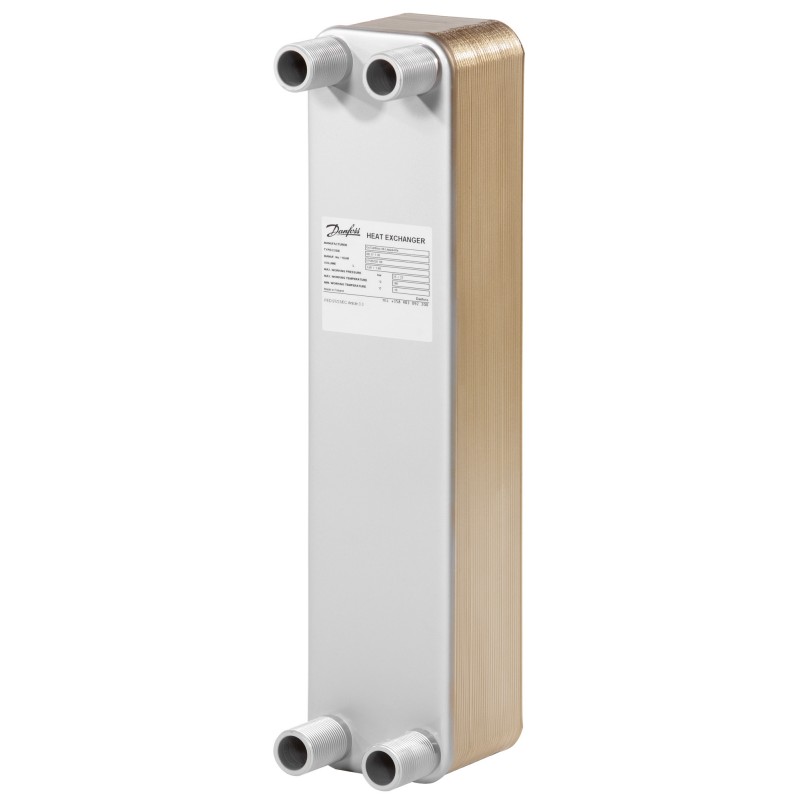

Micro Plate heat exchanger, XB37L-1, Number of plates: 60
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Brazing material: Stainless steel, 16 bar
Product details
| Gross weight | 11.234 Kg |
| Net weight | 10.9 Kg |
| Volume | 16.508 Liter |
| EAN | 5702425143274 |
| Gross weight | 11.234 Kg |
| Net weight | 10.9 Kg |
| Volume | 16.508 Liter |
| EAN | 5702425143274 |
| Approval | PED |
| Brazing material | Stainless steel |
| Connection length 1 [mm] | 20 mm |
| Connection length 2 [mm] | 20 mm |
| Connection length side 1 [mm] | 20 mm |
| Connection length side 2 [mm] | 20 mm |
| Connection size 1 | 1 |
| Connection size 2 | 1 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | FLANGE |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 72 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB37L-1-60_2StS_16_A_2G1x20mm |
| Max working pressure 1 [bar] | 16 bar |
| Max working pressure 2 [bar] | 16 bar |
| Number of passes | 1 |
| Number of plates | 60 |
| Packing format | Single pack |
| PED category | I |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | L |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 119 mm |
| Type | XB37L-1 |
| Vertical center porthole 1[mm] | 479 mm |
| Vertical center porthole 2[mm] | 479 mm |
| Vertical center porthole side 1 [mm] | 479 mm |
| Volume per channel 1 [l] | 0.115 L |
| Volume per channel 2 [l] | 0.115 L |
| Approval | PED |
| Brazing material | Stainless steel |
| Connection length 1 [mm] | 20 mm |
| Connection length 2 [mm] | 20 mm |
| Connection length side 1 [mm] | 20 mm |
| Connection length side 2 [mm] | 20 mm |
| Connection size 1 | 1 |
| Connection size 2 | 1 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | FLANGE |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 72 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB37L-1-60_2StS_16_A_2G1x20mm |
| Max working pressure 1 [bar] | 16 bar |
| Max working pressure 2 [bar] | 16 bar |
| Number of passes | 1 |
| Number of plates | 60 |
| Packing format | Single pack |
| PED category | I |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | L |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 119 mm |
| Type | XB37L-1 |
| Vertical center porthole 1[mm] | 479 mm |
| Vertical center porthole 2[mm] | 479 mm |
| Vertical center porthole side 1 [mm] | 479 mm |
| Volume per channel 1 [l] | 0.115 L |
| Volume per channel 2 [l] | 0.115 L |
