DANFOSS HEATING004H4656 DANFOSS HEATING XB37M-1-30 2StS 16 S1 7G1 L20

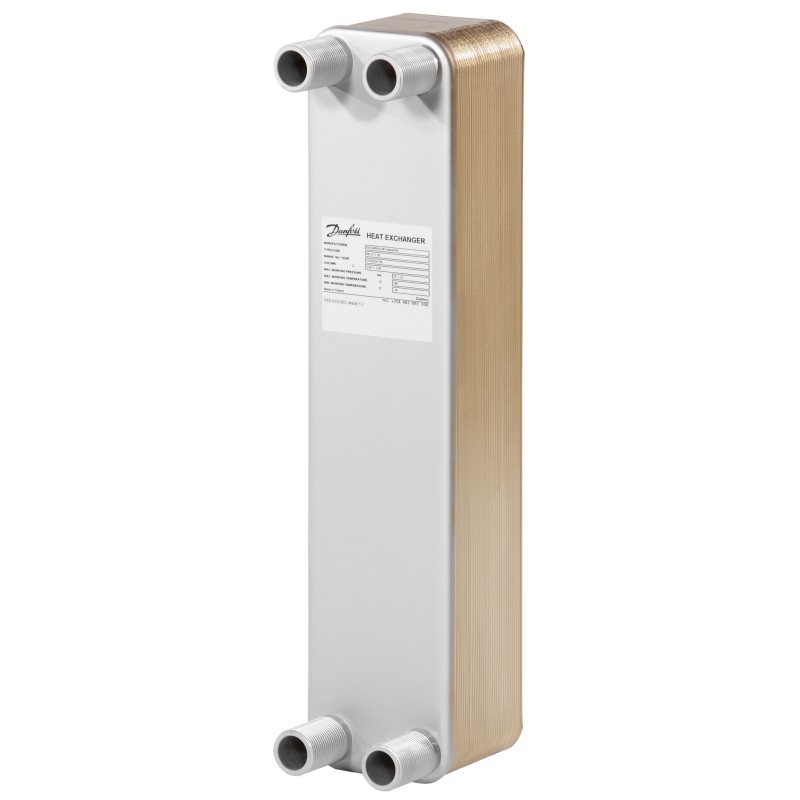

DANFOSS HEATING 004H4656 004H4656 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004H4656 DANFOSS HEATING XB37M-1-30 2StS 16 S1 7G1 L20

Reference: 004H4656

Manufacturer: DANFOSS HEATING

Description:

XB37M-1-30_2StS_16_S1_7G1_L20
XB37M-1-30_2StS_16_A_2G1x20mm
Micro Plate heat exchanger, XB37M-1, Number of plates: 30

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.820,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

16 bar, Brazing material: Stainless steel

Product details

Gross weight6.903 Kilogram
Net weight6.78 Kilogram
Volume11.162 Liter
EAN5702425143083
TypeXB37M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger
Gross weight6.903 Kilogram
Net weight6.78 Kilogram
Volume11.162 Liter
EAN5702425143083
TypeXB37M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger

ApprovalPED
Brazing materialStainless steel
China RoHS complianceYes
Connection length 1 [mm]20 mm
Connection length 2 [mm]20 mm
Connection length side 1 [mm]20 mm
Connection length side 2 [mm]20 mm
Connection size 11
Connection size 21
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group2
Horizontal center porthole[mm]72 mm
In scope of WEEENo
Material Description (Short TeXB37M-1-30_2StS_16_S1_7G1_L20
Max working pressure 1 [bar]16 bar
Max working pressure 2 [bar]16 bar
Number of passes1
Number of plates30
Packing formatSingle pack
PED categoryI
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]525 mm
Total width [mm]119 mm
Vertical center porthole 1[mm]479 mm
Vertical center porthole 2[mm]479 mm
Vertical center porthole side 1 [mm]479 mm
Volume per channel 1 [l]0.085 L
Volume per channel 2 [l]0.085 L
ApprovalPED
Brazing materialStainless steel
China RoHS complianceYes
Connection length 1 [mm]20 mm
Connection length 2 [mm]20 mm
Connection length side 1 [mm]20 mm
Connection length side 2 [mm]20 mm
Connection size 11
Connection size 21
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group2
Horizontal center porthole[mm]72 mm
In scope of WEEENo
Material Description (Short TeXB37M-1-30_2StS_16_S1_7G1_L20
Max working pressure 1 [bar]16 bar
Max working pressure 2 [bar]16 bar
Number of passes1
Number of plates30
Packing formatSingle pack
PED categoryI
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]525 mm
Total width [mm]119 mm
Vertical center porthole 1[mm]479 mm
Vertical center porthole 2[mm]479 mm
Vertical center porthole side 1 [mm]479 mm
Volume per channel 1 [l]0.085 L
Volume per channel 2 [l]0.085 L

DATASHEET - PDF

Title
Size
Type
004H4656 004H4656 EN_004H4637.pdf
674 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
