DANFOSS HEATING004H4621 DANFOSS HEATING XB06L-1-50 2StS 16 S1 2G3/4

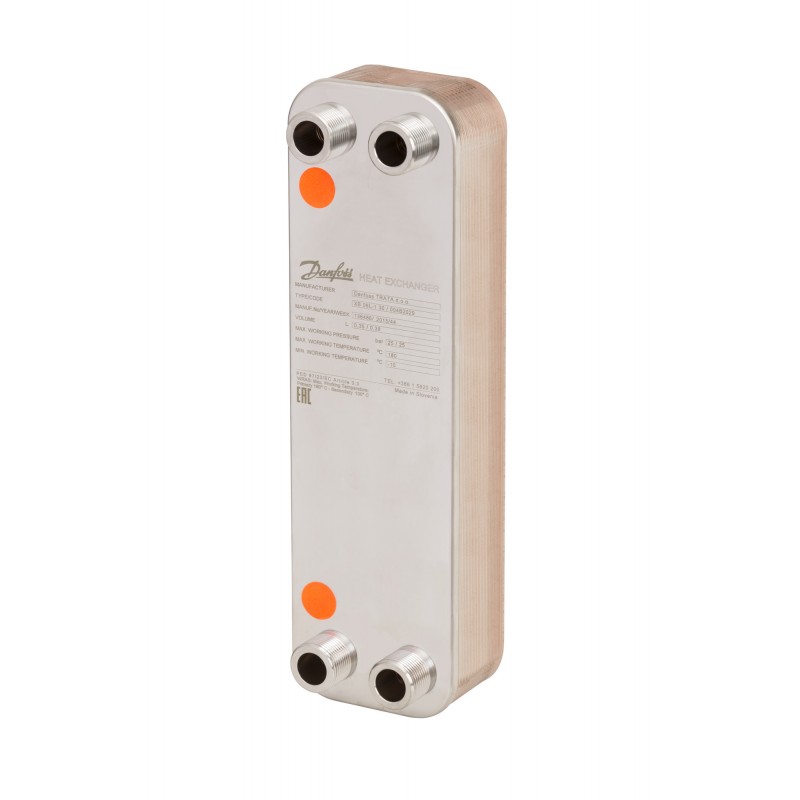

DANFOSS HEATING 004H4621 004H4621 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004H4621 DANFOSS HEATING XB06L-1-50 2StS 16 S1 2G3/4

Reference: 004H4621

Manufacturer: DANFOSS HEATING

Description:

XB06L-1-50_2StS_16_S1_2G3/4
XB06L-1-50_2StS_16_A_2G3/4
Micro Plate heat exchanger, XB06L-1, Number of plates: 50

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

16 bar, Brazing material: Stainless steel

Product details

Gross weight4.65 Kilogram
Net weight4.35 Kilogram
Volume6.559 Liter
EAN5702425142888
TypeXB06L-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger
Gross weight4.65 Kilogram
Net weight4.35 Kilogram
Volume6.559 Liter
EAN5702425142888
TypeXB06L-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger

ApprovalPED
Brazing materialStainless steel
China RoHS complianceYes
Connection length 1 [mm]20 mm
Connection length 2 [mm]20 mm
Connection length side 1 [mm]20 mm
Connection length side 2 [mm]20 mm
Connection size 13/4
Connection size 23/4
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]45 mm
In scope of WEEENo
Material Description (Short TeXB06L-1-50_2StS_16_S1_2G3/4
Max working pressure 1 [bar]16 bar
Max working pressure 2 [bar]16 bar
Number of passes1
Number of plates50
Packing formatSingle pack
PED categoryArt. 4, par. 3
Plate material no.1.4404
Plate material no.1.4404
Plate patternL
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]320 mm
Total width [mm]95 mm
Vertical center porthole 1[mm]270 mm
Vertical center porthole 2[mm]270 mm
Vertical center porthole side 1 [mm]270 mm
Volume per channel 1 [l]0.025 L
Volume per channel 2 [l]0.025 L
ApprovalPED
Brazing materialStainless steel
China RoHS complianceYes
Connection length 1 [mm]20 mm
Connection length 2 [mm]20 mm
Connection length side 1 [mm]20 mm
Connection length side 2 [mm]20 mm
Connection size 13/4
Connection size 23/4
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]45 mm
In scope of WEEENo
Material Description (Short TeXB06L-1-50_2StS_16_S1_2G3/4
Max working pressure 1 [bar]16 bar
Max working pressure 2 [bar]16 bar
Number of passes1
Number of plates50
Packing formatSingle pack
PED categoryArt. 4, par. 3
Plate material no.1.4404
Plate material no.1.4404
Plate patternL
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]320 mm
Total width [mm]95 mm
Vertical center porthole 1[mm]270 mm
Vertical center porthole 2[mm]270 mm
Vertical center porthole side 1 [mm]270 mm
Volume per channel 1 [l]0.025 L
Volume per channel 2 [l]0.025 L
