DANFOSS HEATING004H4527 DANFOSS HEATING XB52M-1-70 2Cu 25 S1 2G2

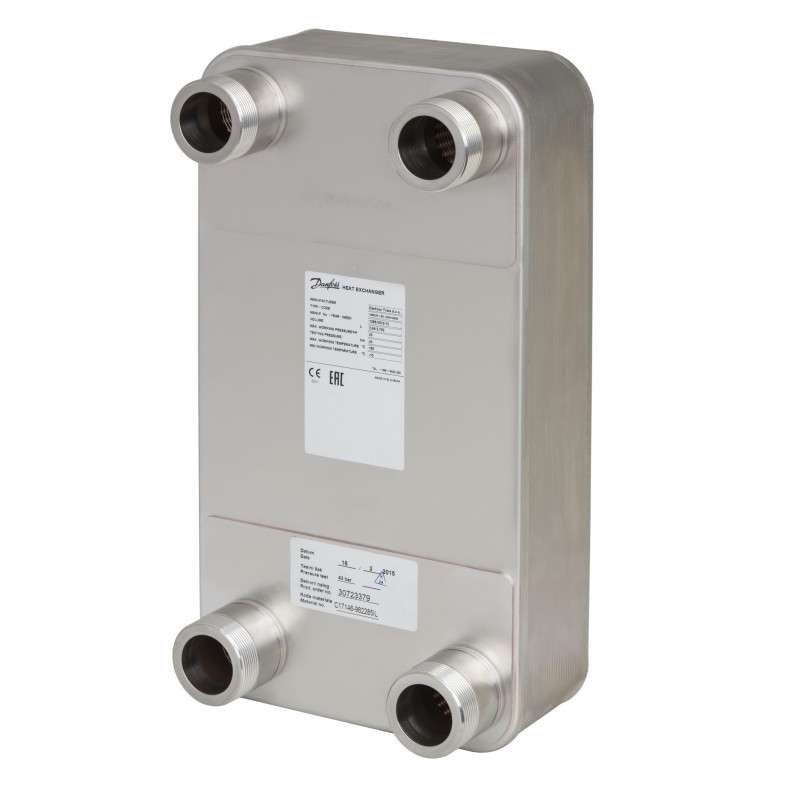

DANFOSS HEATING 004H4527 004H4527 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

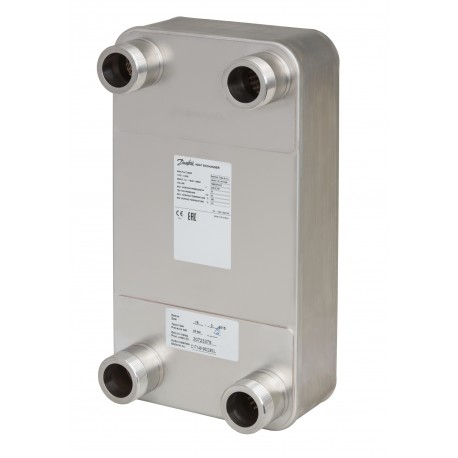

004H4527 DANFOSS HEATING XB52M-1-70 2Cu 25 S1 2G2

Reference: 004H4527

Manufacturer: DANFOSS HEATING

Description:

XB52M-1-70_2Cu_25_S1_2G2
XB52M-1-70_2_25_A_2G2
Micro Plate heat exchanger, XB52M-1, Number of plates: 70

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.089,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

25 bar, Brazing material: Copper

Product details

Gross weight30 Kilogram
Net weight26.6 Kilogram
Volume85.301 Liter
EAN5702425113840
TypeXB52M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger
Gross weight30 Kilogram
Net weight26.6 Kilogram
Volume85.301 Liter
EAN5702425113840
TypeXB52M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger

ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]50 mm
Connection length 2 [mm]50 mm
Connection length side 1 [mm]50 mm
Connection length side 2 [mm]50 mm
Connection size 12
Connection size 22
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]170 mm
In scope of WEEENo
Material Description (Short TeXB52M-1-70_2Cu_25_S1_2G2
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates70
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]466 mm
Total width [mm]256 mm
Vertical center porthole 1[mm]379 mm
Vertical center porthole 2[mm]379 mm
Vertical center porthole side 1 [mm]379 mm
Volume per channel 1 [l]0.163 L
Volume per channel 2 [l]0.163 L
ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]50 mm
Connection length 2 [mm]50 mm
Connection length side 1 [mm]50 mm
Connection length side 2 [mm]50 mm
Connection size 12
Connection size 22
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]170 mm
In scope of WEEENo
Material Description (Short TeXB52M-1-70_2Cu_25_S1_2G2
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates70
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]466 mm
Total width [mm]256 mm
Vertical center porthole 1[mm]379 mm
Vertical center porthole 2[mm]379 mm
Vertical center porthole side 1 [mm]379 mm
Volume per channel 1 [l]0.163 L
Volume per channel 2 [l]0.163 L

DATASHEET - PDF

Title
Size
Type
004H4527 004H4527 ES_004H4541.pdf
504 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
