DANFOSS HEATING004H4526 DANFOSS HEATING XB52M-1-60 2Cu 25 S1 2G2

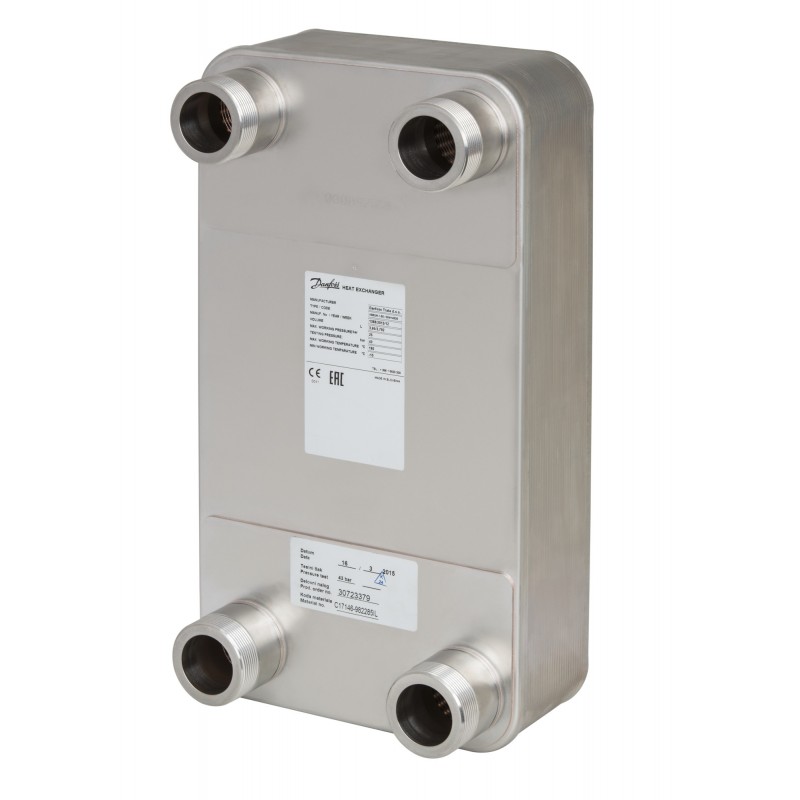

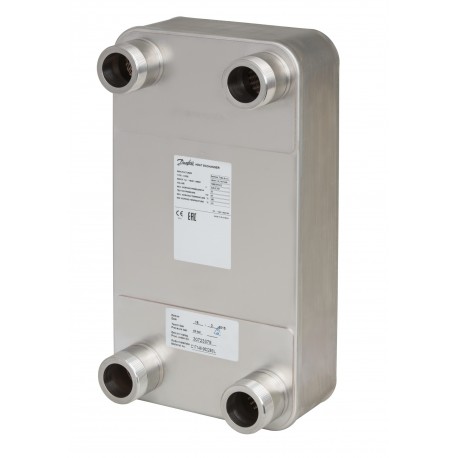

DANFOSS HEATING 004H4526 004H4526 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004H4526 DANFOSS HEATING XB52M-1-60 2Cu 25 S1 2G2

Reference: 004H4526

Manufacturer: DANFOSS HEATING

Description:

XB52M-1-60_2Cu_25_S1_2G2
XB52M-1-60_2_25_A_2G2
Micro Plate heat exchanger, XB52M-1, Number of plates: 60

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.928,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

25 bar, Brazing material: Copper

Product details

Gross weight24.451 Kilogram
Net weight23.9 Kilogram
Volume38.88 Liter
EAN5702425113833
TypeXB52M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger
Gross weight24.451 Kilogram
Net weight23.9 Kilogram
Volume38.88 Liter
EAN5702425113833
TypeXB52M-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger

ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]50 mm
Connection length 2 [mm]50 mm
Connection length side 1 [mm]50 mm
Connection length side 2 [mm]50 mm
Connection size 12
Connection size 22
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]170 mm
In scope of WEEENo
Manufacturer's nameDanfoss
Material Description (Short TeXB52M-1-60_2Cu_25_S1_2G2
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates60
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]466 mm
Total width [mm]256 mm
Vertical center porthole 1[mm]379 mm
Vertical center porthole 2[mm]379 mm
Vertical center porthole side 1 [mm]379 mm
Volume per channel 1 [l]0.163 L
Volume per channel 2 [l]0.163 L
ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]50 mm
Connection length 2 [mm]50 mm
Connection length side 1 [mm]50 mm
Connection length side 2 [mm]50 mm
Connection size 12
Connection size 22
Connection standardISO 228/1
Connection type 1G
Connection type 2G
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Horizontal center porthole[mm]170 mm
In scope of WEEENo
Manufacturer's nameDanfoss
Material Description (Short TeXB52M-1-60_2Cu_25_S1_2G2
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates60
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternM
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]466 mm
Total width [mm]256 mm
Vertical center porthole 1[mm]379 mm
Vertical center porthole 2[mm]379 mm
Vertical center porthole side 1 [mm]379 mm
Volume per channel 1 [l]0.163 L
Volume per channel 2 [l]0.163 L
