004B3448 DANFOSS HEATING ХВ61М-1-140 2Cu 25 S1 7G2 SB
004B3448
DANFOSS HEATING
ХВ61М-1-140_2Cu_25_S1_7G2_SB
ХБ61М-1-140_2_25_ASB_G2 зв

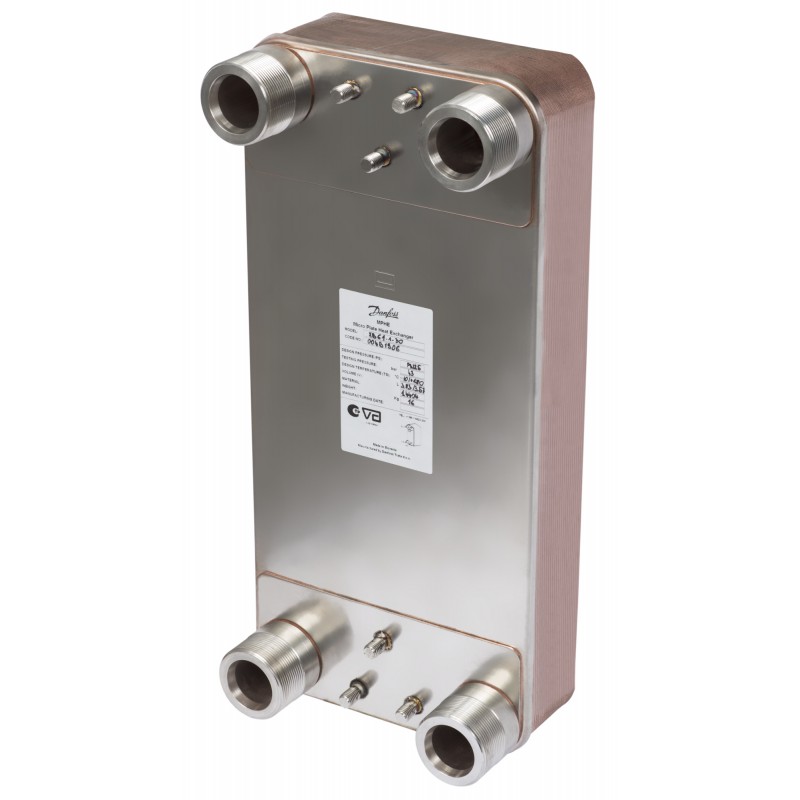

Micro Plate heat exchanger, XB61M-1, Number of plates: 140
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Brazing material: Copper, 25 bar
Product details
| Gross weight | 51 Kg |
| Net weight | 51 Kg |
| Volume | 39.312 Liter |
| EAN | 5702425090295 |
| Gross weight | 51 Kg |
| Net weight | 51 Kg |
| Volume | 39.312 Liter |
| EAN | 5702425090295 |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 52 mm |
| Connection length 2 [mm] | 52 mm |
| Connection length side 1 [mm] | 52 mm |
| Connection length side 2 [mm] | 52 mm |
| Connection size 1 | 2 |
| Connection size 2 | 2 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 174 mm |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Material Description (Short Te | XB61M-1-140_2_25_ASB_G2 sv |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 140 |
| Packing format | Single pack |
| PED category | II |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 243 mm |
| Type | XB61M-1 |
| Vertical center porthole 1[mm] | 456 mm |
| Vertical center porthole 2[mm] | 456 mm |
| Vertical center porthole side 1 [mm] | 456 mm |
| Volume per channel 1 [l] | 0.18 L |
| Volume per channel 2 [l] | 0.18 L |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 52 mm |
| Connection length 2 [mm] | 52 mm |
| Connection length side 1 [mm] | 52 mm |
| Connection length side 2 [mm] | 52 mm |
| Connection size 1 | 2 |
| Connection size 2 | 2 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 174 mm |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Material Description (Short Te | XB61M-1-140_2_25_ASB_G2 sv |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 140 |
| Packing format | Single pack |
| PED category | II |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | M |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 243 mm |
| Type | XB61M-1 |
| Vertical center porthole 1[mm] | 456 mm |
| Vertical center porthole 2[mm] | 456 mm |
| Vertical center porthole side 1 [mm] | 456 mm |
| Volume per channel 1 [l] | 0.18 L |
| Volume per channel 2 [l] | 0.18 L |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
