DANFOSS HEATING004B1994 DANFOSS HEATING XB66H-1-110 2Cu 25 S1 2DN65CF SB

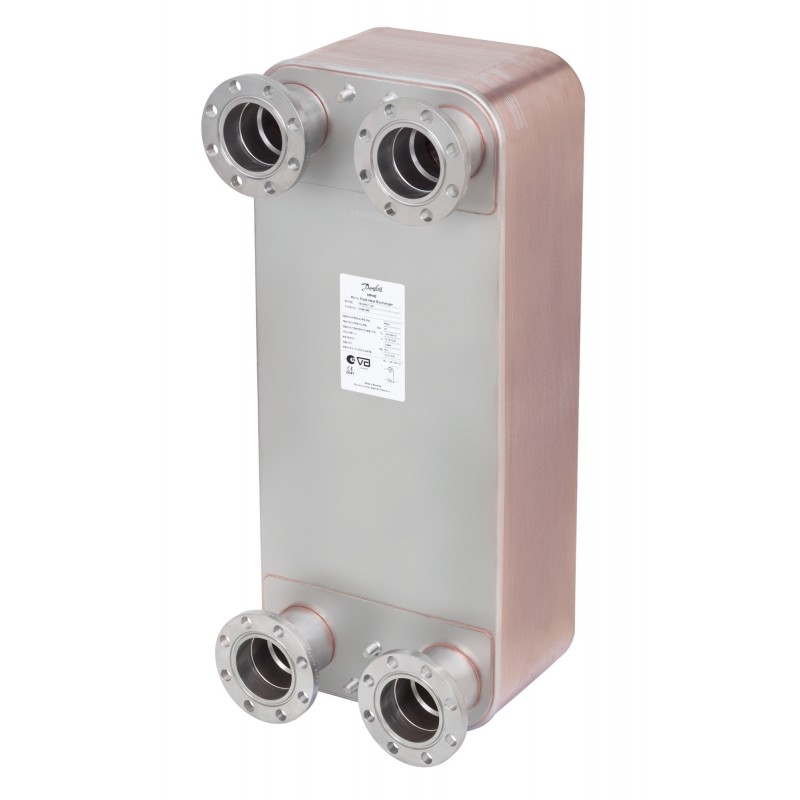

DANFOSS HEATING 004B1994 004B1994 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004B1994 DANFOSS HEATING XB66H-1-110 2Cu 25 S1 2DN65CF SB

Reference: 004B1994

Manufacturer: DANFOSS HEATING

Description:

XB66H-1-110_2Cu_25_S1_2DN65CF_SB
XB66H-1-110_2_25_ASB_2F65cf
Micro Plate heat exchanger, XB66H-1, Number of plates: 110

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 7.075,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

25 bar, Brazing material: Copper

Product details

Gross weight90.25 Kilogram
Net weight66.2 Kilogram
Volume260.164 Liter
EAN5710104047980
TypeXB66H-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger
Gross weight90.25 Kilogram
Net weight66.2 Kilogram
Volume260.164 Liter
EAN5710104047980
TypeXB66H-1
Product groupHeat exchangers
Product Name DescriptionMicro Plate heat exchanger

ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]80 mm
Connection length 2 [mm]80 mm
Connection length side 1 [mm]80 mm
Connection length side 2 [mm]80 mm
Connection size 1DN65
Connection size 2DN65
Connection standardISO 228/1
Connection type 1FLANGE
Connection type 2FLANGE
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group2
Horizontal center porthole[mm]180 mm
In scope of WEEENo
Material Description (Short TeXB66H-1-110_2Cu_25_S1_2DN65CF_
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates110
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternH
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]706 mm
Total width [mm]296 mm
Vertical center porthole 1[mm]583 mm
Vertical center porthole 2[mm]583 mm
Vertical center porthole side 1 [mm]583 mm
Volume per channel 1 [l]0.23 L
Volume per channel 2 [l]0.23 L
ApprovalPED
Brazing materialCopper
China RoHS complianceYes
Connection length 1 [mm]80 mm
Connection length 2 [mm]80 mm
Connection length side 1 [mm]80 mm
Connection length side 2 [mm]80 mm
Connection size 1DN65
Connection size 2DN65
Connection standardISO 228/1
Connection type 1FLANGE
Connection type 2FLANGE
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group2
Horizontal center porthole[mm]180 mm
In scope of WEEENo
Material Description (Short TeXB66H-1-110_2Cu_25_S1_2DN65CF_
Max working pressure 1 [bar]25 bar
Max working pressure 2 [bar]25 bar
Number of passes1
Number of plates110
Packing formatSingle pack
PED categoryII
Plate material no.1.4404
Plate material no.1.4404
Plate patternH
Quantity per packing format1 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]180 °C
Temperature range [°C] [min]-196 °C
Total height without feet [mm]706 mm
Total width [mm]296 mm
Vertical center porthole 1[mm]583 mm
Vertical center porthole 2[mm]583 mm
Vertical center porthole side 1 [mm]583 mm
Volume per channel 1 [l]0.23 L
Volume per channel 2 [l]0.23 L

DATASHEET - PDF

Title
Size
Type
004B1994 004B1994 ES_004B3545.pdf
463 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
