004B1197 DANFOSS HEATING ХБ51Л-1-50 2 25 A 1G2 1G2
004B1197
DANFOSS HEATING
ХБ51Л-1-50_2_25_A_1G2_1G2

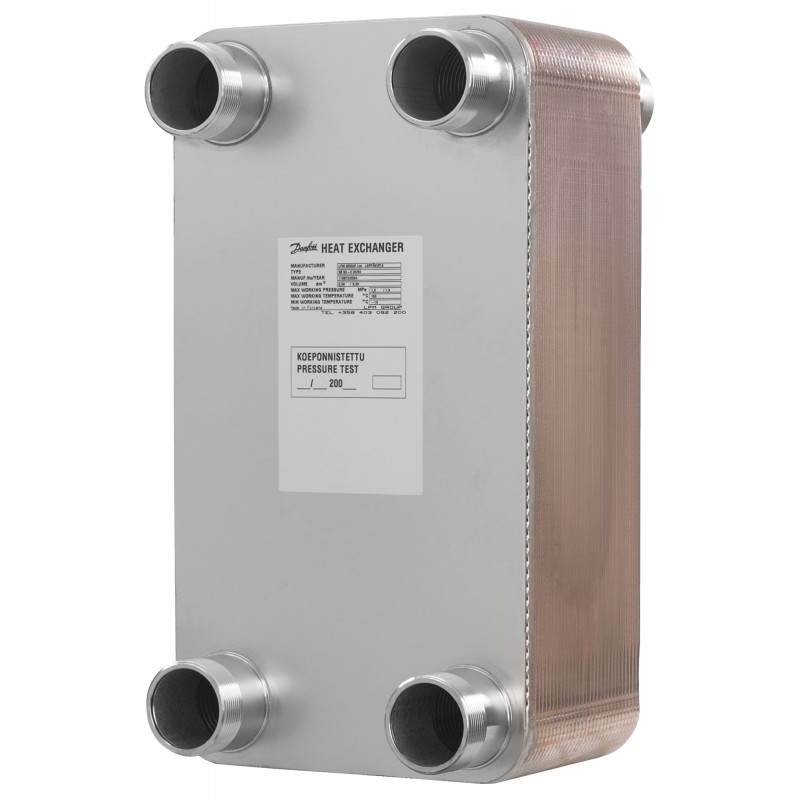

Brazed plate heat exchanger, XB51L-1, Number of plates: 50, 25 bar
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Brazing material: Copper
Product details
| Gross weight | 27.678 Kg |
| Net weight | 27.678 Kg |
| Volume | 37.584 Liter |
| EAN | 5702421903711 |
| Gross weight | 27.678 Kg |
| Net weight | 27.678 Kg |
| Volume | 37.584 Liter |
| EAN | 5702421903711 |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 50 mm |
| Connection length 2 [mm] | 50 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Connection size 1 | 2 |
| Connection size 2 | 2 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 170 mm |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Material Description (Short Te | XB51L-1-50_2_25_A_1G2_1G2 |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 50 |
| Packing format | Single pack |
| PED category | I |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | L |
| Product group | Heat exchangers |
| Product Name Description | Brazed plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 466 mm |
| Total width [mm] | 256 mm |
| Type | XB51L-1 |
| Vertical center porthole 1[mm] | 380 mm |
| Vertical center porthole 2[mm] | 380 mm |
| Vertical center porthole side 1 [mm] | 380 mm |
| Volume per channel 1 [l] | 0.21 L |
| Volume per channel 2 [l] | 0.21 L |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 50 mm |
| Connection length 2 [mm] | 50 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Connection size 1 | 2 |
| Connection size 2 | 2 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 170 mm |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Material Description (Short Te | XB51L-1-50_2_25_A_1G2_1G2 |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 50 |
| Packing format | Single pack |
| PED category | I |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | L |
| Product group | Heat exchangers |
| Product Name Description | Brazed plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 466 mm |
| Total width [mm] | 256 mm |
| Type | XB51L-1 |
| Vertical center porthole 1[mm] | 380 mm |
| Vertical center porthole 2[mm] | 380 mm |
| Vertical center porthole side 1 [mm] | 380 mm |
| Volume per channel 1 [l] | 0.21 L |
| Volume per channel 2 [l] | 0.21 L |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
