Images are for illustrative purposes only. Please refer to data sheet for details.

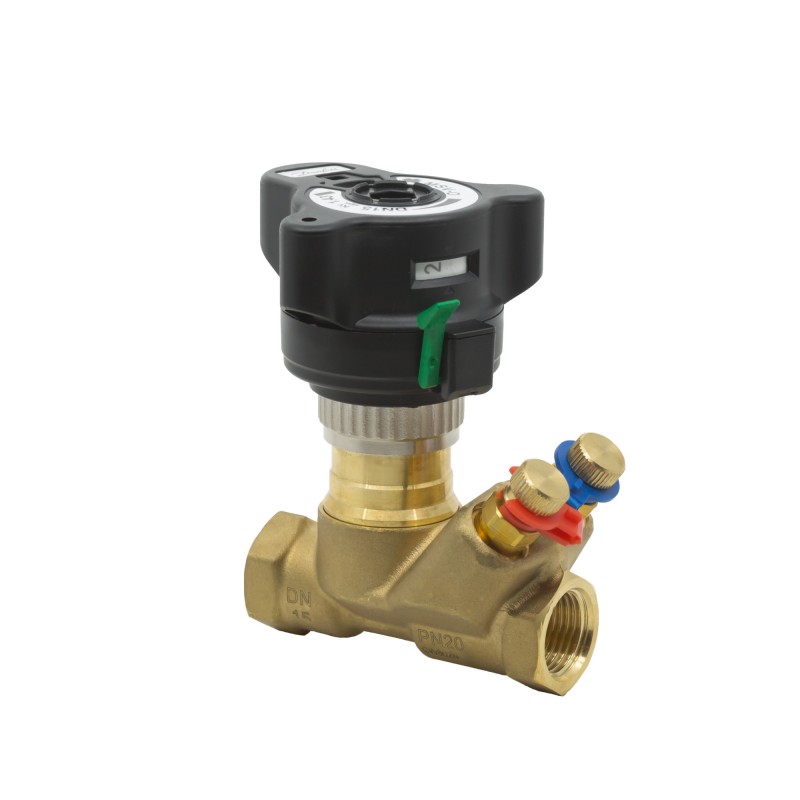

003Z4022 DANFOSS HEATING MSV-O DN20 G¾" int.
Reference: 003Z4022
Manufacturer: DANFOSS HEATING
Description:
MSV-O DN20 G¾" int.
LENO MSV-O, DN 20, Internal thread ISO 7/1
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
MSV-O DN 20, Internal thread, fixed venturi orifice, manual balancing valve
Product details
| Gross weight | 0.888 Kilogram |
| Net weight | 0.816 Kilogram |
| Volume | 1.423 Liter |
| EAN | 5702420096667 |
| Type | LENO MSV-O |
| Product group | Manual balancing |
| Gross weight | 0.888 Kilogram |
| Net weight | 0.816 Kilogram |
| Volume | 1.423 Liter |
| EAN | 5702420096667 |
| Type | LENO MSV-O |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 7/1 |
| Connections | Rp ¾ |
| Contains batteries | No |
| Description | MSV-O DN 20, Internal thread, fixed venturi orifice, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 5.7 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 53f95648-cebd-47cc-b3d7-13f198654fa0 |
| SCIP dossier product name | MSV-O DN15-DN50 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 20 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 7/1 |
| Connections | Rp ¾ |
| Contains batteries | No |
| Description | MSV-O DN 20, Internal thread, fixed venturi orifice, manual balancing valve |
| Differential pressure [kPa] [Max] | 3 KPa |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 5.7 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 53f95648-cebd-47cc-b3d7-13f198654fa0 |
| SCIP dossier product name | MSV-O DN15-DN50 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | DZR brass |
| Valve size | DN 20 |
DATASHEET - PDF
Title
Size
Type
11 Mbytes
