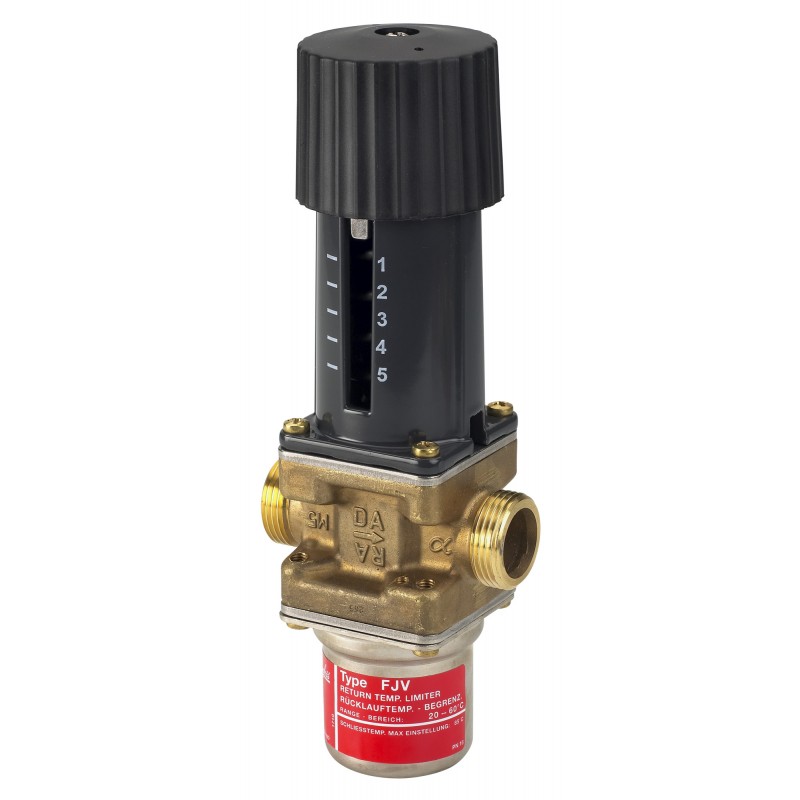

003N2250 DANFOSS HEATING FJV PN16 15/1,9 20-60 int Rp возврат
003N2250
DANFOSS HEATING
FJV PN16 15/1,9 20-60 int Rp возврат
FJV, 1.90 m³/h, 20 °C - 60 °C, Internal thread
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲FJV 15 Thermostatic valve 20-60#C
Product details
| Gross weight | 1.372 Kg |
| Net weight | 1.294 Kg |
| Volume | 4.144 Liter |
| EAN | 5702421100141 |
| Gross weight | 1.372 Kg |
| Net weight | 1.294 Kg |
| Volume | 4.144 Liter |
| EAN | 5702421100141 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | FJV 15 Thermostatic valve 20-60#C |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. limiter |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1.9 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Return |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Return limiter function | Yes |
| Temperature control | No |
| Temperature setting range [°C] [Max] | 60 °C |
| Temperature setting range [°C] [Min] | 20 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | FJV |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | FJV 15 Thermostatic valve 20-60#C |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. limiter |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1.9 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Return |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Return limiter function | Yes |
| Temperature control | No |
| Temperature setting range [°C] [Max] | 60 °C |
| Temperature setting range [°C] [Min] | 20 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | FJV |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
Datasheet - PDF
