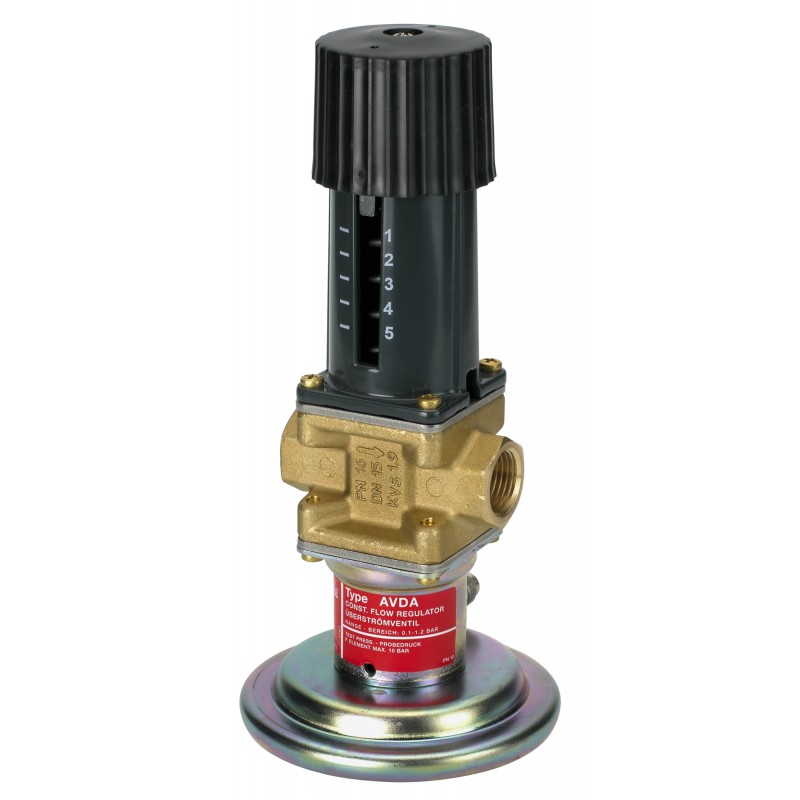

DANFOSS HEATING 003N0039 003N0039 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003N0039 DANFOSS HEATING AVDA PN10 20/3,4 0.1-1.2 int Rp bypass

Reference: 003N0039

Manufacturer: DANFOSS HEATING

Description:

AVDA PN10 20/3,4 0.1-1.2 int Rp bypass
AVDA, PN 10, DN 20, 3.4 m³/h, 0.1 bar - 1.2 bar, Internal thread, Rp 3/4

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 574,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AVDA 20 Pressure regulator 0.1-1.2 bar

Product details

Gross weight2.29 Kilogram
Net weight2.176 Kilogram
Volume4.643 Liter
EAN5702421100028
TypeAVDA
Product groupPressure flow controllers
Gross weight2.29 Kilogram
Net weight2.176 Kilogram
Volume4.643 Liter
EAN5702421100028
TypeAVDA
Product groupPressure flow controllers

ApplicationDistrict Heating
Cavitation factor0.4
China RoHS complianceOut of scope
Connection sizeRp 3/4
Connection typesInternal thread
Contains batteriesNo
DescriptionAVDA 20 Pressure regulator 0.1-1.2 bar
Diameter [mm]20 mm
Differential pressure range [bar] [Max]7 bar
Differential pressure setting [bar] [Max]1.2 bar
Differential pressure setting [bar] [Min]0.1 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. relief controller
Function VSP - PYes
Function VSP - QNo
Function VSP - TNo
Kvs values [m³/h]3.4 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]10 °C
Medium alternativeGlycolic water up to 30%
Mounting versionBypass
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 10
Pressure controllerDifferential pressure relief controller
Pressure nominal [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable
Stem positionNormally closed
Valve body materialHot pressed brass, mat. No. 2.0402 (Ms 58)
Valve cone DP materialNBR-rubber
Valve sizeDN 20
ApplicationDistrict Heating
Cavitation factor0.4
China RoHS complianceOut of scope
Connection sizeRp 3/4
Connection typesInternal thread
Contains batteriesNo
DescriptionAVDA 20 Pressure regulator 0.1-1.2 bar
Diameter [mm]20 mm
Differential pressure range [bar] [Max]7 bar
Differential pressure setting [bar] [Max]1.2 bar
Differential pressure setting [bar] [Min]0.1 bar
EU RoHS complianceOut of scope
Flow controlNo
Flow limitationNo
FunctionDiff. press. relief controller
Function VSP - PYes
Function VSP - QNo
Function VSP - TNo
Kvs values [m³/h]3.4 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]10 °C
Medium alternativeGlycolic water up to 30%
Mounting versionBypass
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 10
Pressure controllerDifferential pressure relief controller
Pressure nominal [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Setting TypeAdjustable
Stem positionNormally closed
Valve body materialHot pressed brass, mat. No. 2.0402 (Ms 58)
Valve cone DP materialNBR-rubber
Valve sizeDN 20

DATASHEET - PDF
