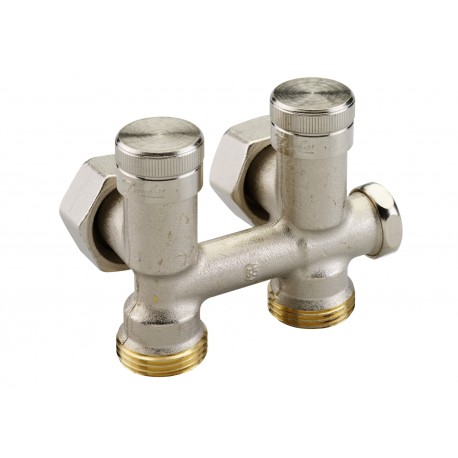

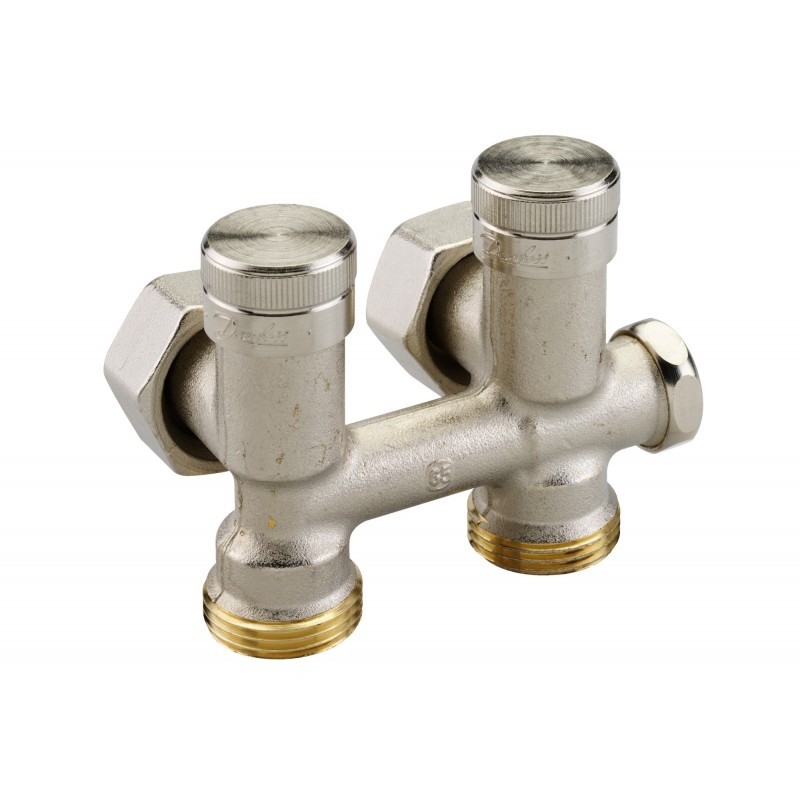

003L0283 DANFOSS HEATING RLV-K 20 Angle
Reference: 003L0283
Manufacturer: DANFOSS HEATING
Description:
RLV-K 20 Angle
H-piece valves, RLV-K, 20, Angle
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
With drain-off feature, for 1 and 2-pipe systems
Product details
| Gross weight | 0.47 Kilogram |
| Net weight | 0.47 Kilogram |
| Volume | 0.257 Liter |
| EAN | 5702421034422 |
| Type | RLV-K |
| Product group | H-piece valves |
| Gross weight | 0.47 Kilogram |
| Net weight | 0.47 Kilogram |
| Volume | 0.257 Liter |
| EAN | 5702421034422 |
| Type | RLV-K |
| Product group | H-piece valves |
| Application | 1-pipe system 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection to radiator | G 3/4 |
| Connection to system | G 3/4 |
| Contains batteries | No |
| Description | With drain-off feature, for 1 and 2-pipe systems |
| Design | Angle |
| Distance center to center [mm] | 50 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.4 m³/h |
| Label product | Yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 9b7b8f78-bd6d-4df4-b0d5-d6386af6d239 |
| SCIP dossier product name | RLV-K, H-piece |
| Surface | Nickel plated |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | 20 |
| Working pressure [bar] [Max] | 10 bar |
| Application | 1-pipe system 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection to radiator | G 3/4 |
| Connection to system | G 3/4 |
| Contains batteries | No |
| Description | With drain-off feature, for 1 and 2-pipe systems |
| Design | Angle |
| Distance center to center [mm] | 50 mm |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kvs values [m³/h] | 1.4 m³/h |
| Label product | Yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 9b7b8f78-bd6d-4df4-b0d5-d6386af6d239 |
| SCIP dossier product name | RLV-K, H-piece |
| Surface | Nickel plated |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| Valve size | 20 |
| Working pressure [bar] [Max] | 10 bar |
