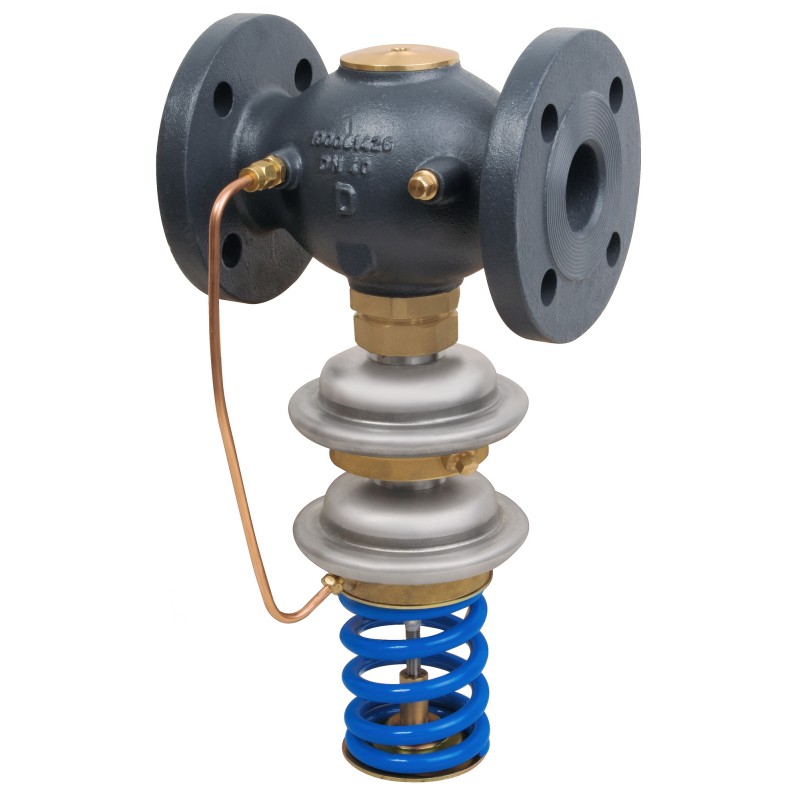

003H6966 DANFOSS HEATING SAVA PN25 32/12,5 2-7,5 фланцевой байпас
003H6966
DANFOSS HEATING
SAVA PN25 32/12,5 2-7,5 фланцевой байпас
Function: Safety press. relief controller (SÜV), SAVA, PN 25, DN 32, 12.50 m³/h, 2.00 bar - 7.50 bar, Flange, Mounting version: Bypass
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲SAVA PN25 32/12,5 2-7,5 flange bypass
Product details
| Gross weight | 14.109 Kg |
| Net weight | 14.109 Kg |
| Volume | 25.27 Liter |
| EAN | 5710104031156 |
| Gross weight | 14.109 Kg |
| Net weight | 14.109 Kg |
| Volume | 25.27 Liter |
| EAN | 5710104031156 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.3 |
| Cavitation factor 25% | 0.52 |
| Cavitation factor 50% | 0.45 |
| Cavitation factor 75% | 0.37 |
| Connection types | Flange |
| Description | SAVA PN25 32/12,5 2-7,5 flange bypass |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Safety press. relief controller (SÜV) |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 12.5 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Yes |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 7.5 bar |
| Pressure setting range [bar] [Min] | 2 bar |
| Product group | Pressure flow controllers |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally closed |
| Type | SAVA |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 32 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.3 |
| Cavitation factor 25% | 0.52 |
| Cavitation factor 50% | 0.45 |
| Cavitation factor 75% | 0.37 |
| Connection types | Flange |
| Description | SAVA PN25 32/12,5 2-7,5 flange bypass |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Safety press. relief controller (SÜV) |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 12.5 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Yes |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 7.5 bar |
| Pressure setting range [bar] [Min] | 2 bar |
| Product group | Pressure flow controllers |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally closed |
| Type | SAVA |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 32 |
