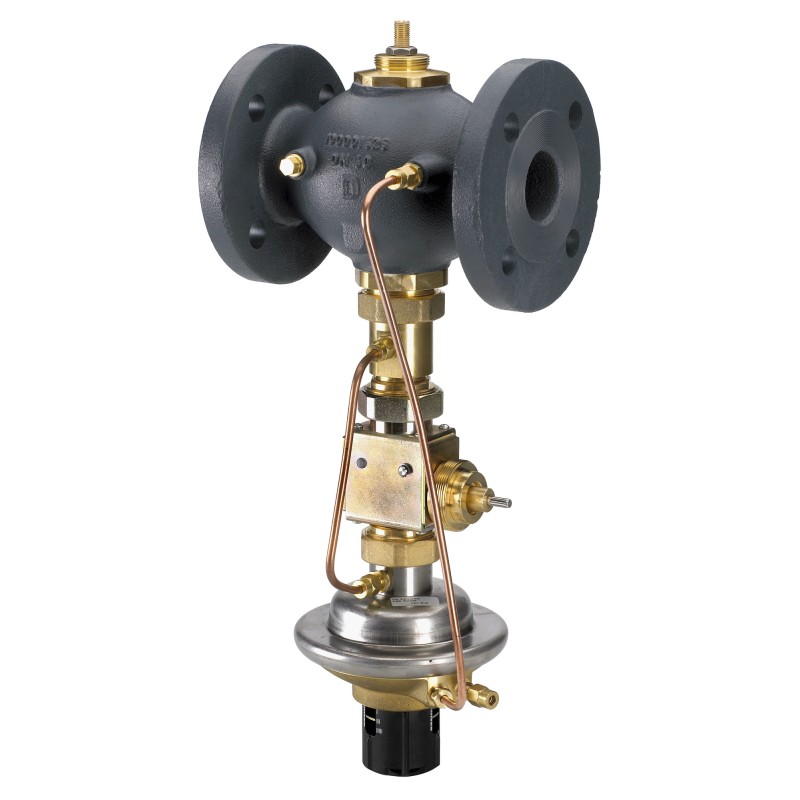

003H6812 DANFOSS HEATING AVPQT PN25 50/25 0,2-1,0/0,2 фланец ret
003H6812
DANFOSS HEATING
AVPQT PN25 50/25 0,2-1,0/0,2 фланец ret
AVPQT, PN 25, DN 50, Flow rate [m³/h]: 0.80 - 15.00, 0.20 bar - 1.00 bar, Flange, Mounting version: Return
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AVPQT PN25 50/25 0,2-1,0/0,2 flange ret
Product details
| Gross weight | 16.127 Kg |
| Net weight | 16.127 Kg |
| Volume | 28.039 Liter |
| EAN | 5702421543337 |
| Gross weight | 16.127 Kg |
| Net weight | 16.127 Kg |
| Volume | 28.039 Liter |
| EAN | 5702421543337 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection types | Flange |
| Description | AVPQT PN25 50/25 0,2-1,0/0,2 flange ret |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 12 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.2 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow rate [m³/h] | 12 m³/h |
| Flow rate [m³/h] [Max] | 15 m³/h |
| Flow rate [m³/h] [Min] | 0.8 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press., flow and temp. controller |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 25 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Return |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 0 |
| Pressure class | PN 25 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Type | AVPQT |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 50 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection types | Flange |
| Description | AVPQT PN25 50/25 0,2-1,0/0,2 flange ret |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 12 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.2 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow rate [m³/h] | 12 m³/h |
| Flow rate [m³/h] [Max] | 15 m³/h |
| Flow rate [m³/h] [Min] | 0.8 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press., flow and temp. controller |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | Yes |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 25 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Return |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 0 |
| Pressure class | PN 25 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Type | AVPQT |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 50 |
