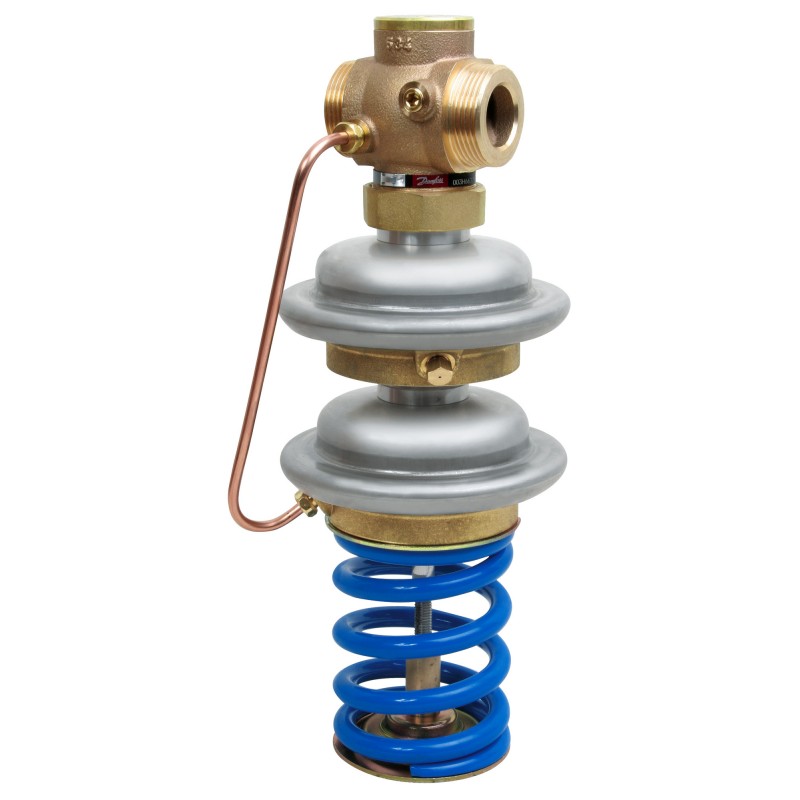

003H6683 DANFOSS HEATING Байпас резьбы SAVA PN25 25/8 3-11
003H6683
DANFOSS HEATING
Байпас резьбы SAVA PN25 25/8 3-11
Function: Safety press. relief controller (SÜV), SAVA, PN 25, DN 25, 8.00 m³/h, 3.00 bar - 11.00 bar, External Thread, G 1 1/4 A, Mounting version: Bypass
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲SAVA PN25 25/8 3-11 thread bypass
Product details
| Gross weight | 7.36 Kg |
| Net weight | 7.36 Kg |
| Volume | 10.742 Liter |
| EAN | 5702421542040 |
| Gross weight | 7.36 Kg |
| Net weight | 7.36 Kg |
| Volume | 10.742 Liter |
| EAN | 5702421542040 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.35 |
| Cavitation factor 25% | 0.57 |
| Cavitation factor 50% | 0.5 |
| Cavitation factor 75% | 0.5 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | SAVA PN25 25/8 3-11 thread bypass |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Safety press. relief controller (SÜV) |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 8 m³/h |
| Leakage rate [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Yes |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 11 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally closed |
| Type | SAVA |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 25 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.35 |
| Cavitation factor 25% | 0.57 |
| Cavitation factor 50% | 0.5 |
| Cavitation factor 75% | 0.5 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | SAVA PN25 25/8 3-11 thread bypass |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Safety press. relief controller (SÜV) |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 8 m³/h |
| Leakage rate [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Bypass |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Yes |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 11 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally closed |
| Type | SAVA |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 25 |
Datasheet - PDF
