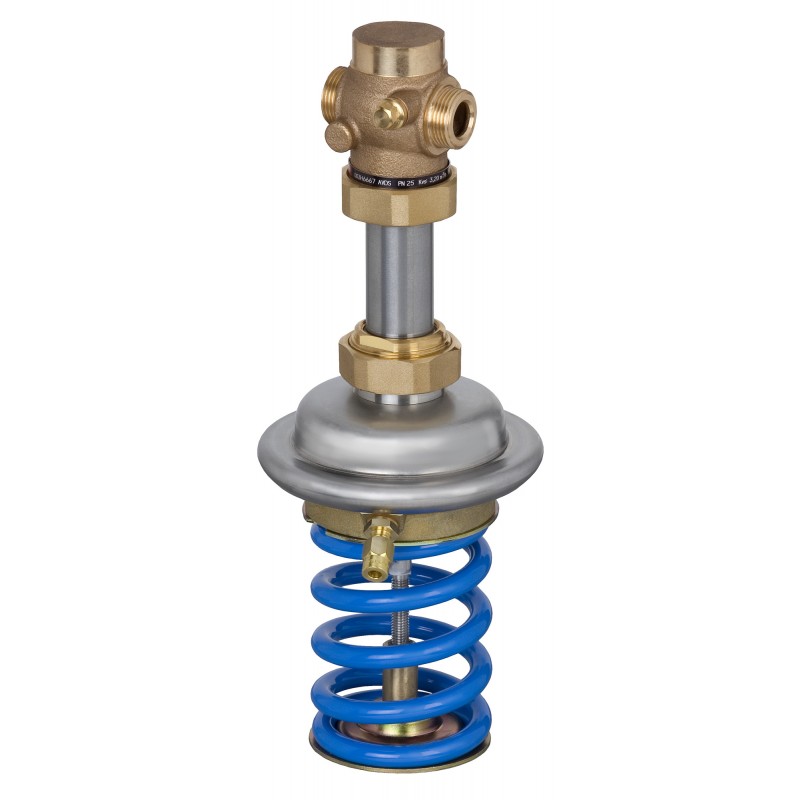

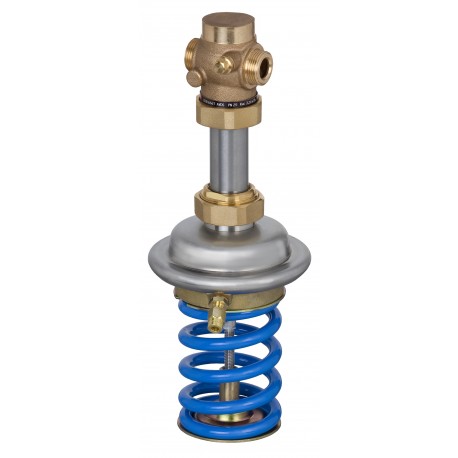

003H6670 DANFOSS HEATING AVDS PN25 15/1 3-12 поток потока/ret
003H6670
DANFOSS HEATING
AVDS PN25 15/1 3-12 поток потока/ret
AVDS, PN 25, DN 15, External Thread, G 3/4 A, Mounting version: Flow
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AVDS PN25 15/1 3-12 thread flow/ret
Product details
| Gross weight | 5.966 Kg |
| Net weight | 5.966 Kg |
| Volume | 10.793 Liter |
| EAN | 5702421541913 |
| Gross weight | 5.966 Kg |
| Net weight | 5.966 Kg |
| Volume | 10.793 Liter |
| EAN | 5702421541913 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.18 |
| Cavitation factor 25% | 0.56 |
| Cavitation factor 50% | 0.4 |
| Cavitation factor 75% | 0.32 |
| Connection size | G 3/4 A |
| Connection types | External Thread |
| Description | AVDS PN25 15/1 3-12 thread flow/ret |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | Steam |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 12 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Type | AVDS |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Stainless steel, mat. No. 1.4122 |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 15 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.18 |
| Cavitation factor 25% | 0.56 |
| Cavitation factor 50% | 0.4 |
| Cavitation factor 75% | 0.32 |
| Connection size | G 3/4 A |
| Connection types | External Thread |
| Description | AVDS PN25 15/1 3-12 thread flow/ret |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| Function VSP - P | Yes |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 1 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Circulation water |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | Steam |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 12 bar |
| Pressure setting range [bar] [Min] | 3 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Type | AVDS |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Stainless steel, mat. No. 1.4122 |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Valve size | DN 15 |
