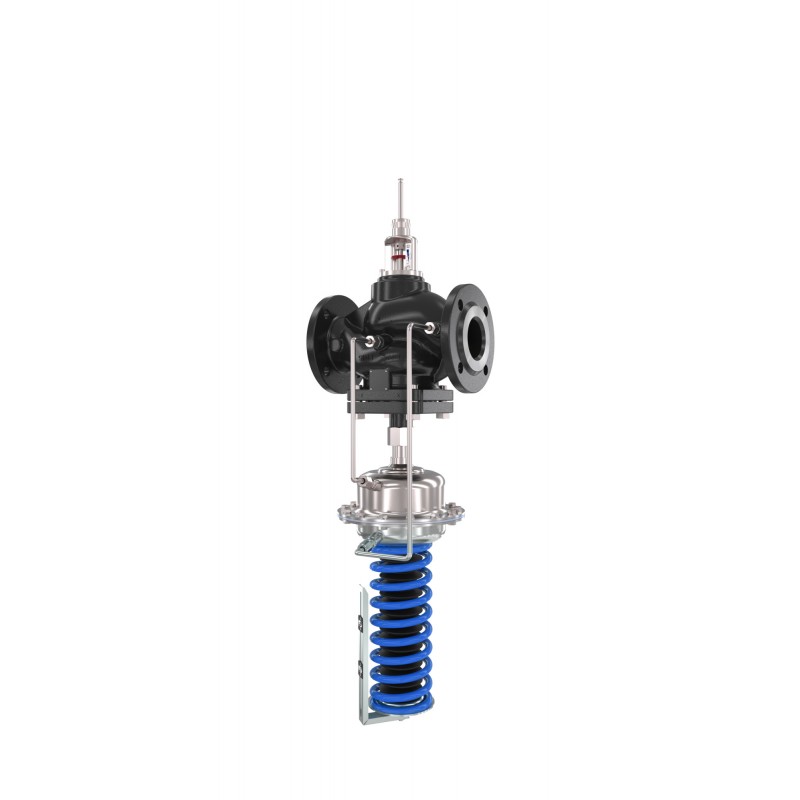

003G5575 DANFOSS HEATING AFQMP 2 PN25 200/650/0,1-1 320см2 оранг
003G5575
DANFOSS HEATING
AFQMP 2 PN25 200/650/0,1-1 320см2 оранг
AFQMP 2, PN 25, DN 200, Flow rate [m³/h]: 36.00 - 450.00, Flange, Mounting version: Free
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Pressure independent control valve
Product details
| Gross weight | 326 Kg |
| Net weight | 270 Kg |
| Volume | 1376 Liter |
| EAN | 5714279064872 |
| Gross weight | 326 Kg |
| Net weight | 270 Kg |
| Volume | 1376 Liter |
| EAN | 5714279064872 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 320 cm² |
| Application | District heating and cooling |
| Cavitation factor | 0.35 |
| Cavitation factor 100% | 0.31 |
| Cavitation factor 25% | 0.56 |
| Cavitation factor 50% | 0.44 |
| Cavitation factor 75% | 0.35 |
| Connection size | DN 200 |
| Connection types | Flange |
| Description | Pressure independent control valve |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.1 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 450 m³/h |
| Flow rate [m³/h] [Max] | 450 m³/h |
| Flow rate [m³/h] [Min] | 36 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 1 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 650 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Leakage through port max. [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 40 |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system control valve insert | Chamber |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Stroke [mm] | 28 mm |
| Type | AFQMP 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Stainless steel mat. No. 1.4021 |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 200 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 320 cm² |
| Application | District heating and cooling |
| Cavitation factor | 0.35 |
| Cavitation factor 100% | 0.31 |
| Cavitation factor 25% | 0.56 |
| Cavitation factor 50% | 0.44 |
| Cavitation factor 75% | 0.35 |
| Connection size | DN 200 |
| Connection types | Flange |
| Description | Pressure independent control valve |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.1 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 450 m³/h |
| Flow rate [m³/h] [Max] | 450 m³/h |
| Flow rate [m³/h] [Min] | 36 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 1 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 650 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Leakage through port max. [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 40 |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system control valve insert | Chamber |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Adjustable |
| Stem position | Normally open |
| Stroke [mm] | 28 mm |
| Type | AFQMP 2 |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Stainless steel mat. No. 1.4021 |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 200 |
Datasheet - PDF
