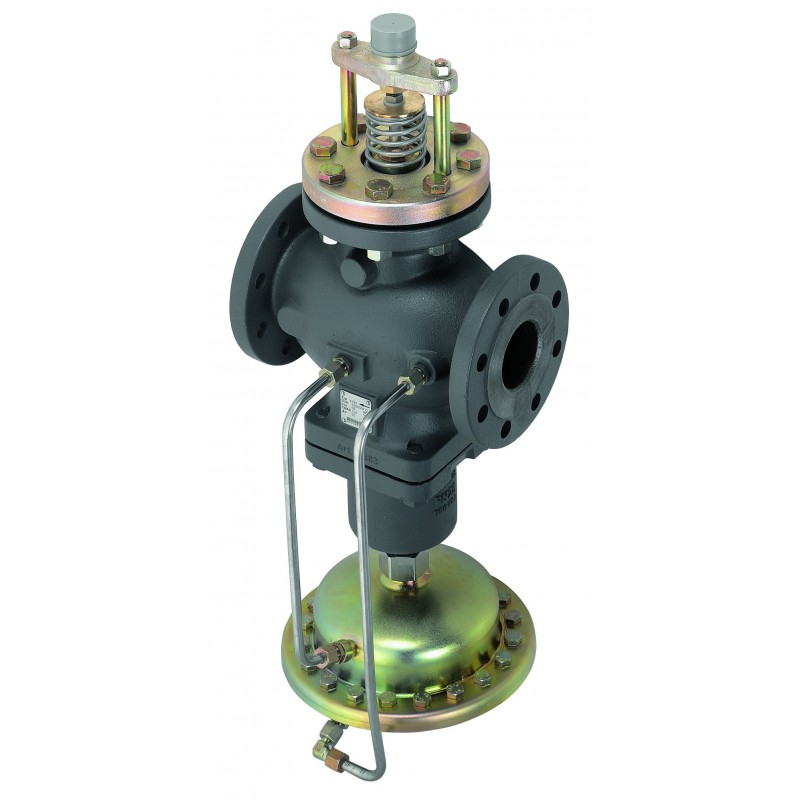

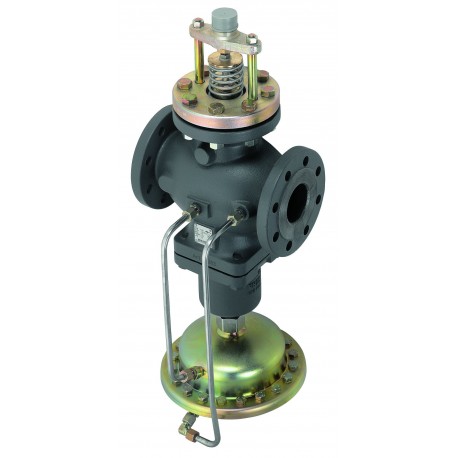

003G1084 DANFOSS HEATING AFQM 6 PN25 40/20 /0,2 поток фланца/ret
003G1084
DANFOSS HEATING
AFQM 6 PN25 40/20 /0,2 поток фланца/ret
AFQM 6, PN 25, DN 40, Flow rate [m³/h]: 2.20 - 11.00, Flange, Mounting version: Free
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AFQM 6 PN25 40/20 /0,2 flange flow/ret
Product details
| Gross weight | 33 Kg |
| Net weight | 33 Kg |
| Volume | 110.448 Liter |
| EAN | 5702421808986 |
| Gross weight | 33 Kg |
| Net weight | 33 Kg |
| Volume | 110.448 Liter |
| EAN | 5702421808986 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Application | District Heating |
| Cavitation factor | 0.55 |
| Connection size | DN 40 |
| Connection types | Flange |
| Description | AFQM 6 PN25 40/20 /0,2 flange flow/ret |
| Diameter [mm] | 40 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 11 m³/h |
| Flow rate [m³/h] [Max] | 11 m³/h |
| Flow rate [m³/h] [Min] | 2.2 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 20 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing CV material | Metal |
| Sealing DP material | EPDM |
| Setting Type | None |
| Stem position | Normally open |
| Stroke [mm] | 8 mm |
| Type | AFQM 6 |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Stainless steel mat. No. 1.4404 |
| Valve cone DP material | Stainless steel mat. No. 1.4404 |
| Valve seat material | Stainless steel M. No. 1.4021 |
| Valve size | DN 40 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 250 cm² |
| Application | District Heating |
| Cavitation factor | 0.55 |
| Connection size | DN 40 |
| Connection types | Flange |
| Description | AFQM 6 PN25 40/20 /0,2 flange flow/ret |
| Diameter [mm] | 40 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow control | Yes |
| Flow limitation | Yes |
| Flow rate [m³/h] | 11 m³/h |
| Flow rate [m³/h] [Max] | 11 m³/h |
| Flow rate [m³/h] [Min] | 2.2 m³/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Flow controller with int. control valve |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 20 m³/h |
| Leakage rate [% Kvs] | 0.01 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| Pressure controller | No |
| Pressure nominal [bar] | 25 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing CV material | Metal |
| Sealing DP material | EPDM |
| Setting Type | None |
| Stem position | Normally open |
| Stroke [mm] | 8 mm |
| Type | AFQM 6 |
| Valve body material | Ductile iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone CV material | Stainless steel mat. No. 1.4404 |
| Valve cone DP material | Stainless steel mat. No. 1.4404 |
| Valve seat material | Stainless steel M. No. 1.4021 |
| Valve size | DN 40 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
