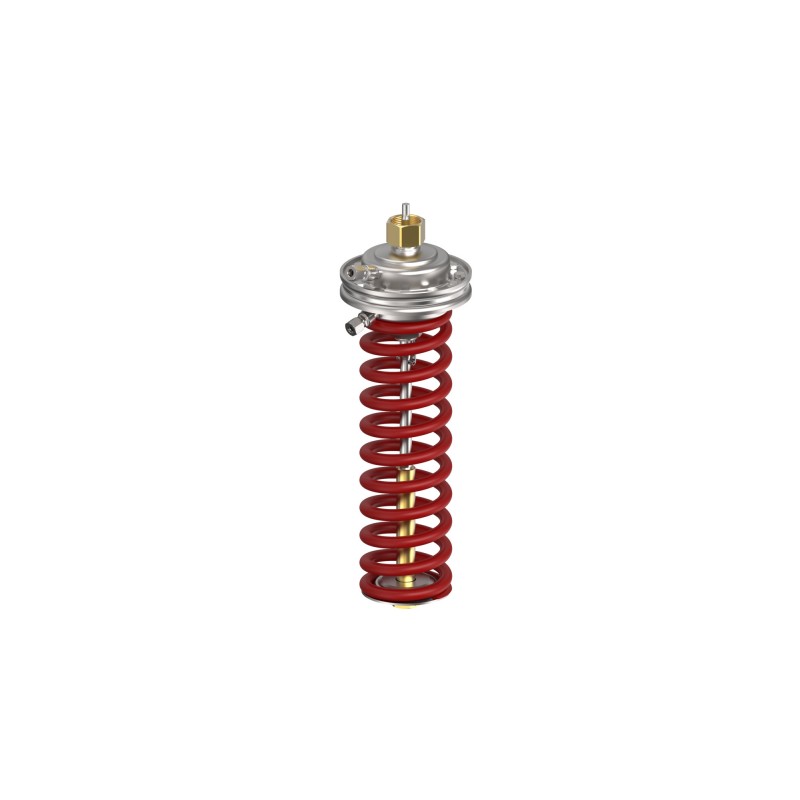

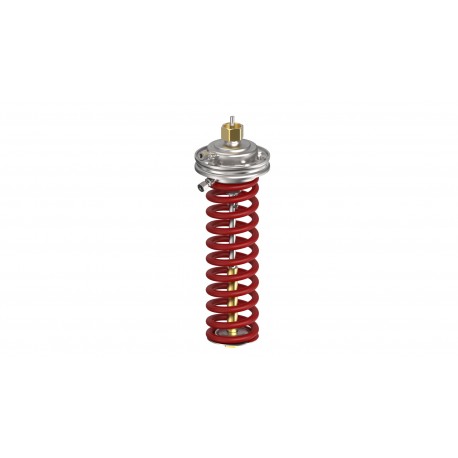

003G1003 DANFOSS HEATING AFD PB25 0,5-3 80см2 желтый
003G1003
DANFOSS HEATING
AFD PB25 0,5-3 80см2 желтый
AFD, 0.50 bar - 3.00 bar, 80 cm²
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AFD PB25 0,5-3 80cm2 yellow
Product details
| Gross weight | 7.086 Kg |
| Net weight | 6.497 Kg |
| Volume | 25.668 Liter |
| EAN | 5702421808177 |
| Gross weight | 7.086 Kg |
| Net weight | 6.497 Kg |
| Volume | 25.668 Liter |
| EAN | 5702421808177 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated |
| Description | AFD PB25 0,5-3 80cm2 yellow |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 3 bar |
| Differential pressure setting [bar] [Min] | 0.5 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 3 bar |
| Pressure setting range [bar] [Min] | 0.5 bar |
| Product group | Actuators - Pressure Flow |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
| Type | AFD |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 80 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated |
| Description | AFD PB25 0,5-3 80cm2 yellow |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 3 bar |
| Differential pressure setting [bar] [Min] | 0.5 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 3 bar |
| Pressure setting range [bar] [Min] | 0.5 bar |
| Product group | Actuators - Pressure Flow |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
| Type | AFD |
Datasheet - PDF
