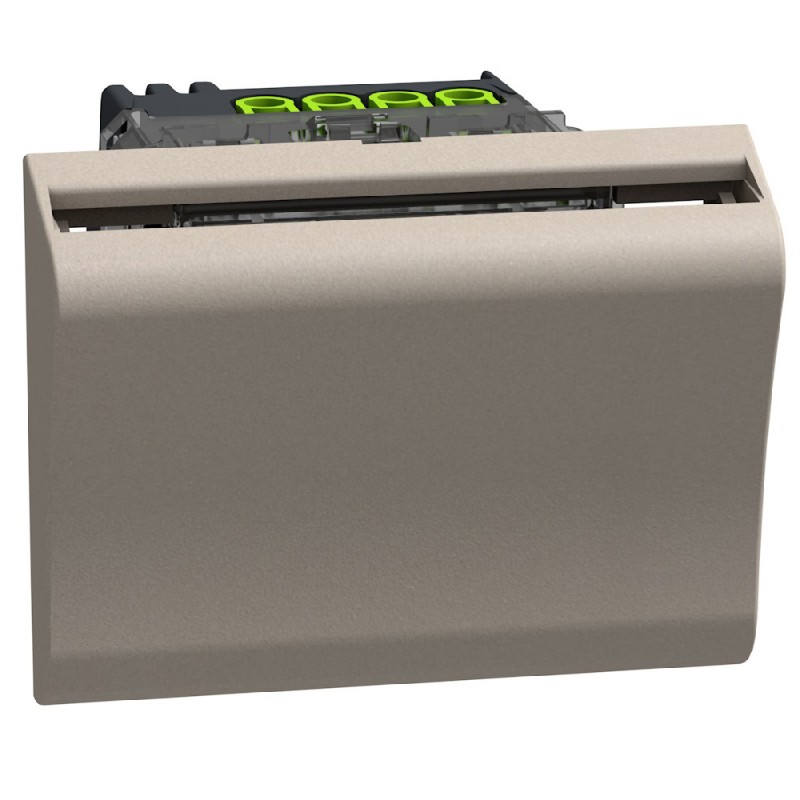

BTICINO YG4549M2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

YG4549M2 BTCINO LW-CARD HOLDER 2M ST

Code: YG4549M2

Manufacturer: BTICINO

Description:

LW-CARD HOLDER 2M ST
Light Now Card Switch - 2 Modules - Stone

Categories:

  • Domestic switching devices > Installation switch
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Card switches - 230 Vac - Illuminated slot with built-in lamp - 30 seconds delay to disconnection - To be combined with support and decorative plate - 2 modules.
Cabling SystemNormally Open Contact (NA)
Type of operationHotel Card
Type of mountingModule for system interruption program, Recessed mounted (plaster)
Number of modules (in case of modular design)2
Push Button SwitchYes
Number of rocker arms0
Attachment TypeLock in position
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentVarnishing
Surface FinishMate
ColourGrey
RAL number (similar)7008
Switching element colorGrey
Label space/print surfaceNo
LightingNo
Lighting functionOther
Lighting TypeOther
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Nominal Voltage250 V
Nominal current10 A
Switching current for fluorescent lamps10 AX
Monitoring contactsNo
Connection MethodScrew-on terminal
Heating switchNo
Washing machine switchNo
Device width61 mm
Device height45 mm
Device Depth55 mm
Installation Depth33 mm
Min. depth of the recessed box43 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for YG4549M2 Domestic wiring accessories and controls (EC001590)

Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameWiring system (EF002960)
Feature valueNormally open contact (NO)
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature namePush button switch (EF003895)
Feature valueYes
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameColour of switch operator (EF015518)
Feature valueGrey
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameHeating switch (EF016279)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value43 mm
Feature nameType of lighting (EF001401)
Feature valueOther
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameSwitching current for fluorescent lamps (EF003888)
Feature value10 AX
Feature nameBuilt-in depth (EF000218)
Feature value33 mm
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7008
Feature nameWashing machine switch (EF006316)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value55 mm
Feature nameLighting (EF000134)
Feature valueNo
Feature nameFunction lighting (EF009420)
Feature valueOther
Feature nameFeedback-signal contact (EF001181)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDevice width (EF008808)
Feature value61 mm
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameRated current (EF000227)
Feature value10 A
Feature nameColour (EF000007)
Feature valueGrey
Feature nameMethod of operation (EF000006)
Feature valueHotel key card
Feature nameNumber of rockers (EF003816)
Feature value0
