BTICINOMATIX MECHANISMSYD4441 BTCINO LW-THERMOSTAT 230V 2M DK

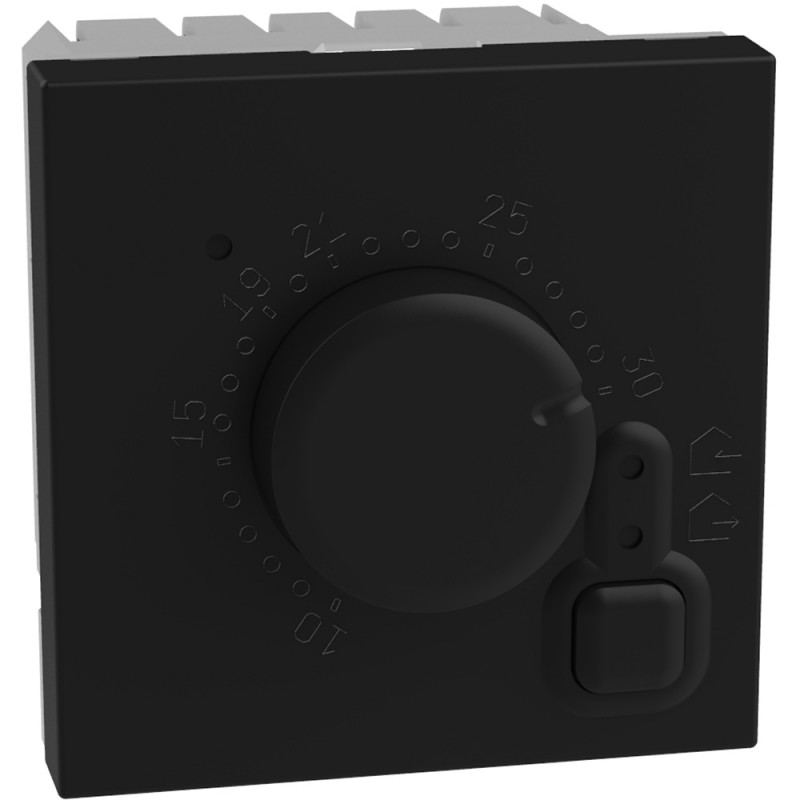

BTICINO YD4441 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

YD4441 BTCINO LW-THERMOSTAT 230V 2M DK

Code: YD4441

Manufacturer: BTICINO

Description:

LW-THERMOSTAT 230V 2M DK
Light Now Electronic Room Thermostat - 2 modules - Dark

Categories:

  • Stats, switches and controllers > Room thermostat
  • BTICINO > MATIX MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 100,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Electronic room thermostat - Relay output with contact in free switching of potential - 8A - Power supply 230 V~ - 2 modules - To be combined with support and decorative plate - Dark
ModelOpen/closed
Supply Current Type230 V AC
ConnectionThree/four threads
With receiverNo
Measuring range10-30 °C
External sensorNo
Thermal feedbacknone
Dimming FeatureP
Suitable for heatingYes
Number of outlets for heating1
Suitable for refrigerationYes
Number of outlets for cooling1
Differential value0.1-0.1 K
Adjustable differenceYes
Readable temperatureNo
With sound level indicationNo
Sensor Sensor TypeOther
Type of mountingRecessed mounted (plaster)
Number of modules (in case of modular design)2
With screenNo
OperationTurn
Background operationNo
With sanitary water circuitNo
Contact StyleExchange Contact (NA/NC)
Max. contact voltage250 V
Max. contact capacity5 A
Protection Class (IP)IP30
Degree of protection (NEMA)Other
Explosion protectionNo
ColourBlack
RAL number9011
Height45 mm
Width45 mm
Depth50 mm
Temperature Control ClassI
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Contains battery and/or accumulatorNo
IEC DesignationNot Applicable , Not Applicable
Battery or accumulator (Pack1)Not applicable
Item Composition (Pack1)Not applicable
Number of individual items (Pack1)0
Weight of an individual item (Pack1)2 %
Battery or accumulator (Pack2)Not applicable
Item Composition (Pack2)Not applicable
Pack Number20
Number of individual items (Pack2)0
Weight of an individual item (Pack2)2 %

ETIM for YD4441 Stats, switches and controllers (EC010927)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameHeight (EF000040)
Feature value45 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameOperation (EF002147)
Feature valueTurn
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameConnection (EF000443)
Feature valueThree-four-wire
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameDifferential value (EF022691)
Feature value0.1 K
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameTemperature readable (EF021360)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameControl characteristic (EF020644)
Feature valueP
Feature nameExternal sensor (EF023999)
Feature valueNo
Feature nameWith receiver (EF020643)
Feature valueNo
Feature nameClass of the temperature control (EF010595)
Feature valueI
Feature nameWith display (EF000458)
Feature valueNo
Feature nameRAL-number (EF000116)
Feature value9011
Feature nameType of power supply (EF001469)
Feature value230 V AC
Feature nameModel (EF000010)
Feature valueOn/Off
Feature nameContact type (EF001587)
Feature valueChange-over contact (NO/NC)
Feature nameNumber of heater outputs (EF020681)
Feature value1
Feature nameMax. contact load (EF022541)
Feature value5 A
Feature nameWith tap water circuit (EF020680)
Feature valueNo
Feature nameWith sound indicator (EF020683)
Feature valueNo
Feature nameNumber of cooler outputs (EF020682)
Feature value1
Feature nameMax. contact voltage (EF020286)
Feature value250 V
Feature nameConcealed operation (EF015604)
Feature valueNo
Feature nameSensor/feeler type (EF006254)
Feature valueOther
Feature nameAdjustable differential (EF024001)
Feature valueYes
Feature nameThermal feedback (EF024000)
Feature valueNone
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameSuitable for cooling (EF024798)
Feature valueYes
Feature nameDepth (EF000049)
Feature value50 mm
Feature nameColour (EF000007)
Feature valueBlack
Feature nameWidth (EF000008)
Feature value45 mm
Feature nameMeasuring range (EF001836)
Feature value10 °C
