BTICINOINSTALLATION ACCESSORIESPB502N BTCINO BT BOX EMP HOLLOW 2MOD

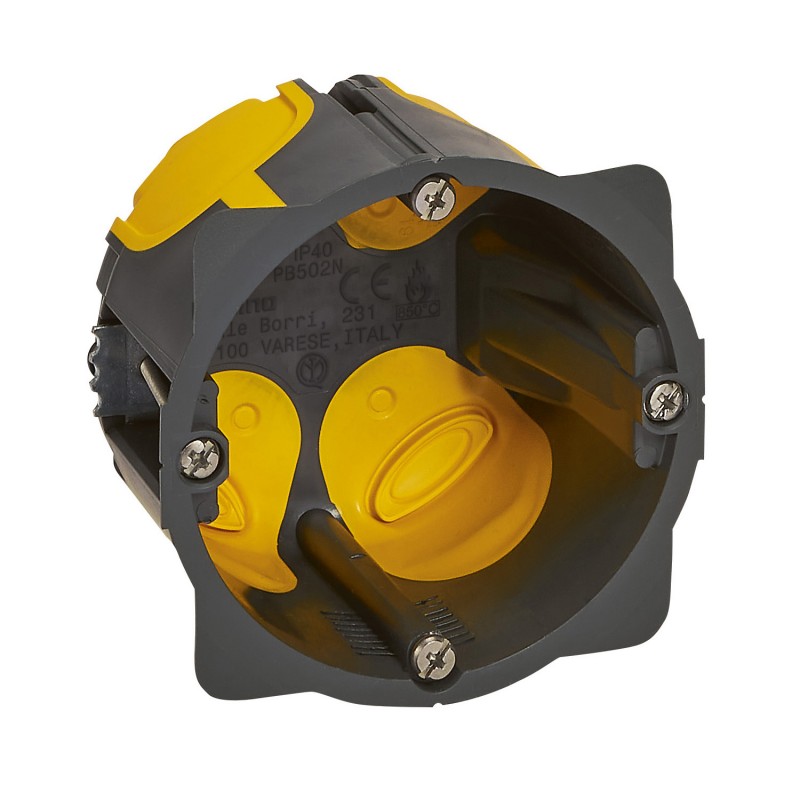

BTICINO PB502N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PB502N BTCINO BT BOX EMP HOLLOW 2MOD

Code: PB502N

Manufacturer: BTICINO

Description:

BT BOX EMP HOLLOW 2MOD
Boxes for walls with boards single and double for the installation of wiring devices
Recessed box for hollow partition. 2mod

Categories:

  • Connection devices > Box/housing for built-in mounting in the wall/ceiling
  • BTICINO > INSTALLATION ACCESSORIES

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

septum hole - 2 modules - 68 dia. x 51 mm

General characteristics

Installation accessories - boxes

ETIM for PB502N Junction and back boxes (EC002601)

Feature nameNumber of inlets (EF003593)
Feature value4
Feature nameFor tube diameter (EF005496)
Feature value20/25 mm
Feature nameInner depth (EF001131)
Feature value50 mm
Feature namePipe locking (EF005657)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueHollow wall
Feature nameDepth (EF005457)
Feature value50 mm
Feature nameSealable (EF001454)
Feature valueNo
Feature nameNumber of included spouts (EF009210)
Feature value0
Feature nameCover model (EF009212)
Feature valueNone
Feature nameNumber of non-adjustable device fixing lugs (EF017002)
Feature value0
Feature nameNumber of adjustable device fixing lugs (EF017003)
Feature value2
Feature nameInlet from the rear (EF005604)
Feature valueYes
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameSuitable for cable diameter (EF005466)
Feature value1 mm
Feature nameShape (EF000051)
Feature valueRound
Feature nameClamp position fixed (EF007889)
Feature valueNo
Feature nameModel (EF000010)
Feature valueSingle
Feature nameNumber of poles of the clamp (EF008016)
Feature value0
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueYellow
Feature nameConstruction type (EF000767)
Feature valueDevice connection box (round/square)
Feature nameWidth (EF000008)
Feature value71 mm
Feature nameMax. conductor cross section (EF004969)
Feature value2.5 mm²
Feature nameCover attachment (EF004586)
Feature valueOther
Feature nameAir tight (EF005430)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSpecial application (EF006205)
Feature valueNone
Feature nameWith partition panel (EF007973)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameCouplable (EF001229)
Feature valueNo
Feature nameHousing feed-through by step membrane (EF009208)
Feature valueNo
Feature nameHousing feed-through by nozzle (EF009207)
Feature valueYes
Feature nameCompliant with BS 4662 (EFUK0019)
Feature valueNo
Feature namePipe locking optional (EF009209)
Feature valueNo
Feature nameProvided with revolving ring (EF009204)
Feature valueNo
Feature nameDiameter (EF000551)
Feature value71 mm
Feature nameHousing feed-through by seal membrane (EF009206)
Feature valueYes
Feature nameHousing feed-through by break-out opening (EF009763)
Feature valueNo
Feature nameNozzle (EF008076)
Feature valueNone
Feature nameLuminaire hook mounting (EF004902)
Feature valueNo
Feature nameFor number of electric fittings (EF004702)
Feature value2
Feature nameLength (EF001438)
Feature value71 mm
Feature nameMounting switching equipment (EF004508)
Feature valueScrewing
