BTICINOLIVING NOWK4202P14 BTCINO LN-BASE TV INTERM 14DB 1M

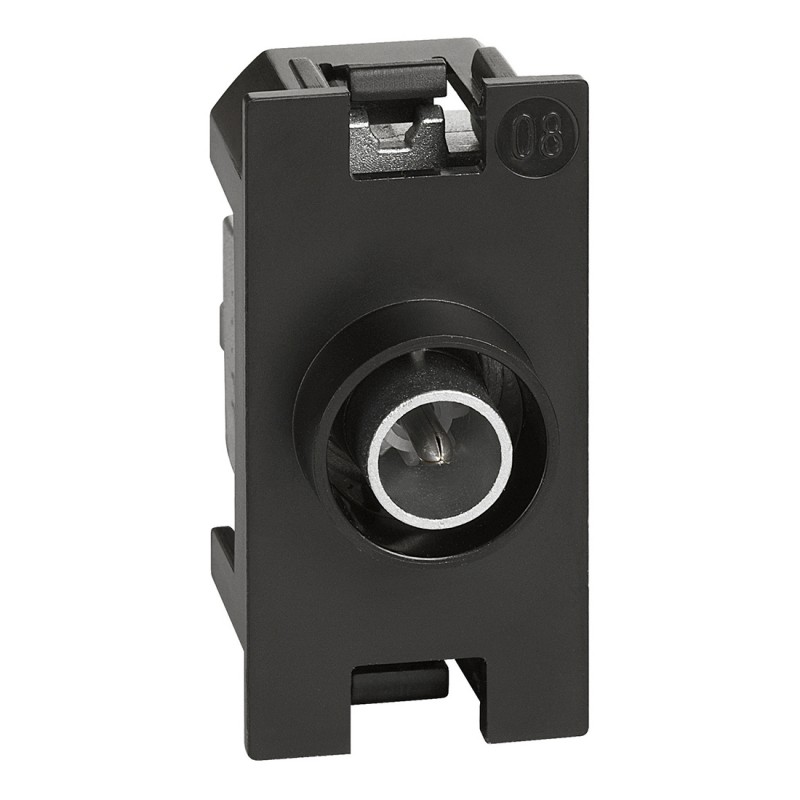

BTICINO K4202P14 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

K4202P14 BTCINO LN-BASE TV INTERM 14DB 1M

Code: K4202P14

Manufacturer: BTICINO

Description:

LN-BASE TV INTERM 14DB 1M
Living Now TV base - TV - intermediate - 1 module
Living Now TV Base - TV - intermediate - 1mod

Categories:

  • Antenna and satellite technique > Antenna socket
  • BTICINO > LIVING NOW

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 30,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

BASES TV/SAT - TV: 5-68/120-862 MHz - SAT: 950-2400 MHz - Intermediate base - 14 dB - For single-user TV and satellite installations - With current and signal pitch for channel selection - Shielded connection terminals - TV/SAT: male connector (IEC 9.5 mm) - Recommended coaxial cable: 17/19 VATC - To be combined with fronts of 1 module ref. KG/KM/KW08 or front of 2 modules ref. KG/KM/KW08M2 - 1 module

General features

Living Now - tv bases

ETIM for K4202P14 Antenna and satellite receivers (EC000439)

Feature nameType of socket outlet (EF003497)
Feature valueTV
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameTap loss at 860 MHz (EF000540)
Feature value10 dB
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameDAB+ (EF011633)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueModule frame/grid
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameMaterial quality (EF001257)
Feature valueUrea formaldehyde
Feature nameNumber of modules (module system) (EF009573)
Feature value1
Feature nameMin. depth of built-in installation box (EF012278)
Feature value32 mm
Feature nameSuitable for cable modem (EF001547)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameSuitable for remote power supply (EF001548)
Feature valueNo
Feature nameThrough loss at 860 MHz (EF000539)
Feature value10 dB
Feature nameNumber of outlets (EF000538)
Feature value1
Feature nameRAL-number (similar) (EF003882)
Feature value7015
Feature nameModel (EF000010)
Feature valueLoop-through socket
Feature nameCover (EF000055)
Feature valueCentral cover plate
Feature nameDevice depth (EF008810)
Feature value31 mm
Feature nameImpact strength (EF004293)
Feature valueIK02
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameRadio frequency band (EF017378)
Feature value87.5 MHz
Feature nameSAT frequency band (EF017379)
Feature value950 MHz
Feature nameTV frequency band (EF017377)
Feature value5 MHz
Feature nameDevice width (EF008808)
Feature value22 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueBlack

DATASHEET - PDF

Title
Size
Type
K4202P14 EN_K4202P10.pdf
362 Kbytes
PDF CATALOGUE BTICINO EN
19 Mbytes
