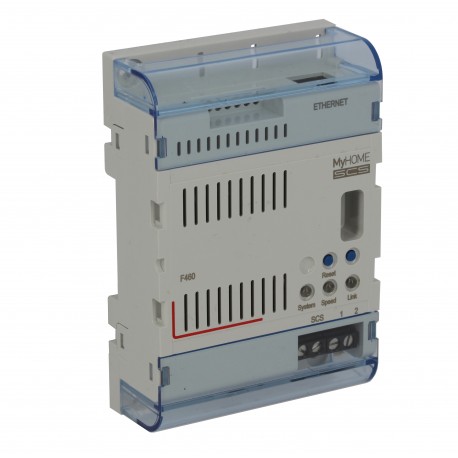

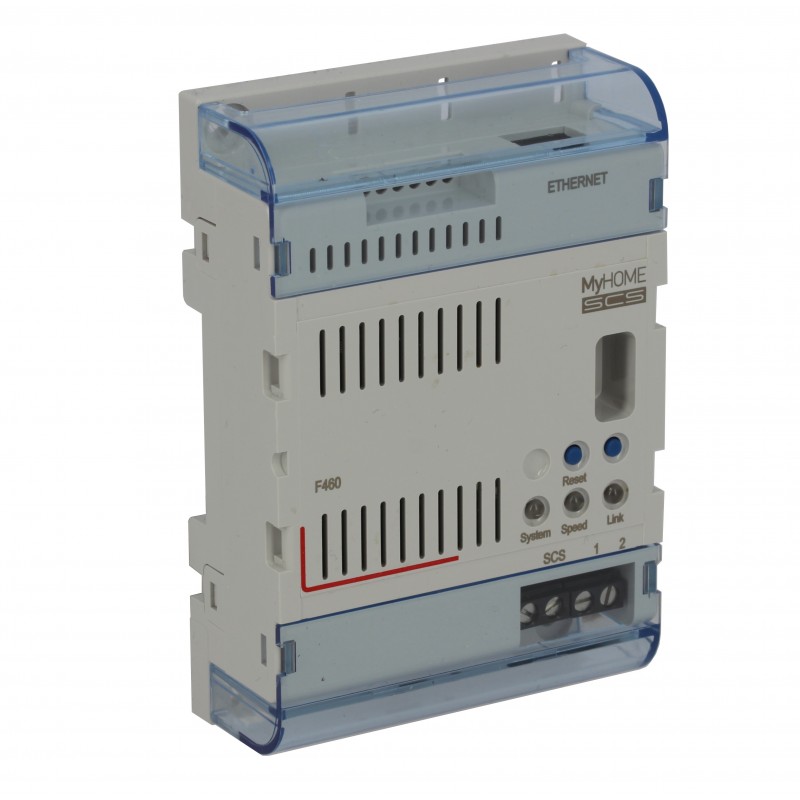

F460 BTCINO MYHOME SERVER SCS

4-module DIN server to manage the MyHome BUS_SCS system. It integrates humidity management as well as 175 directions with the possibility of extension by adding maximum 2 F422A (SCS Interface). Server for associating devices during commissioning by the installer in the Home + Project app and for local and remote management by the end user in the Home + Control app (Android and iOS). Third-party integration. The server allows you to make customizations and create scenarios to manage the MyHome system. It can be combined with a touchscreen (HomeTouch).

KNX bus system	No
KNX-RF bus system (radio frequency)	No
Radio frequency bus system	No
LON Bus System	No
Powernet Bus System	No
Other bus systems	Other
Bidirectional Radio Frequency	No
Model	Ethernet Interface
Type of mounting	DRA (DIN rail adapter)
Width in number of modular spaces	4
Disassembly Protection	No
With LED indicator	Yes
Updatable	Yes
Operating voltage	18-27 V
Type of voltage	CC
Protocol	TCP/IP
Supplier dependent	No
Visualization	No
Web server	Yes
Radio Interface	No
Infrared interface	No
Protection Class (IP)	IP30
Width	72 mm
Height	105 mm

Depth	36 mm
Impact resistance	Not applicable
Operating Temperature	5-35 °C
Storage temperature	-10-70 °C
Nominal current	0.003-0.160 A
Display of markings on the connection terminals	Yes
Load Type	Not applicable
Halogen-free	Yes
Connection Method	Screw-on terminal
Connection type	Cable
Label Space/Print Area	No
USB port	Yes
Addressable	Yes
Connected Object	Yes
App download platform	Google Play Store, Mac Apple Store
With voice command	Yes
Programmable	Yes
Connection Protocol Interoperability	Yes
Possibility of connection via Internet box	Yes
Supported voice assistants	Amazon Alexa, Google Assistant
Product usage function	Control and command systems
App Name	Home + Control
Programming medium	Smartphone apps
