BTICINODOMOTICS MY HOMEF422A BTCINO MH INTERFACE EXT. DIRECC.

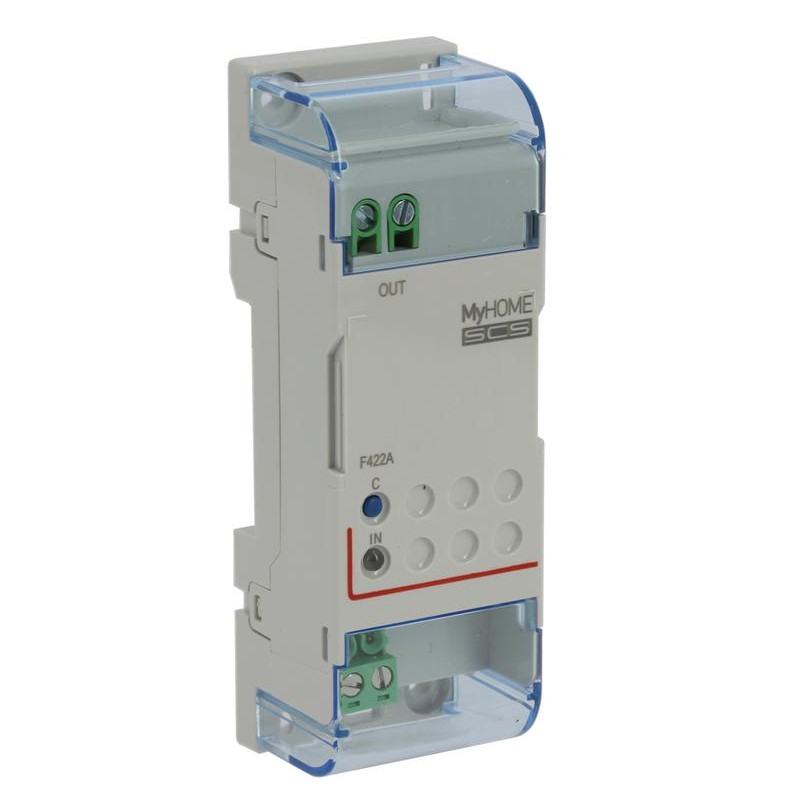

BTICINO F422A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

F422A BTCINO MH INTERFACE EXT. DIRECC.

Code: F422A

Manufacturer: BTICINO

Description:

MH INTERFACE EXT. DIRECC.
BUS interface - BUS for MyHome installation extension - 2 modules
BUS - BUS interface for MyHome installation extension - 2mod

Categories:

  • Installation bus systems > System interface/media gateway for bus system
  • BTICINO > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by BTICINO

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 86,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

2-module DIN BUS expansion to add addresses and functions that the F422 does not support. It can be used with both the F460 server and the Classe 300EOS with Netatmo. Each interface can add 175 addresses. Maximum 2 F422A per installation (F460 with 2 F422A max or Classe 300EOS with 1 F 422A max). It allows large installations to be configured up to 525 addresses.
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsOther
ModelOther
Type of mountingDRA (DIN rail adapter)
Width in number of modular spaces2
Disassembly ProtectionNo
With LED indicatorYes
UpdatableNo
Operating voltage27-27 V
Type of voltageCC
ProtocolOther
Supplier dependentNo
VisualizationNo
Web serverNo
Radio InterfaceNo
Infrared interfaceNo
Protection Class (IP)IP20
Width35.6 mm
Height105 mm
Depth30.35 mm
Operating Temperature5-55 °C
Storage temperature-25-70 °C
Display of markings on the connection terminalsYes
Halogen-freeYes
Terminal capacity0.5-1.5 mm²
Connected ObjectNo

ETIM for F422A Installation bus systems (EC001099)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameRadio interface (EF003849)
Feature valueNo
Feature nameUpdateable (EF003903)
Feature valueNo
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameProvider dependent (EF003881)
Feature valueNo
Feature nameModel (EF000010)
Feature valueOther
Feature nameProtocol (EF003880)
Feature valueOther
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameIR interface (EF003861)
Feature valueNo
Feature nameOperating voltage (EF003983)
Feature value27 V
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameWeb-Server (EF003915)
Feature valueNo
Feature nameDemounting protection (EF003836)
Feature valueNo
Feature nameVisualization (EF003913)
Feature valueNo
