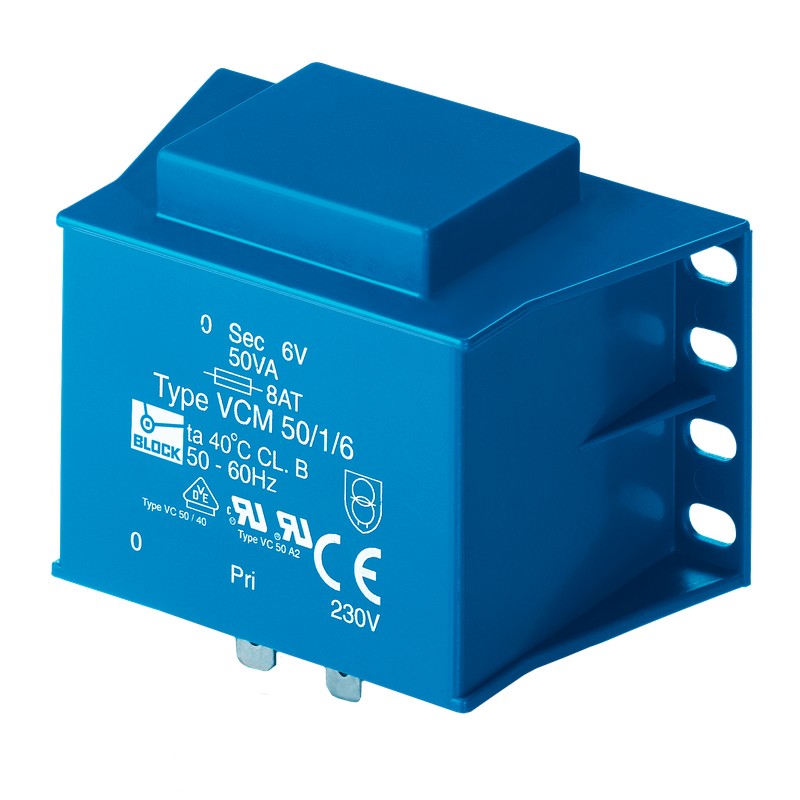

BLOCK VCM 5,0/1/24 VCM 5,0/1/24 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

VCM 5,0/1/24 BLOCK PCB Transformers

Reference: VCM 5,0/1/24

Manufacturer: BLOCK

Description:

PCB Transformers
PCB Transformers VCM 5,0/1/24
PCB transformer, safety isolating transformer, mountable

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 11,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The PCB transformers of the VCM series provide galvanic isolation of the primary circuit from the secondary circuit and are equipped with lugs on the housing for additional mounting options. Thanks to the unique XtraDenseFill resin encapsulation process, the transformers offer permanent corrosion protection, high insulation value, and maximum electrical conductivity.

›Safety isolating transformer according to EN (IEC) 61558-2-6

›Minimal size with high performance

›Self-extinguishing encapsulation material

ProductPCB transformer, safety isolating transformer, mountable
Order numberVCM 50/1/24
SeriesVCM
Power50 VA
Input230 V
Output24 V • 2.08 Aac
Phases1
Frequency range50 Hz to 60 Hz
No-Load Losses3.8 W
EN Insulation classB (130°C)
UL Insulation classclass 105
Duty Cycle100 %
Wire materialCopper
Efficiency87 %
General
Short circuit proofnot short-circuit proof
Switching groupIi0
Cooling typeAN
Environment
Ambient temperature-20 °C to 40 °C / -4 °F to 104 °F
Max. installation height2,000 m / 6,562 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)II
Overvoltage categoryIII
Degree of contamination1
Electrical Connections
Input terminalFlat plug connection
Output terminalFlat plug connection
Size and Weight
Width61 mm / 2.4 in
Height58.5 mm / 2.3 in
Depth94 mm / 3.7 in
Weight1.067 kg / 2.352 lbs

DATASHEET - PDF

Title
Size
Type
VCM 5,0/1/24 VCM 5,0/1/24 EN_VCM 5,0_1_24.pdf
336 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
