BLOCKRKD 100/2x9 BLOCK Toroidal Transformers

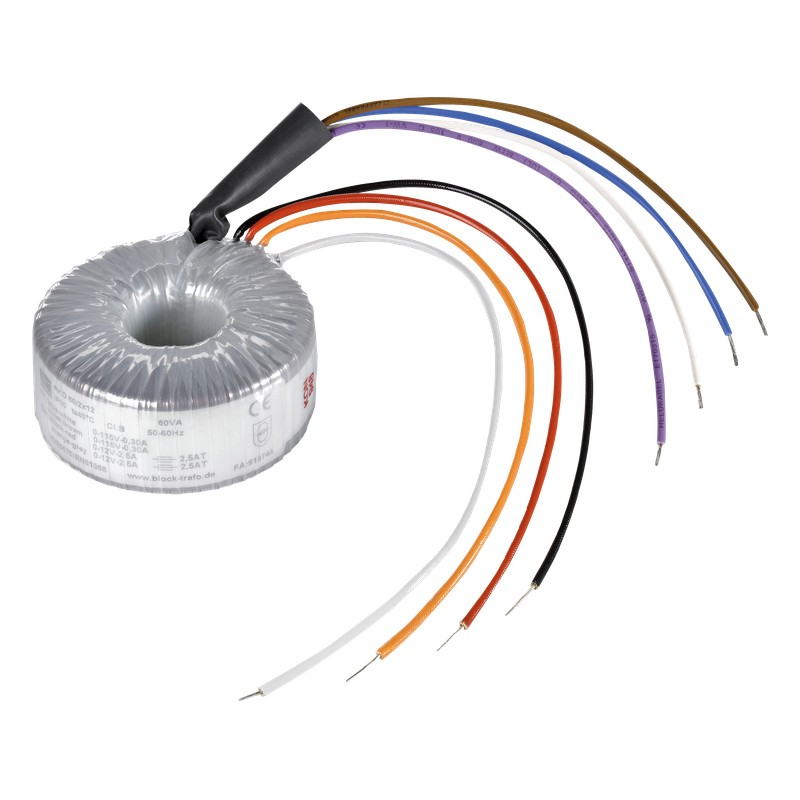

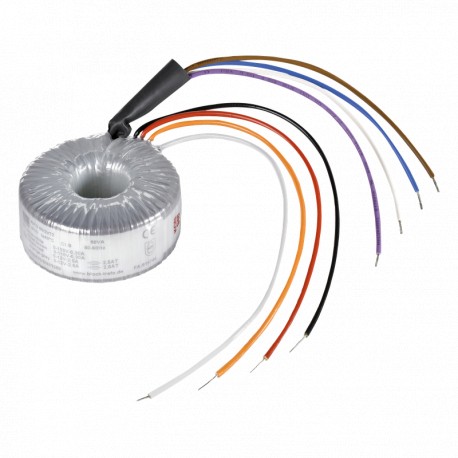

BLOCK RKD 100/2x9 RKD 100/2x9 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RKD 100/2x9 BLOCK Toroidal Transformers

Reference: RKD 100/2x9

Manufacturer: BLOCK

Description:

Toroidal Transformers
Toroidal Transformers RKD 100/2x9
Toroidal transformers, safety isolating transformer

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 62,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The toroidal transformers of the RKD series enable space-saving use due to minimal size with maximum performance. The low magnetic stray field does not affect surrounding components and ensures excellent temperature behavior. The connections can be soldered directly onto a PCB.

›Safety isolating transformer according to EN (IEC) 61558-2-6

›Lightweight

›Dual input and dual output coils for series or parallel connection

›Minimal no-load losses

›Very low noise field

ProductToroidal transformers, safety isolating transformer
Order numberRKD 100/2x9
SeriesRKD
Power100 VA
Input2 x 115 V
Output2 x 9 V • 5.56 Aac
Phases1
Frequency range50 Hz to 60 Hz
Short-Circuit Losses13.1 W
No-Load Losses0.67 W
EN Insulation classB (130°C)
UL Insulation classclass 105
Duty Cycle100 %
Wire materialCopper
Efficiency87.9 %
General
Short circuit proofnot short-circuit proof
Switching groupIIii0
Cooling typeAN
Environment
Ambient temperature-20 °C to 40 °C / -4 °F to 104 °F
Max. installation height2,000 m / 6,562 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)II
Overvoltage categoryIII
Degree of contamination2
Electrical Connections
Input terminalStranded wire
Output terminalWire connection
Size and Weight
Width94 mm / 3.7 in
Height45 mm / 1.77 in
Depth94 mm / 3.7 in
Weight1.2 kg / 2.646 lbs

DATASHEET - PDF

Title
Size
Type
RKD 100/2x9 RKD 100/2x9 EN_RKD 100_2x9.pdf
52 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
