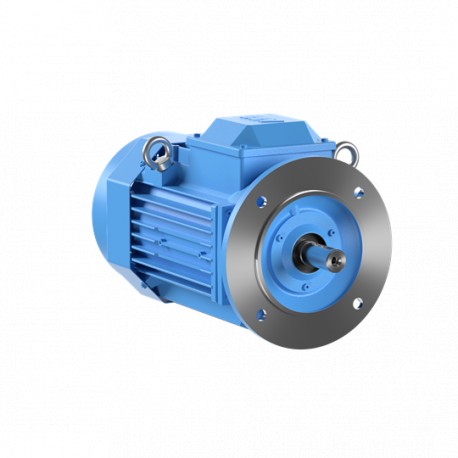

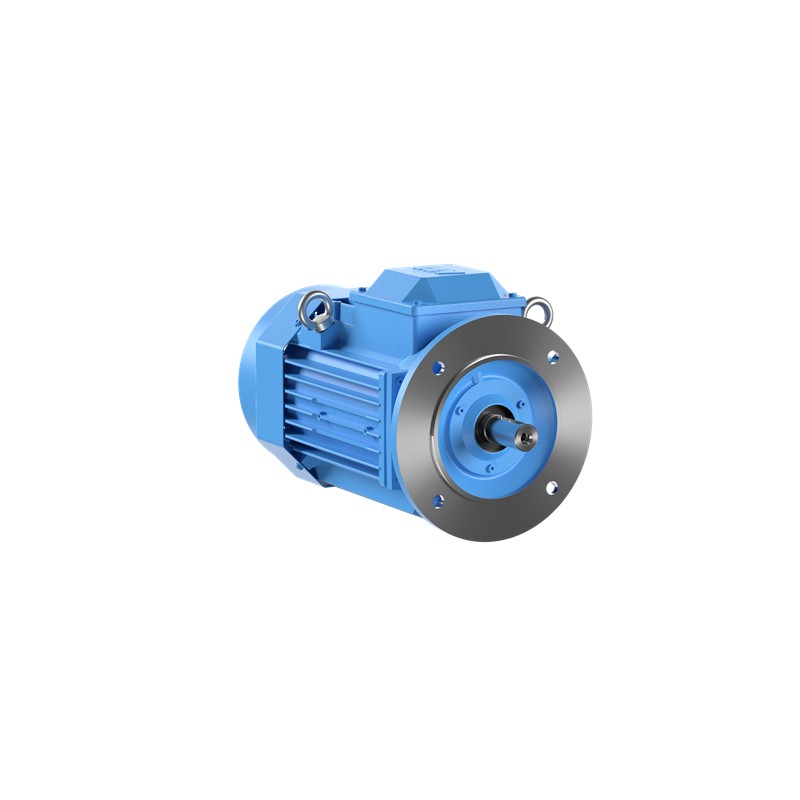

ABB M3BP 90 LH 3GBP093580-CSK - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M3BP 90 LH 3GBP093580-CSK ABB M3BP 90LH 6

Reference: M3BP 90 LH

Code: 3GBP093580-CSK

Manufacturer: ABB

Description:

M3BP 90LH 6

Categories:

  • ABB > Motors for process industry M3BP

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Product ID:
    3GBP093580-CSK
  • ABB Type Designation:
    M3BP 90LH 6
  • Catalog Description:
    M3BP 90LH 6

Additional Information

  • ABB Type Designation:
    M3BP 90LH 6
  • Altitude:
    1000 m
  • Ambient Temperature:
    40 °C
  • Bearing:
    6205-2Z/C3
  • Bearing NDE:
    6204-2Z/C3
  • Country of Origin:
    Finland (FI)
  • Customs Tariff Number:
    85015220
  • Direction of Rotation:
    Both sides
  • Electrical Data:
    ConnTemp ClassFreqVoltagePowerSpeedCurrentPower FactorEfficiencyTorqueIS/IN
    Y--50 Hz400 V1.10 kW944 r/min2.62 A0.75081.00 %11.10 N·m4.70
    D--50 Hz230 V1.10 kW944 r/min4.50 A0.75081.00 %11.10 N·m4.70
    Y--50 Hz380 V1.10 kW936 r/min2.70 A0.77081.00 %11.20 N·m4.30
    D--50 Hz220 V1.10 kW936 r/min4.66 A0.77081.00 %11.20 N·m4.30
    Y--50 Hz415 V1.10 kW949 r/min2.50 A0.73081.00 %11.10 N·m5.00
  • Gross Weight:
    36kg
  • IC Class:
    IC411
  • IE Class Data (50 Hz):
    IE Class IE3
    Full Load (100%) 81.0 %
    Partial Load (75%) 81.7 %
    Partial Load (50%) 80.1 %
  • IE Class Data (60 Hz):
    IE Class IE1
    Full Load (100%) 75.0 %
    Partial Load (75%) 76.2 %
    Partial Load (50%) 74.4 %
  • IM Class:
    IMB14 IM3601
  • IP Class:
    IP55
  • Insulation Class:
    ICLF
  • Invoice Description:
    M3BP 90LH 6
  • Made To Order:
    No
  • Minimum Order Quantity:
    1 piece
  • Number of Poles (High):
    6
  • Order Multiple:
    1 piece
  • Package Level 1 Units:
    0 carton
  • Pre Modified Motor Product ID:
    3GBP093580-BSK
  • Product Name:
    3-Phase squirrel cage motor
  • Product Net Weight:
    33kg
  • Product Type:
    3BP3__M3BP_IE3_CI
  • Quote Only:
    No
  • SCIP:
    54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)
  • Selling Unit of Measure:
    piece
  • Temperature Class Default:
    --
  • Terminator Box Location:
    D-End top
  • Two Speed Motor:
    No
  • Type of Duty:
    S1
  • UNSPSC:
    26101100
  • Voltage Code:
    S
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
