Images are for illustrative purposes only. Please refer to data sheet for details.

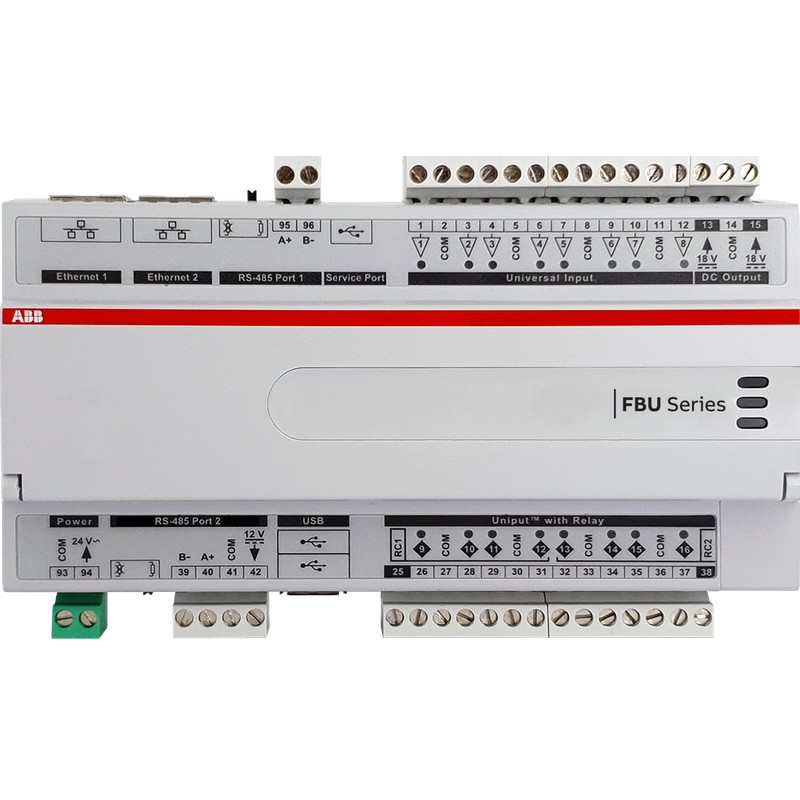

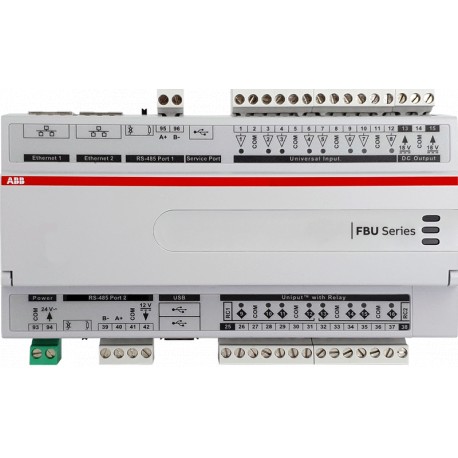

FBU-8R8 ABB FBU-8R8 Unitron Controller 16 I/O

Reference: FBU-8R8

Manufacturer: ABB

Description:

FBU-8R8 Unitron Controller 16 I/O

Categories:

Stats, switches and controllers > Free programmable controller
ABB

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Installation
Instructions and Manuals	MAN0164
Environmental
Ambient Air Temperature	Around the Enclosure -25 … 50 °C
Degree of Protection	IP20
Technical
Data Sheet, Technical Information	DS0145
	BDS0042
Communication Interface	IP, MS/TP
Number of Channels	16
Number of Digital Inputs	8
Analog Inputs	1
Analog Outputs	1
Electrical
Supply Voltage	24 … 24 V
Voltage Range	19.2 ... 28.8 V
Input Voltage Type	AC
Power Consumption (@P_cons)	30 V·A
Dimensions
Product Net Width	90 mm
Product Net Height	57 mm
Product Net Depth / Length	163 mm
Product Net Weight	0.3 kg
Engineering
Building Information Modeling – BIM	N
Material Compliance
RoHS Declaration	CDOC1809
RoHS Information	Following EU Directive 2011/65/EU
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business
Certificates and Declarations
Declaration of Conformity - CE	CDOC1809
External Classifications and Standards
ETIM 9	EC011487 - Free programmable controller
ETIM 10	EC011487 - Free programmable controller
