ABB 4TBA831131C0100 4TBA831131C0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

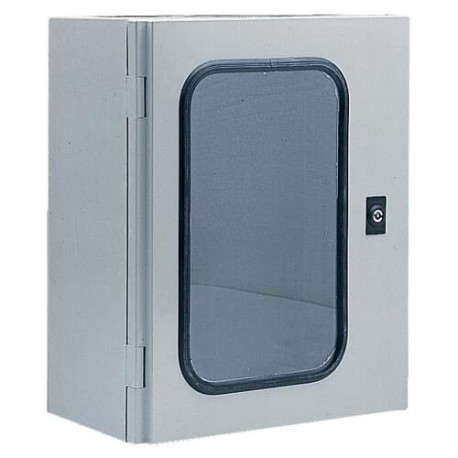

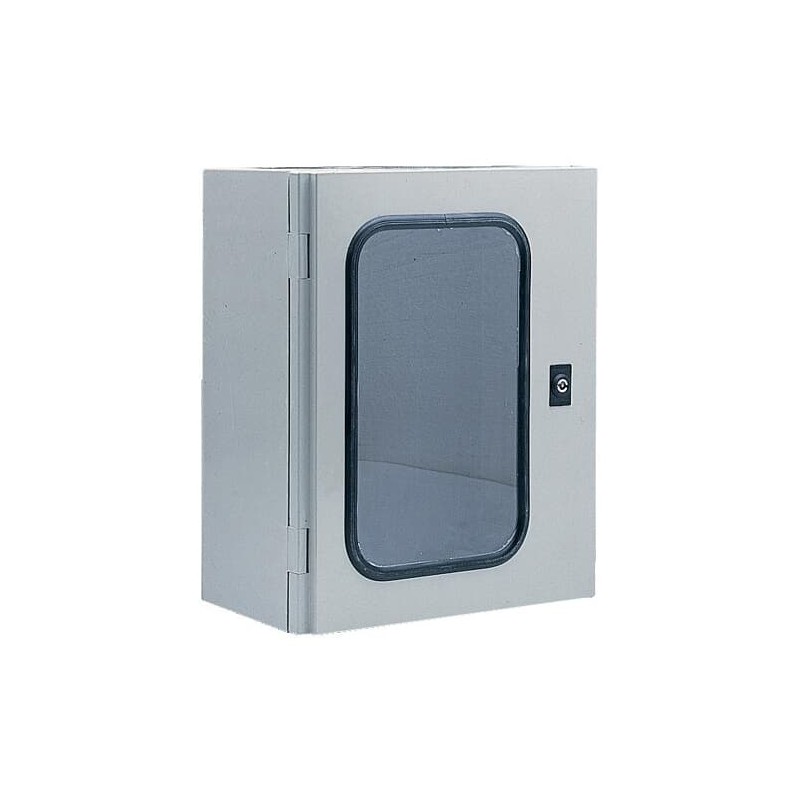

4TBA831131C0100 ABB WARDROBE ARIA 75V

Reference: 4TBA831131C0100

Manufacturer: ABB

Description:

WARDROBE ARIA 75V

ARIA 75 + WINDOW

Categories:

Cabinet enclosures > Enclosure/switchgear cabinet (empty)
ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 373,31 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Maximum Load Capacity	Enclosure 1334.16 N
	Door(s) 78.48 N
	Mounting Plate 1334.16 N
Number of Flange Openings	0
Number of Connection Holes	0
Number of Conduit Inlets	0
Number of Doors	1
Number of Rows	0
Cover Plate Type	Door
Enclosure Type NEMA	Type12
Door Type	Single
Door Surface Finishing	Transparent
Accessories Available	Yes
Impact Resistance Rating	IK07
Electrical
Power Loss	Total 67 W
	Δt = 20K - Enclosures 67 W
Design
Surface Finishing	Untreated
Housing Material	Plastic
Material	GRP (Glass fibre reinforced plastic)
Cover Style	Closed
RAL Number	RAL 7035 - Light Grey
Color	Grey
Number of Modules	0
Material Compliance
RoHS Declaration	9AJK000579
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20220302
REACH Declaration	9AJK000617
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20230911
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Environmental
Degree of Protection	IP54
Protection Class	Isolated (Class II)
Dimensions
Width in Number of Modular Spacings	0
Product Net Width	535 mm
Product Net Height	735 mm
Product Net Depth / Length	276 mm
Product Net Weight	11.8 kg
Thickness	Cabinet Plate 3 mm
	Door Plate 3 mm
Ordering
Package Level 1 Units	box 1 piece
Package Level 1 Gross Weight	12.5 kg
Replaced Product ID (OLD)	831131
Certificates and Declarations
Declaration of Conformity - CE	9AJK000579
Installation
Mounting Type	Surface mounted
Popular Downloads
Data Sheet, Technical Information	9AKK107680A5160
	2CKA000001A1855
External Classifications and Standards
ETIM 9	EC000261 - Enclosure/cabinet (empty)
ETIM 10	EC000261 - Enclosure/cabinet (empty)
UNSPSC	39121103
eClass	V11.0 : 27142408

DATASHEET - PDF

Title

Size

Type

PDF CATALOG ABB ELECTRICAL CONSUMER EN

14 Mbytes
