Images are for illustrative purposes only. Please refer to data sheet for details.

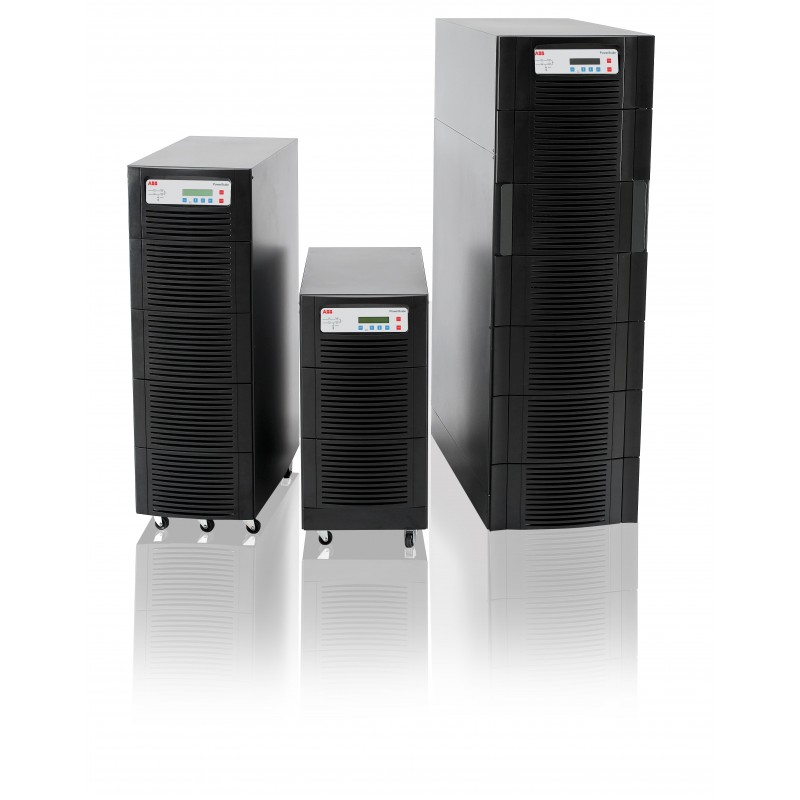

4NWP103584B1530 ABB Powerscale 33 15kVA Cab.B UPS 30 min

Code: 4NWP103584B1530

Manufacturer: ABB

Description:

Powerscale 33 15kVA Cab.B UPS 30 min

UPS Powerscale 33 15kVA Cab.B 30 min

Categories:

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 21.319,64 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Material Compliance
Conflict Minerals Notification Template (CMRT)	9AKK108467A5658
REACH Declaration	4NWD005611
RoHS Information	4NWD005610
RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
Popular Downloads
Technical data, technical information	4NWD003515
Instructions and manuals	04-3004
Environment
classification
Minimum order quantity	1 piece
Tariff code	85044000
E Number (Finland)	8408588
E Number (Norway)	6600728
Country of origin	Italy
Dimensions
Product Width	345 mm
Product height	1045 mm
Product length	710 mm
Product Weight	298 kg
Packaging Information
Packaging Level 1 Units	1 piece
Packaging Level 1 Width	450 mm
Packaging Level 1 High	1240 mm
Level 1 Long Packaging	800 mm
Packaging Level 1 Weight	310 kg
EAN Level 1 Packaging	7640169261534
Technique
Apparent power output	15 V·A
Battery Chemistry	Lead acid
Battery type	Portable
Battery weight	2.5 kg
Communication interface	USB, RS-232
Connection type	Fixed connection
Input voltage (U_in)	380 V
	400 V
	415 V
Input voltage type	Ac
Number of batteries	92
Number of outputs	Fixed Connections 1
Number of phases	3-phase Primary
	3-phase Secondary
Options Provided	Auto shut down function
	Potential free switch contact
	Network-management
Nominal Frequency (f)	Primary 50 Hz
	Primary 60 Hz
	Secondary 50 Hz
	Secondary 60 Hz
Output power rating	13.5 kW
Certificates and Declarations (Document Number)
Declaration of Conformity - CCC	No certification needed
Declaration of Conformity - CE	4NWD003874
External Classifications and Standards
WEEE Category	4. Large equipment (any external dimension more than 50cm)
WEEE B2C / B2B	From company to company
CN8	85044000
Object Classification Code	G
