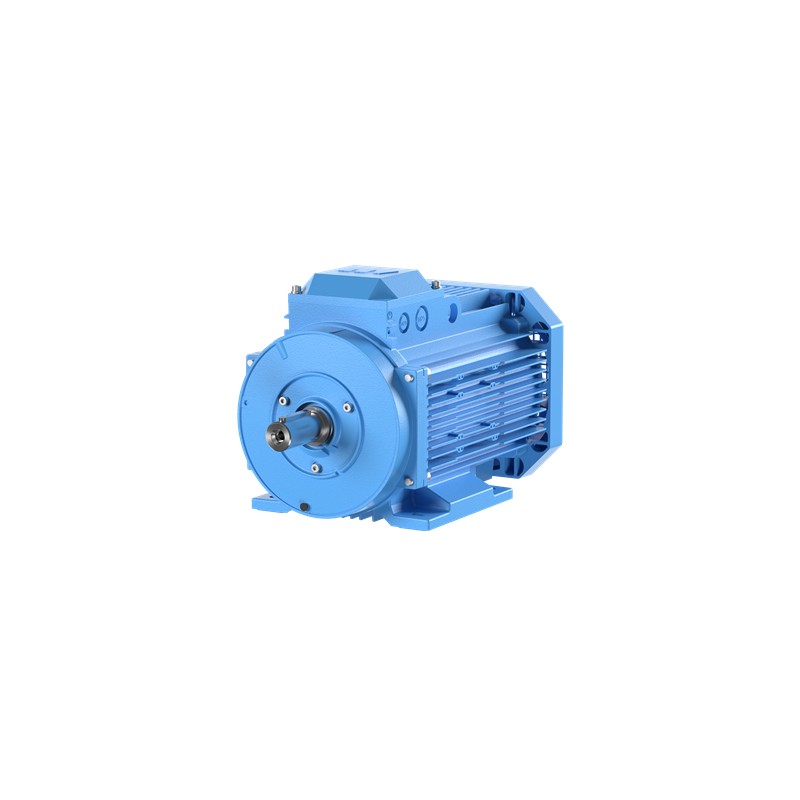

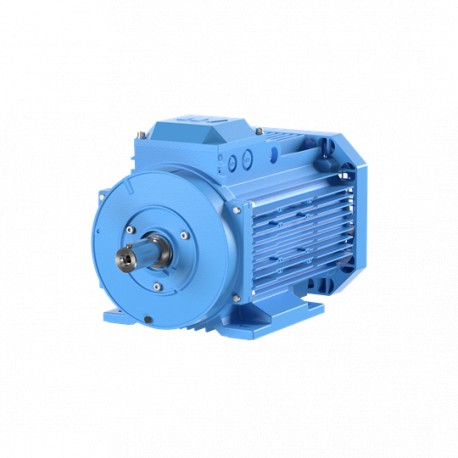

3GAA102002-BSE ABB Motor de aluminio M2AA 100LB 4

Additional Information

• ABB Type Designation:

  M2AA 100LB 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6306-2Z/C3


• Bearing NDE:

  6205-2Z/C3


• Core Credit:

  0.00


• Country of Origin:

  China (CN)
  Sweden (SE)
  Poland (PL)


• Customs Tariff Number:

  85015220


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	3.00 kW	1430 r/min	6.50 A	0.780	84.60 %	20.00 N·m	6.40
  D	--	50 Hz	230 V	3.00 kW	1430 r/min	11.30 A	0.780	84.60 %	20.00 N·m	6.40
  Y	--	50 Hz	415 V	3.00 kW	1440 r/min	6.70 A	0.740	84.10 %	20.00 N·m	6.50
  Y	--	60 Hz	460 V	3.00 kW	1740 r/min	5.60 A	0.770	87.10 %	16.40 N·m	7.60

• Frame Material:

  Aluminum


• Frame Size:

  100


• Gross Weight:

  29kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE1
  Full Load (100%) 84.1 %
  Partial Load (75%) 84.0 %
  Partial Load (50%) 81.2 %


• IE Class Data (60 Hz):

  IE Class IE1
  Full Load (100%) 87.1 %
  Partial Load (75%) 87.5 %
  Partial Load (50%) 85.8 %


• IM Class:

  IMB5 IM3001


• Insulation Class:

  ICLF


• Invoice Description:

  M2AA 100LB 4


• IP Rating:

  IP55


• Lubrication:

  For life


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  24kg


• Product Type:

  2AA1__M2AA_IE1_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA102002-BSA
  3GAA102062-BSA


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Standards:

  IEC 60034-1


• Stocked At (Warehouses):

  Menden, Germany
  Sant Quirze del Vallés - BCN, Spain
  Alabama, United States


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
