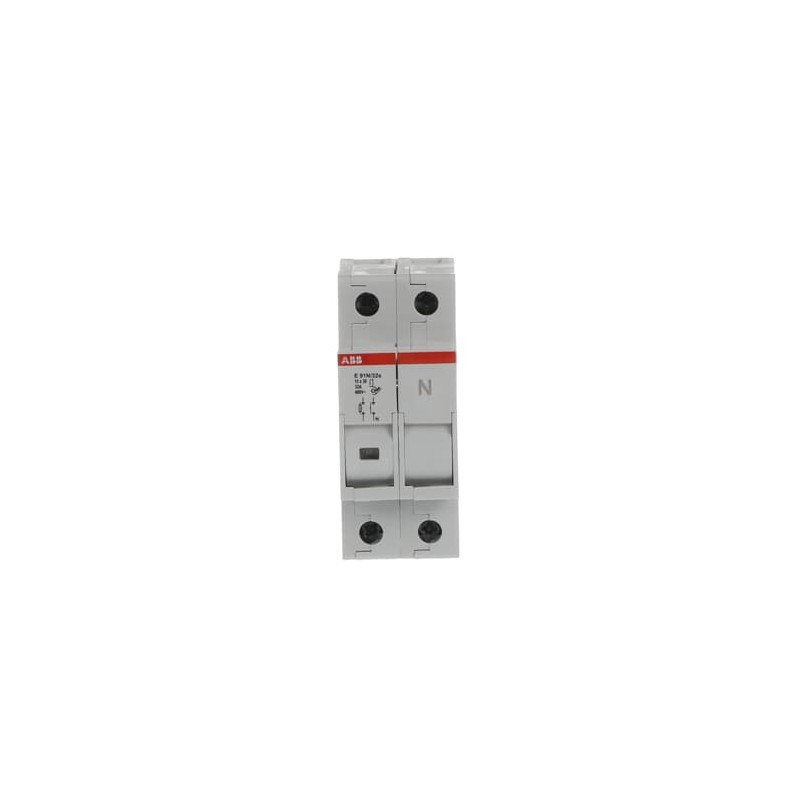

ABB 2CSM251503R1801 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSM251503R1801 ABB Fuse holder base E91N/32s 32A 1p+N ind

Code: 2CSM251503R1801

Manufacturer: ABB

Description:

Fuse holder base E91N/32s 32A 1p+N ind
E 91N/32s Fuse switch disconnector

Categories:

  • Circuit breakers and fuses > Holder for cylindrical fuse
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 17,94 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsRight
Tightening Torque2...2.5 N·m
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
Lock TypePadlockable When Open
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedWith LED
Recommended Screw DriverPozidriv 2
Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B
Connecting CapacityRigid 2x5 mm²
Stranded 2x2-5 mm²
Fuse Size10x38 mm
Operating Humidity (RHamb)max. 90% with temp. +20 °C
50% with max. temp. +40 °C
Rated Operational Current AC (Ie)32 A
Electrical
Rated Voltage (Ur)acc. To IEC 400 V
acc. To UL 690 V
Rated Operational VoltageAC-20B 690 V
|AC-22B 400 V
Rated Insulation Voltage (Ui)1 kV
Auxiliary Voltage AC/DCLED Indicator 24-1000 V
Rated Frequency (f)50/60 Hz
Power Lossat Rated Operating Conditions per Pole 3 W
Technical UL/CSA
Connecting Capacity UL/CSARigid 2x10 AWG
Stranded 2x14-10 AWG
Material Compliance
RoHS Declaration9AKK106713A5623
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date1/1/2014
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -5...+40 °C
Storage -25...+70 °C
Degree of ProtectionIP20
Maximum Operating Altitude Permissible2000 m
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 13 ms
Environmental InformationSee RoHS Information
Dimensions
Width in Number of Modular Spacings2
Product Net Width35 mm
Product Net Height85 mm
Product Net Depth / Length64 mm
Product Net Weight131 g
Built-In Depth (t2)64 mm
Ordering
Package Level 1 Unitsbox 3 piece
Package Level 1 Gross Weight0.396 kg
Certificates and Declarations
BV Certificate9AKK108467A0330
CCC Certificate9AKK108467A0340
Declaration of Conformity - CE9AKK106713A5623
IMQ Certificate9AKK108467A0324
KRS Certificate9AKK108467A0337
LR Certificate9AKK107991A7313
UL Certificate9AKK107992A1039
Installation
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information2CSC444002B0204
External Classifications and Standards
ETIM 9EC002705 - Holder for cylindrical fuse
ETIM 10EC002705 - Holder for cylindrical fuse
eClassV11.0 : 27142121
Object Classification CodeF
StandardsIEC 60947-3
Certification AgencyIMQ
BV
Korean register
CCC
EAC
Standardization BodyUL

ETIM for 2CSM251503R1801 Circuit breakers and fuses (EC002705)

Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameFor fuse size (EF008316)
Feature value10x38 mm
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueYes
Feature nameLockable (EF000113)
Feature valueYes
Feature nameWith optical defect indication (EF008181)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBuilt-in depth (EF000218)
Feature value64 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
