Images are for illustrative purposes only. Please refer to data sheet for details.

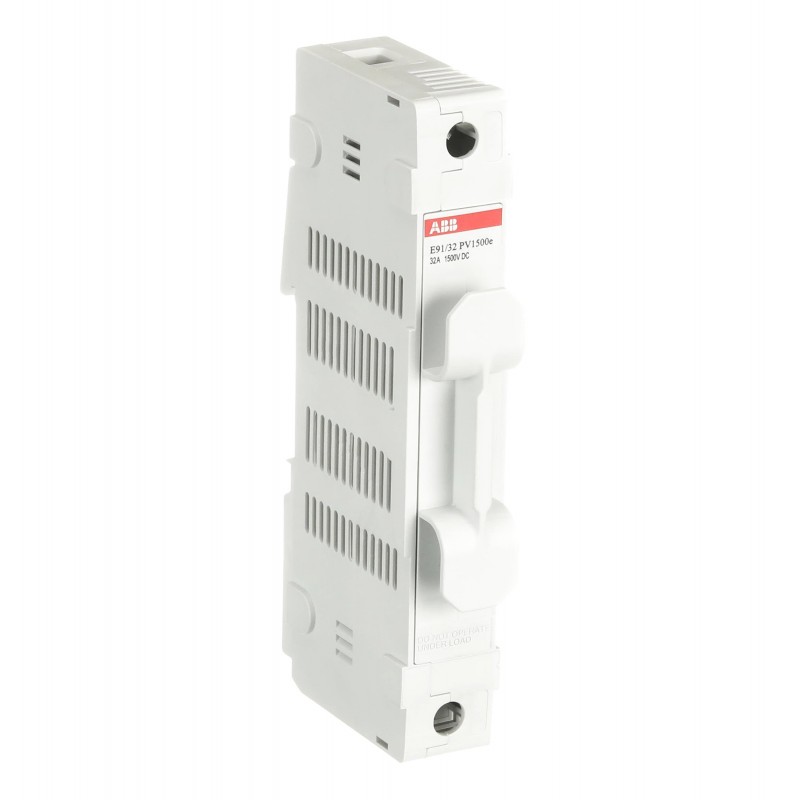

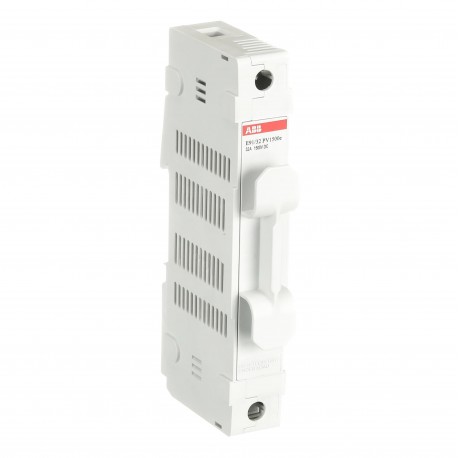

2CSM202041R1801 ABB Fuse holder base E91/32PV 1500e 32A 1p
Reference: 2CSM202041R1801
Manufacturer: ABB
Description:
Fuse holder base E91/32PV 1500e 32A 1p
E91/32 PV1500e Fuse holder
Categories:
- Circuit breakers and fuses > Holder for cylindrical fuse
- ABB > Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
- More Info
- Reviews
MORE INFO
| Technical | |
|---|---|
| Number of Poles | 1P |
| Tightening Torque | 2-2.5 N·m |
| Fuse Type | gPV |
| Lock Type | Non Padlockable |
| Material of Conductor | Copper |
| Remarks | For use with CU only 60°C, 75°C or 90°C wire |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Number of Batteries | 0 |
| Connecting Capacity | Stranded 0.75…25 mm² |
| Rigid 0.75…25 mm² | |
| Fuse Size | 10x85 mm |
| Operating Humidity (RHamb) | max. 90% at +20 °C |
| 50% at max. +40 °C | |
| Electrical | |
| Rated Voltage (Ur) | 1500 V DC |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Current (In) | 32 A |
| Power Loss | Total 6 W |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Stranded 14…10 AWG |
| Rigid 14…6 AWG | |
| Tightening Torque UL/CSA | 18-22 in·lb |
| Material Compliance | |
| RoHS Declaration | 9AKK107492A3751 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -5…85 °C |
| Storage -25…85 °C | |
| Degree of Protection | IP20 |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1.3 |
| Product Net Width | 22.5 mm |
| Product Net Height | 134 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 80 g |
| Built-In Depth (t2) | 65 mm |
| Ordering | |
| Package Level 1 Units | box 5 piece |
| Package Level 1 Gross Weight | 420 g |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107492A3751 |
| UL Certificate | 9AKK108467A0348 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| External Classifications and Standards | |
| ETIM 9 | EC002705 - Holder for cylindrical fuse |
| ETIM 10 | EC002705 - Holder for cylindrical fuse |
| UNSPSC | 39121624 |
| eClass | V11.0 : 27142121 |
| IDEA Granular Category Code (IGCC) | 4972 >> Fuse holder |
| Object Classification Code | F |
| Standards | IEC 60269-1 |
| UL 4248-19 | |
| Certification Agency | CCC |
| Standardization Body | UL |
