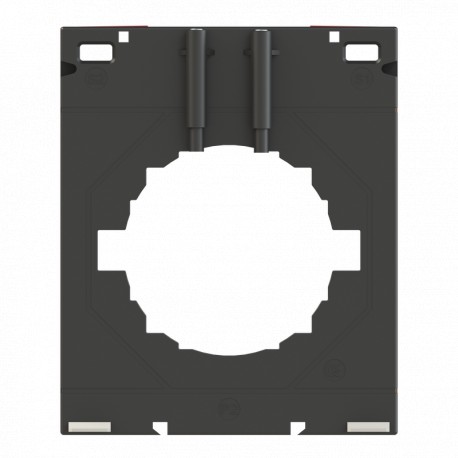

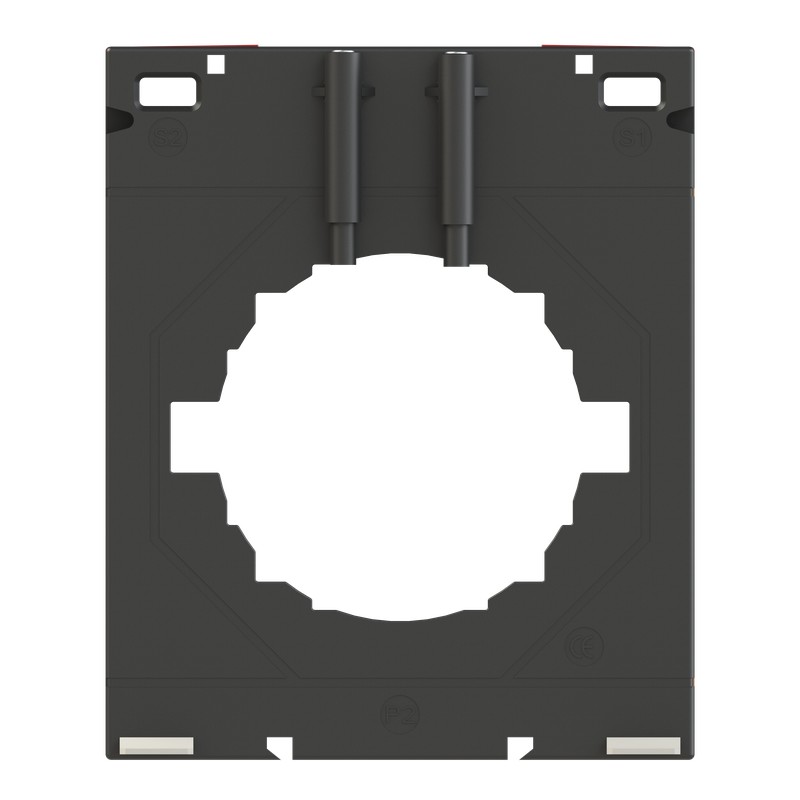

ABB 2CSG280425R1000 2CSG280425R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG280425R1000 ABB Intens transformer. CT1M-6 300

Reference: 2CSG280425R1000

Manufacturer: ABB

Description:

Intens transformer. CT1M-6 300

CT1M-6 300 Current Transformer

Categories:

Low-voltage industrial components > Current transformer
ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 49,44 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Cable Use	Cable and Horizantal/Vertical Bar
Rated Primary Current (I_pn)	300 A
Rated Secondary Current (I_sn)	5 A
Current Limit Function	FS 10
Accuracy	±0.5%
Number of Inputs	Primary 1
Cable Cross-Section	65 mm
Rated Cross-Section	80x10 mm
	60x30 mm
	50x50 mm
Electrical
Rated Frequency (f)	50 … 60 Hz
Material Compliance
RoHS Declaration	9AKK108470A7636
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20250213
REACH Declaration	9AKK108467A9482
REACH Information	True - contains substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Consumer
Environmental
Degree of Protection	IP20
Dimensions
Product Net Width	104 mm
Product Net Height	126 mm
Product Net Depth / Length	45 mm
Product Net Weight	0.67 kg
Dimension Diagram	9AKK108470A9326
Ordering
Package Level 1 Units	box 1 piece
Package Level 1 Gross Weight	0.67 kg
E-Number (Finland)	6719101
Replacement Product ID (NEW)	2CSG421140R1101
Certificates and Declarations
Declaration of Conformity - CE	9AKK108470A7636
Installation
Instructions and Manuals	9AKK108470A3838
Mounting Type	Through Primary
External Classifications and Standards
ETIM 9	EC002048 - Current transformer
ETIM 10	EC002048 - Current transformer
