ABBAER and Transformers2CSG236831R4051 ABB M4M 20 BACNET Network Analyzer

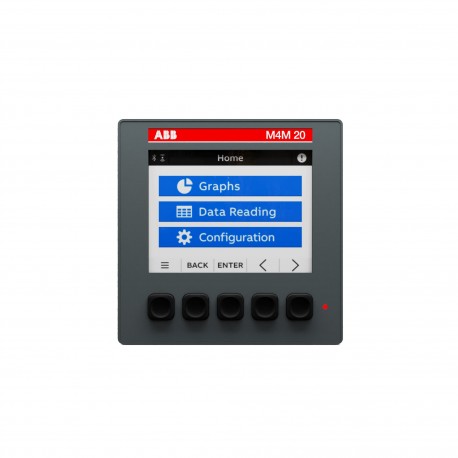

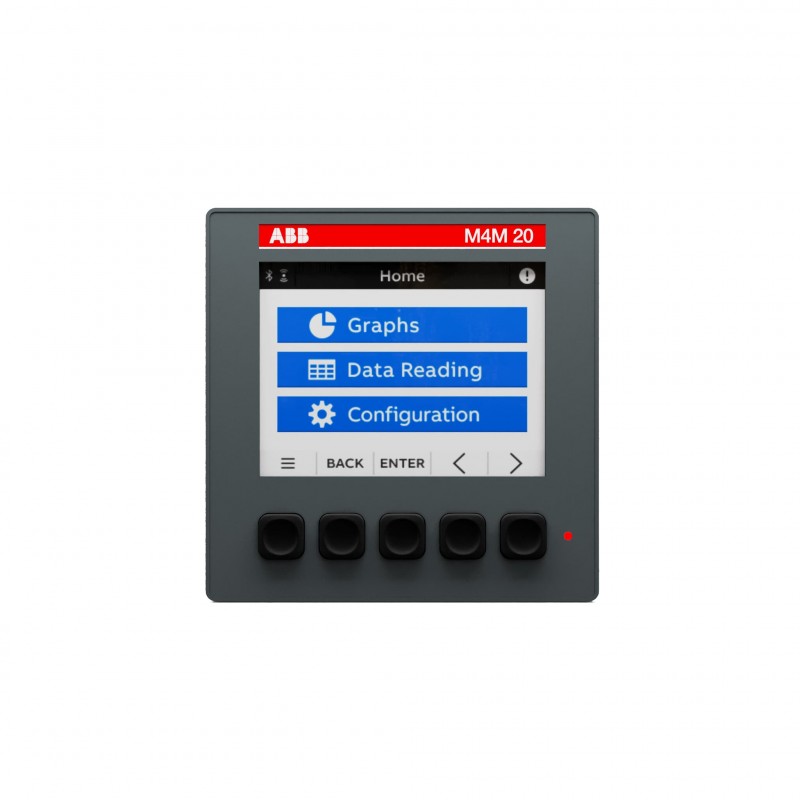

ABB 2CSG236831R4051 2CSG236831R4051 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG236831R4051 ABB M4M 20 BACNET Network Analyzer

Reference: 2CSG236831R4051

Manufacturer: ABB

Description:

M4M 20 BACNET Network Analyzer

Categories:

  • Meters > Kilowatt-hour meter
  • ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 371,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108470A1669
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 54.85 %
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 22 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Process Efficiency - Product improves/optimizes process
Process Efficiency - Product contribute to making customer’s operations more resilient and reliable
Process Efficiency - Product contribute to reducing customer operations environmental footprint
Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset
Extended Product LifetimeProduct Upgradability
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
End Of Life Disassembling Instructions9AKK108470A0840
Environmental Product Declaration - EPD9AKK108469A8099
Technical
Current Rating5 A
AccuracyActive Energy ±0.5%
Measuring Instrument ConformityDomestic
Pulse Output Rate1 … 999999
Model NumberMeasurement transformer
Number of Poles3P or 4P
Number of Phases3-phase
Number of Counter Positions8
Number of Digital In/Outputs2 Digital Outputs
Energy Meter TypeEffective Power
Blind Power
Meter TypeTransformer connected
Type of IndicatorDigital
Additional InformationCT (1A, 5A)
CommunicationBACnet/IP, Bluetooth
Electrical
Rated Voltage (Ur)3 x 230 (400) V
Voltage Range50 … 400 V
Rated Current (In)5 A
Maximum 6 A
Frequency (f)50 … 60 Hz
Power Consumption (@Pcons)10 V·A
Material Compliance
RoHS Declaration9AKK107680A0174
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250314
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20230117
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25 ... 70 °C
Degree of ProtectionIP54
Dimensions
Width in Number of Modular Spacings5.5
Product Net Width96 mm
Product Net Height96 mm
Product Net Depth / Length77 mm
Product Net Weight328 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.589 kg
E-Number (Finland)6701079
E-Number (Norway)8002551
Certificates and Declarations
Declaration of Conformity - CE9AKK108467A6267
EU Data Act Compliance Declaration9AKK108471A5057
Installation
Instructions and Manuals2CSG445030D0201
Mounting TypeFront Panel
Popular Downloads
Data Sheet, Technical Information9AKK107992A0896
External Classifications and Standards
ETIM 9EC001506 - Kilowatt-hour meter
ETIM 10EC001506 - Electricity meter
eClassV11.0 : 27142316
Object Classification CodeP

ETIM for 2CSG236831R4051 Meters (EC001506)

Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameNominal current (In) (EF008873)
Feature value6 A
Feature nameMax. current (Imax) (EF000877)
Feature value6 A
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature namePole type (EF008843)
Feature valueThree conductor/four conductor
Feature nameModel (EF000010)
Feature valueMeasurement transformer
Feature nameEnergy type (EF007135)
Feature valueEffective power and reactive power
Feature nameMeasurement type load profile (EF008844)
Feature valueNo
Feature nameEscapement mechanism (EF008835)
Feature valueYes
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameApproval (EF008837)
Feature valueDomestic
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameWidth in number of modular spacings (EF002950)
Feature value5.5
Feature nameWidth (EF000008)
Feature value96 mm
Feature nameDepth (EF000049)
Feature value77 mm
Feature nameHeight (EF000040)
Feature value96 mm
Feature nameEEC40 signature (EF008845)
Feature valueNo
Feature nameWith lock code (EF008846)
Feature valueNo
Feature nameNumber of positions total (counter) (EF004442)
Feature value8
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54

DATASHEET - PDF

Title
Size
Type
2CSG236831R4051 2CSG236831R4051 EN_2CSG236831R4051.pdf
172 Kbytes
PDF ENERGY EFICIENCY EN
12 Mbytes
