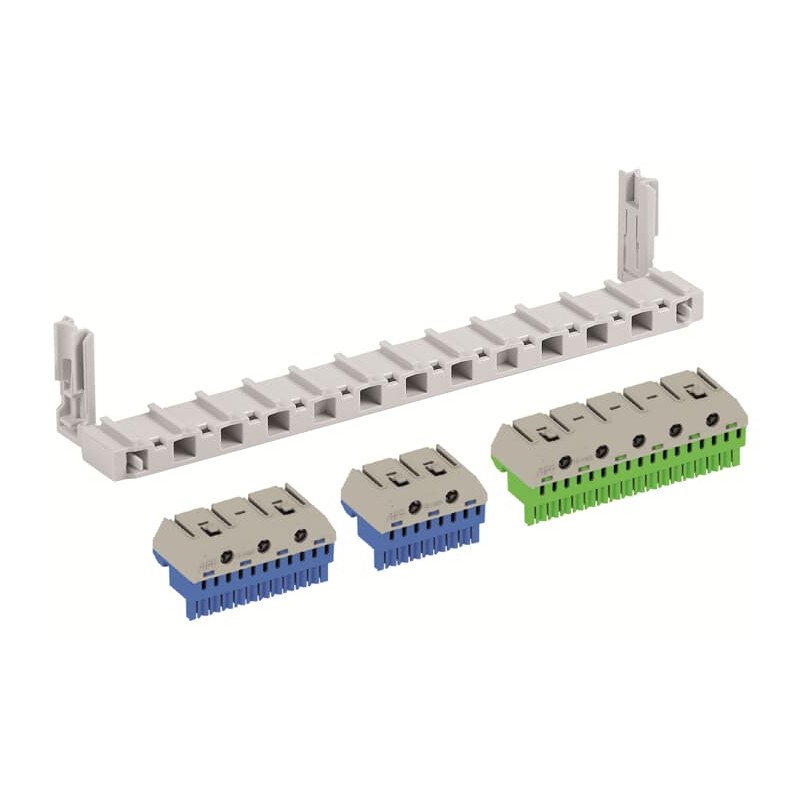

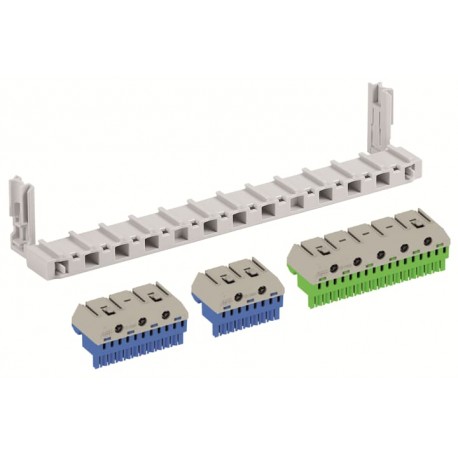

2CPX063132R9999 ABB Set of N/T strips for U
Code: 2CPX063132R9999
Manufacturer: ABB
Description:
Set of N/T strips for U
ComfortLine Compact accessories Terminals, 71 mm x 213 mm x 52 mm
Categories:
- ABB > Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Technical | |
|---|---|
| Number of Poles | 3P |
| Number of Clamp Positions | 46 |
| Number of Line Terminals | 46 |
| Accessory Type | terminals |
| Enclosure Type | Terminals |
| Meter Type | " |
| Accessories Available | No |
| Rated Cross-Section | 2 - Fine-Strand with Cable End Sleeve 1.5...25 mm² |
| Terminal Type | Quick-Terminal |
| Cross-Section (Across) | Conductor Flexible with Cable End Sleeve 1.5...25 mm² |
| Conductor Solid-Stranded 1.5...25 mm² | |
| Nominal 1.5...25 mm² | |
| Electrical | |
| Rated Operational Voltage | Maximum 230 V |
| Operational Voltage | 230 V |
| Rated Current (In) | 63 A |
| Material Compliance | |
| RoHS Declaration | 2CPC100012X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20251118 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 213 mm |
| Product Net Height | 71 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 0.216 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.224 kg |
| Replacement Product ID (NEW) | 2CPX052697R9999 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100012X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130114M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000446 - Push in terminal |
| ETIM 10 | EC000446 - Push in terminal |
| Object Classification Code | U |
