ABBBoxes and cabinets2CPX052194R9999 ABB CA38V Arm.superf.288mod(125mm) pta.met.

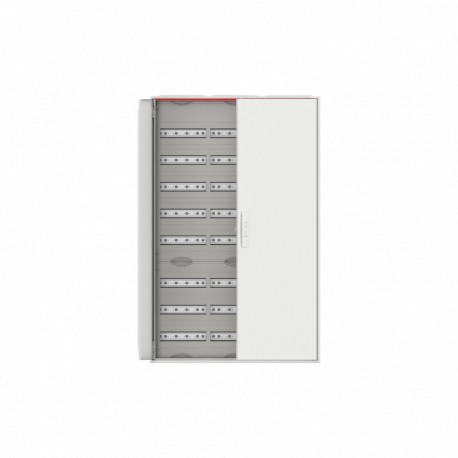

ABB 2CPX052194R9999 2CPX052194R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

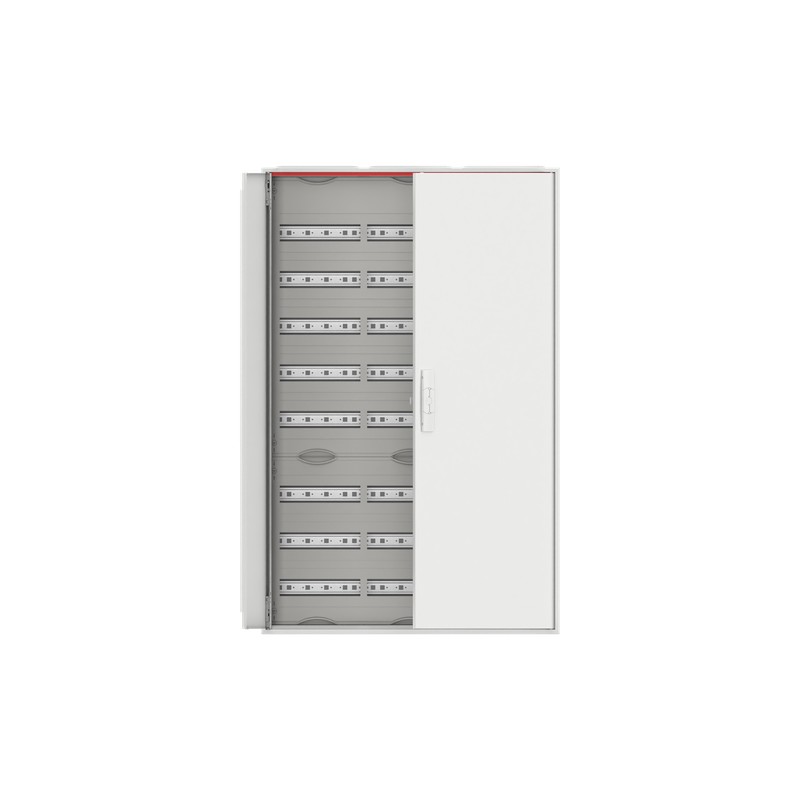

2CPX052194R9999 ABB CA38V Arm.superf.288mod(125mm) pta.met.

Reference: 2CPX052194R9999

Manufacturer: ABB

Description:

CA38V Arm.superf.288mod(125mm) pta.met.
ComfortLine Compact distribution board, Surface mounting, 288 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 88, 1250 mm x 800 mm x 160 mm

Categories:

  • Distribution boards > Small distribution board
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 676,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Number of EntrancesSocket Outlet 0
Number of Rows88
Closure TypeTurn Handle
Configuration TypeAssembled with distribution module
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Meter Type"
Door TypeDouble
Accessories AvailableYes
DIN Place Units288
Terminal TypeQuick-Terminal
Impact Resistance RatingIK07
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Current (In)125 A
Power LossΔt = 20K 93.8 W
Δt = 25K 123.9 W
Δt = 30K 146.3 W
Total 93.8 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules288
Material Compliance
RoHS Declaration2CPC100012X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP44
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings36
Product Net Width800 mm
Product Net Height1250 mm
Product Net Depth / Length160 mm
Product Net Weight34.121 kg
Section Width3
Built-In Depth (t2)0 mm
Dimension Diagram2CPC000012D0201
Engineering
EPLAN Data9AAF603718_EPLAN
Building Information Modeling – BIM9AKK107680A4427
9AKK107680A4426
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight35.486 kg
E-Number (Norway)2414613
E-Number (Sweden)2300377
Certificates and Declarations
Declaration of Conformity - CE2CPC100012X0201
Installation
Instructions and Manuals2CPC130114M5601
2CPC133150M5601
Mounting TypeSurface mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
eClassV11.0 : 27142409
Object Classification CodeU
StandardsDIN EN 61439-3

ETIM for 2CPX052194R9999 Distribution boards (EC000214)

Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNumber of rows (EF000266)
Feature value8
Feature nameWidth in number of modular spacings (EF002950)
Feature value36
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameHeight (EF000040)
Feature value1250 mm
Feature nameWidth (EF000008)
Feature value800 mm
Feature nameDepth (EF000049)
Feature value160 mm
Feature nameBuilt-in depth (EF000218)
Feature value0 mm
Feature nameBuilt-in height (EF000332)
Feature value0 mm
Feature nameBuilt-in width (EF000846)
Feature value0 mm
Feature nameInner depth (EF001131)
Feature value152 mm
Feature nameEarthing terminal block (EF015776)
Feature valueYes
Feature nameNeutral terminal block (EF015777)
Feature valueYes
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameRAL-number (EF000116)
Feature value9016
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameType of closure (EF004462)
Feature valueOther
Feature nameSignal passing door (EF015941)
Feature valueNo
