ABBBoxes and cabinets2CPX039383R9999 ABB ED3 DIN Profile 35x15, (3 widths)

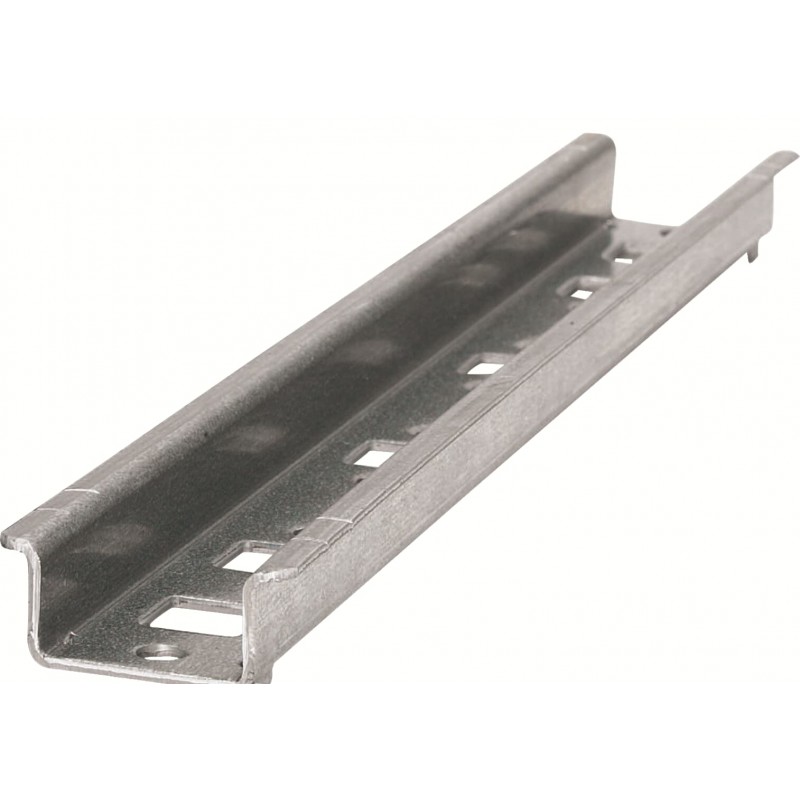

ABB 2CPX039383R9999 2CPX039383R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX039383R9999 ABB ED3 DIN Profile 35x15, (3 widths)

Reference: 2CPX039383R9999

Manufacturer: ABB

Description:

ED3 DIN Profile 35x15, (3 widths)
Mounting rail, 35 mm x 744 mm x 15 mm

Categories:

  • Energy distribution systems > Mounting rail
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Model NumberDIN rail (top hat rail) 35/15 mm
Enclosure TypeMounting rail
Meter Type"
DIN Place Units0
Meter Boards0
Design
ShapeSquare hole
Surface FinishingSendzimir galvanized
MaterialSteel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width744 mm
Product Net Height35 mm
Product Net Depth / Length15 mm
Product Net Weight0.47 kg
Thickness1.5 mm
Engineering
EPLAN Data9AAF623180_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.489 kg
E-Number (Norway)2444486
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001285 - Mounting rail
ETIM 10EC001285 - Mounting rail for electrical/industrial control equipment
eClassV11.0 : 27400602
Object Classification CodeU

ETIM for 2CPX039383R9999 Power distribution systems (EC001285)

Feature nameModel (EF000010)
Feature valueDIN rail (top hat rail) 35/15 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface protection (EF000139)
Feature valueHot dip galvanized
Feature namePunch shape (EF001457)
Feature valueSquare hole
Feature nameMaterial thickness (EF000386)
Feature value1.5 mm
Feature nameLength (EF001438)
Feature value15 mm
Feature nameHeight (EF000040)
Feature value35 mm

DATASHEET - PDF

Title
Size
Type
2CPX039383R9999 2CPX039383R9999 EN_2CPX039383R9999.pdf
94 Kbytes
PDF CATALOG ABB ELECTRICAL CONSUMER EN
14 Mbytes
