ABBOther modular devices2CMA241725R1000 ABB Ener counter. trif. D13 15 65A

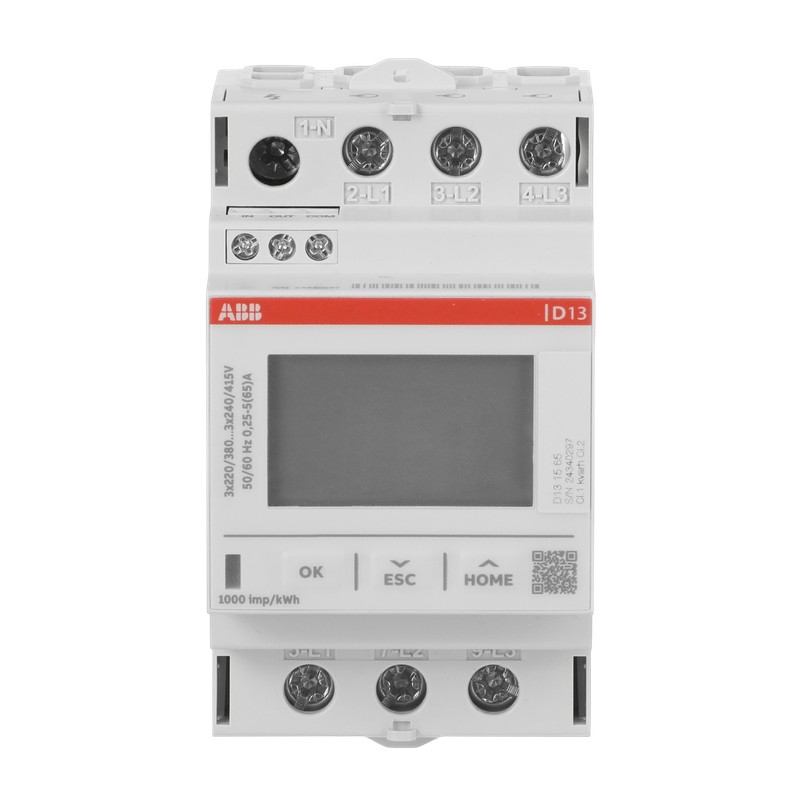

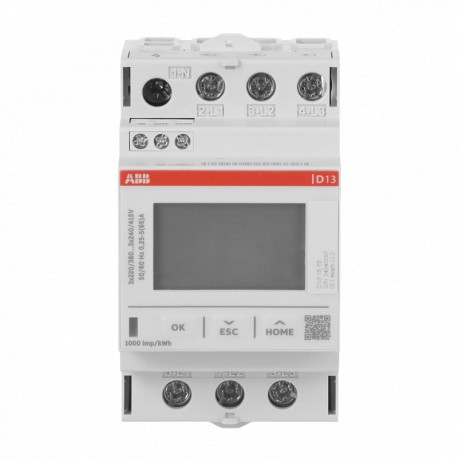

ABB 2CMA241725R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CMA241725R1000 ABB Ener counter. trif. D13 15 65A

Code: 2CMA241725R1000

Manufacturer: ABB

Description:

Ener counter. trif. D13 15 65A
Energy meter '15', Other, 3-phase, 65 A

Categories:

  • Meters > Kilowatt-hour meter
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 199,92 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108469A6253
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 48.17 %
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 22.2 %
Sustainable Material Content in Product (wt. %)Recycled Metal - 26 %
Mechanically Recycled Polymer - 70 %
Recycled Metal - 76 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)FSC Recycled Paperboard - 82 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Offered with Takeback ServicesTake Back for Recycling
End Of Life Disassembling Instructions9AKK108469A4844
Environmental Product Declaration - EPD9AKK108469A4516
Technical
ApplicationPurchase/supply
FunctionElectricity meter
Sub-Function15
Current Rating65 A
Communication InterfaceOther
AccuracyActive Energy Class ±1%
Measuring Instrument ConformityIEC 62053-22
Meter Tariff ControlInternal
External
Meter Tariff RatingMulti-Tariff
Pulse Output Rate1-999999
Model NumberDirect measurement
Number of Poles4P
Number of Phases3-phase
Number of Counter Positions7
Number of Digital In/Outputs1 Digital Input, 1 Digital Output
Meter TypeDirect connected
Pulse Output TypeElectrical
Type of IndicatorDigital
Number of Batteries0
Connecting Capacity Main Circuit1 ... 25 mm²
Electrical
Rated Voltage (Ur)3x220 ... 240 V
Voltage Range3x176...288 V
Rated Current (In)5 A
Maximum 65 A
Frequency (f)50 / 60 Hz
Rated Frequency (f)50 … 60 Hz
Power Consumption (@Pcons)0.82 W
Design
Enclosure MaterialHousing and terminal covers: made with at least 70% of recycle plastic Frontal Panel: UV resistant Polyester
Material Compliance
RoHS Declaration9AKK108469A1599
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240730
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240521
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation  -40 ... +70 °C
Storage -40 ... +85 °C
Degree of ProtectionIP20
Dimensions
Width in Number of Modular Spacings3
Product Net Width52.5 mm
Product Net Height97 mm
Product Net Depth / Length65 mm
Product Net Weight250 g
Screen Size1.65 in
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight0.272 kg
E-Number (Norway)8002571
Installation
Instructions and Manuals9AKK108469A1075
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK108468A8827
External Classifications and Standards
ETIM 9EC001506 - Kilowatt-hour meter
ETIM 10EC001506 - Electricity meter
eClassV11.0 : 27142316
StandardsIEC 62052-11
IEC 62052-31
IEC 62053-21
IEC 62052-23

ETIM for 2CMA241725R1000 Meters (EC001506)

Feature nameType of meter (EF005441)
Feature valueElectronic
Feature nameNominal current (In) (EF008873)
Feature value65 A
Feature nameMax. current (Imax) (EF000877)
Feature value65 A
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature namePole type (EF008843)
Feature valueFour conductor
Feature nameModel (EF000010)
Feature valueDirect measurement
Feature nameTariff type (EF007550)
Feature valueMulti-tariff
Feature nameTariff control (EF008834)
Feature valueInternal/external
Feature namePulse output (EF008838)
Feature valueElectrical
Feature namePulse type (EF008839)
Feature valueS0
Feature nameType of indication (EF000306)
Feature valueDigital
Feature nameMounting method (EF000003)
Feature valueDRA (DIN-rail adapter)
Feature nameWidth in number of modular spacings (EF002950)
Feature value3
Feature nameWidth (EF000008)
Feature value52.5 mm
Feature nameDepth (EF000049)
Feature value65 mm
Feature nameHeight (EF000040)
Feature value97 mm
Feature nameType of interface (EF006977)
Feature valueOther
Feature nameWith lock code (EF008846)
Feature valueYes
Feature nameNumber of positions total (counter) (EF004442)
Feature value7
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
